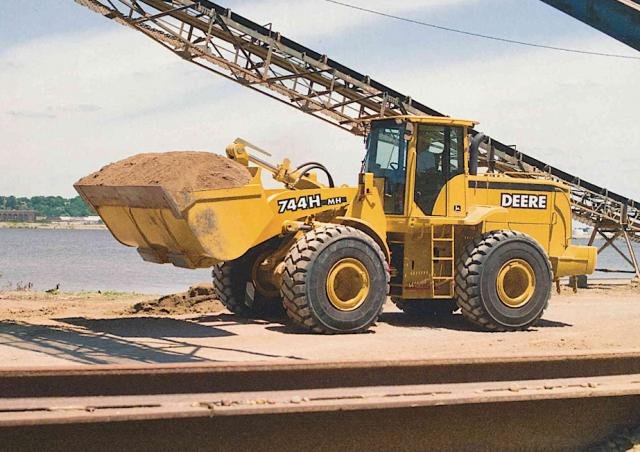

John Deere 744H High Lift

Series: John Deere Wheel Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The John Deere Wheel Loader series from John Deere includes the 744H High Lift. The engine delivers 286.9 hp (193.9 kW), has 6 cylinders, with a displacement of 12,552.5 cm³. Torque is 1,278.5 Nm. Rated speed is 2,000 rpm. The unladen weight is 23,257.9 kg. The wheelbase measures 3,401.6 mm. Ground clearance is 466.3 mm. The tank holds 431.5 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 393.7 l/min. The hydraulic tank holds 143.8 litres. The cooling system holds 43.2 litres. The electrical system runs on 24 V. The engine fitted is the 6125A. Tyre size: 26,5-25. The John Deere Wheel Loader series covers 120 models. Rated output within it ranges from 55.8 to 286.9 hp; the 744H High Lift sits at the top of that range with 286.9 hp. Its immediate neighbours are the 744E below it with 263.6 hp. 2153 John Deere models across 96 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine model6125Acorrect
Power286.9 hp (193.9 kW)correct
Rated speed2,000 rpmcorrect
Torque1,278.5correct
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement12,552.5 cm³correct
AspirationTurbocharged and Aftercooledcorrect
Coolant capacity43.2 lcorrect

Dimensions and weights

Wheelbase3,401.6correct
Ground clearance466.3correct
Unladen weight23,257.9 kgcorrect

Drivetrain and chassis

Gearbox typePower Shiftcorrect
Forward gears4correct
Reverse gears3correct
Tyre size26.5-25correct
System voltage24 Vcorrect

Working data

Pump flow393.7 l/mincorrect
Hydraulic oil capacity143.8 lcorrect
Fuel tank capacity431.5 lcorrect

Other data

Height3,520.4correct

Where this model stands

Power-to-weight ratio: 8.3 kW/t (194 kW / 23.3 t)

Stronger than 84% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the John Deere 744H High Lift have?

The John Deere 744H High Lift delivers 287 hp.

How much does the John Deere 744H High Lift weigh?

The unladen weight is 23,258 kg.

What engine does the John Deere 744H High Lift have?

6 cylinders, 12,552 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
