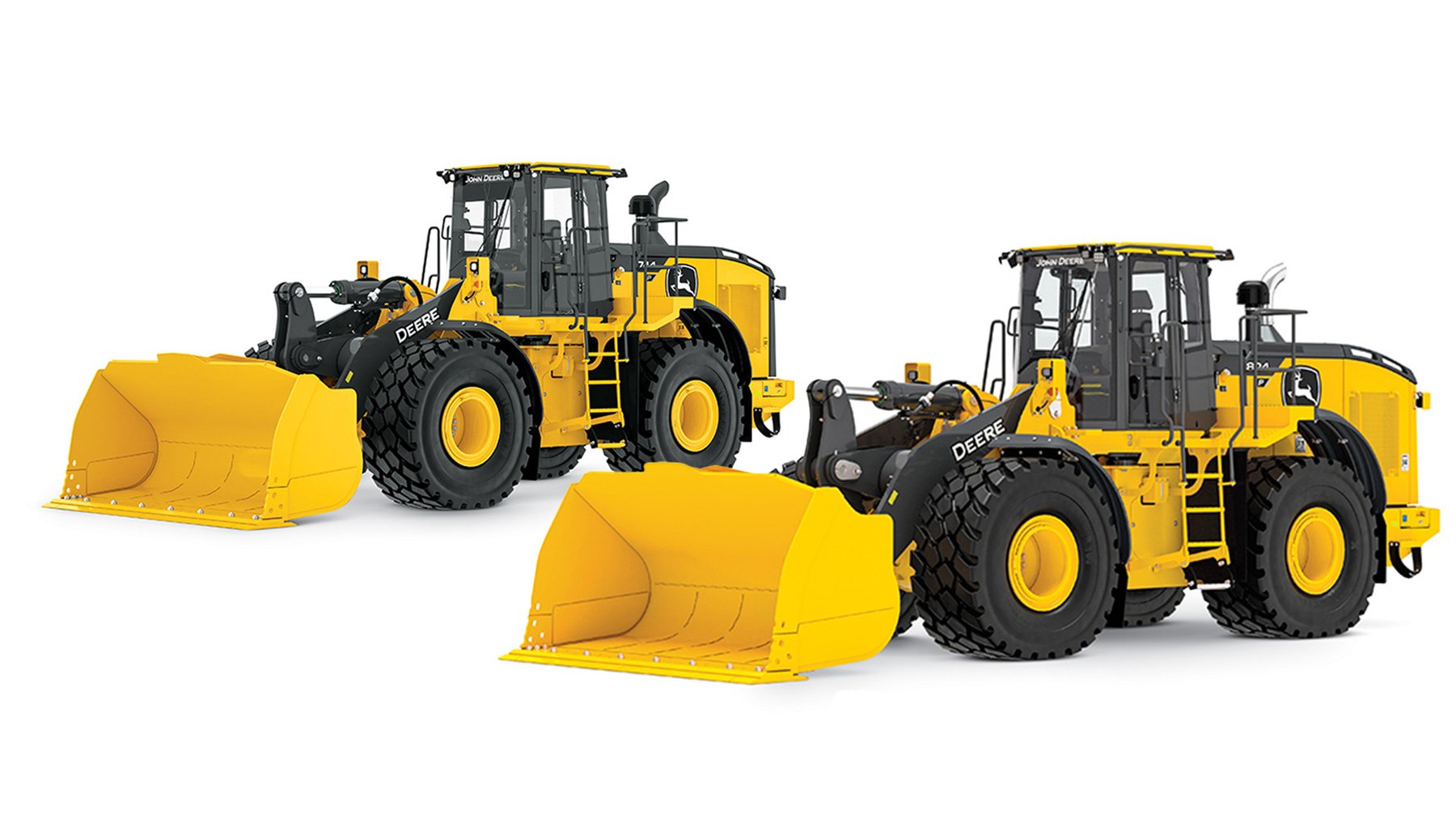

John Deere 644EH

Series: John Deere Wheel Loader

Source: https://www.wirtgen-group.com/ocs/de-nl/john_deere/radlader-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 644EH from John Deere is part of the John Deere Wheel Loader series. The engine delivers 195.7 hp (138 kW), has 6 cylinders, with a displacement of 7,636.4 cm³. Torque is 705 Nm. Rated speed is 2,200 rpm. The unladen weight is 16,014.5 kg. The wheelbase measures 3,200.4 mm. Ground clearance is 502.9 mm. The tank holds 283.9 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 247.9 l/min. The hydraulic tank holds 115.1 litres. The cooling system holds 28.8 litres. The electrical system runs on 12 V. The engine fitted is the 6076A. Tyre size: 20,5-25. The John Deere Wheel Loader series covers 120 models. Rated output within it ranges from 55.8 to 286.9 hp; the 644EH sits in the upper part of that range with 195.7 hp. Its immediate neighbours are the 624H Waste Handler below it with 174.4 hp and the 644GH above it with 198.7 hp. 2153 John Deere models across 96 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine model6076Acorrect
Power195.7 hp (138 kW)correct
Rated speed2,200 rpmcorrect
Torque705correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement7,636.4 cm³correct
Aspirationturbochargedcorrect
Coolant capacity28.8 lcorrect

Dimensions and weights

Wheelbase3,200.4correct
Ground clearance502.9correct
Unladen weight16,014.5 kgcorrect

Drivetrain and chassis

Gearbox typePower Shiftcorrect
Forward gears4correct
Reverse gears3correct
Tyre size20.5-25correct
System voltage12 Vcorrect

Working data

Pump flow247.9 l/mincorrect
Hydraulic oil capacity115.1 lcorrect
Fuel tank capacity283.9 lcorrect

Other data

Height3,401.6correct

Where this model stands

Power-to-weight ratio: 8.6 kW/t (138 kW / 16 t)

Stronger than 69% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the John Deere 644EH have?

The John Deere 644EH delivers 196 hp.

How much does the John Deere 644EH weigh?

The unladen weight is 16,014 kg.

What engine does the John Deere 644EH have?

6 cylinders, 7,636 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
