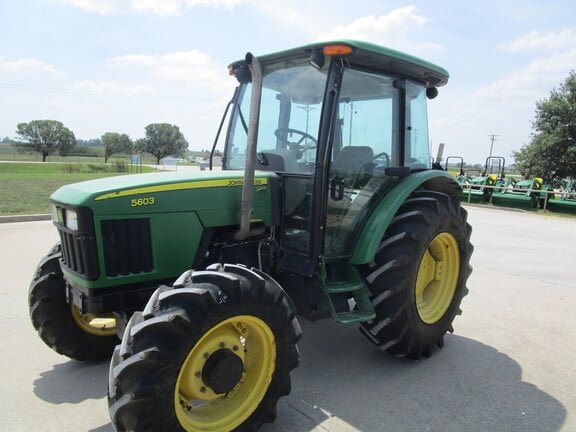

John Deere 5603 MFWD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the John Deere 5603 belongs to the John Deere MFWD Tractor series. Under the bonnet works a four-cylinder engine displacing 4.5 litres, producing 101 hp (74 kW). Rated power is reached at 2,400 rpm.
Wheelbase is 2.18 m.
Within the range, rated power spans from 64.9 to 335 hp; with 101 hp, the 5603 sits in the mid-field. Directly alongside are the 6320 with 100 hp below and the 6415 with 101 hp above.
Technical data
Engine
| Engine model | 4,045correct |
|---|---|
| Power | 100.7 hp (74 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,522.8 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Wheelbase | 2,179.3correct |
|---|
Drivetrain and chassis
| Gearbox type | Power Reversercorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
Working data
| Pump flow | 60.2 l/mincorrect |
|---|---|
| Fuel tank capacity | 126.8 lcorrect |
Frequently asked questions
How much power does the John Deere 5603 have?
The John Deere 5603 delivers 101 hp.
What engine does the John Deere 5603 have?
4 cylinders, 4,523 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
