John Deere 5525 Narrow 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

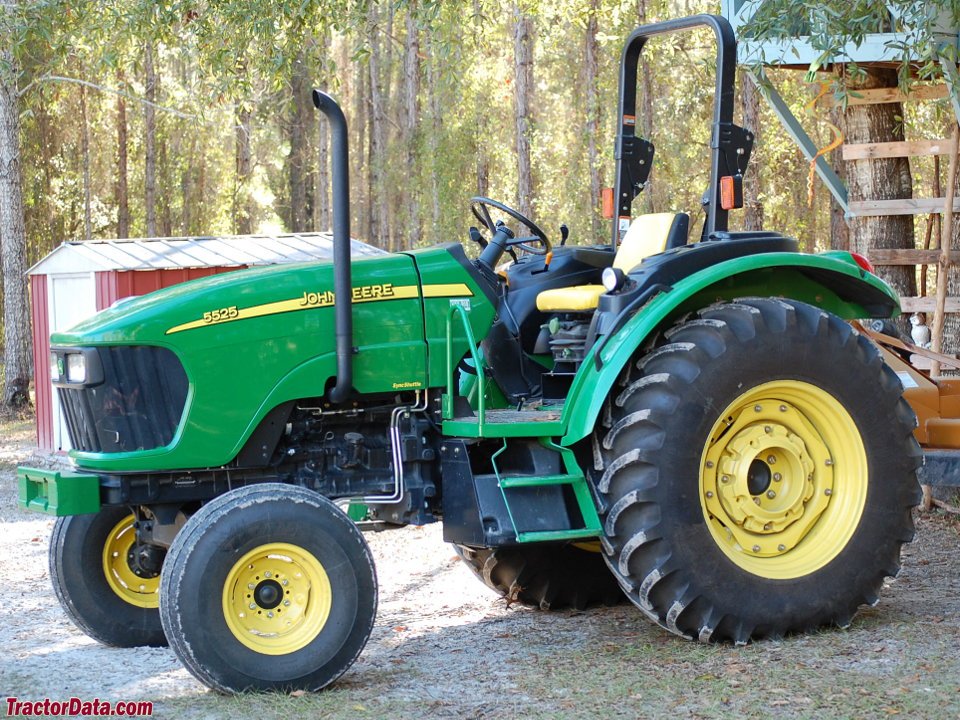

The John Deere 5525 Narrow is a tractor from the John Deere 2WD Tractor series. Power comes from a four-cylinder engine; from 4.5 litres it draws 92 hp (67.9 kW). Rated output is reached at 2,400 rpm, so it works in the lower rev range.
Wheelbase is 2.18 m.
Within the range, rated power spans from 64.9 to 578 hp; with 92.3 hp, the 5525 Narrow sits in the lower third. Directly alongside are the 6220 with 91.2 hp below and the 5525 Utility with 92.5 hp above.
Technical data
Engine
| Power | 92.3 hp (67.9 kW)correct |
|---|---|
| Rated speed | 2,400 rpmcorrect |
| Torque | 310.5correct |
| Speed at max. torque | 1,401 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,501.5 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Wheelbase | 2,179.3correct |
|---|
Drivetrain and chassis
| Gearbox type | 12F/12R PowrReversercorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
Working data
| Pump flow | 94.6 l/mincorrect |
|---|---|
| Fuel tank capacity | 71.9 lcorrect |
Frequently asked questions
How much power does the John Deere 5525 Narrow have?
The John Deere 5525 Narrow delivers 92.3 hp.
What engine does the John Deere 5525 Narrow have?
4 cylinders, 4,502 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
