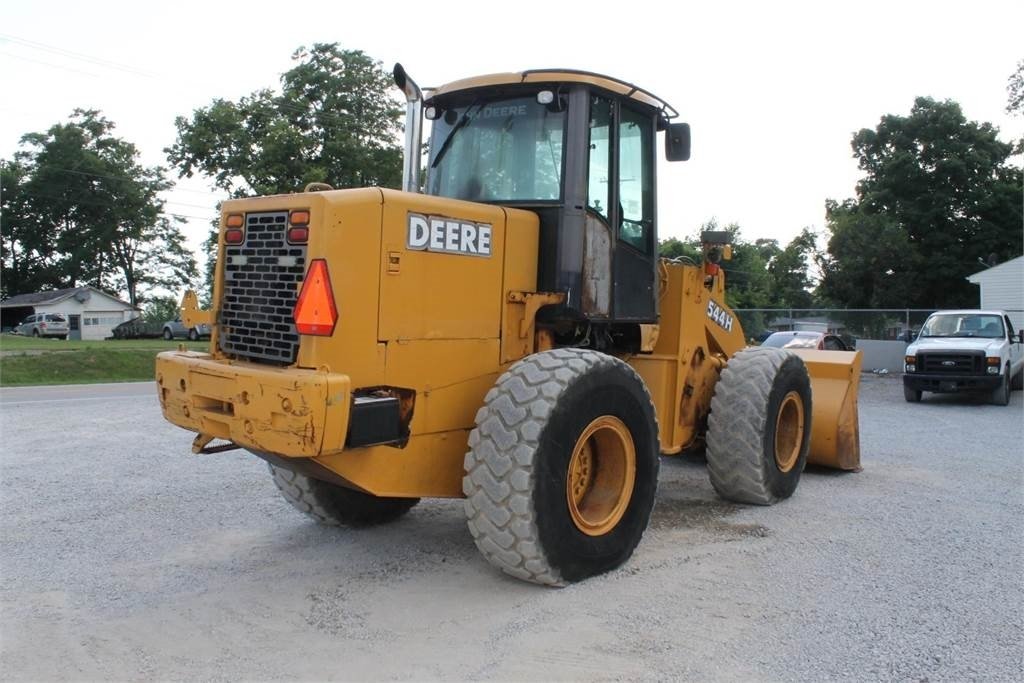

John Deere 544EH

Series: John Deere Wheel Loader

Source: https://www.ritchielist.com/construction/wheel-loaders-wheel

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The John Deere Wheel Loader series from John Deere includes the 544EH. The engine delivers 131.8 hp (93.2 kW), has 6 cylinders, with a displacement of 5,883 cm³. Torque is 504.4 Nm. Rated speed is 2,200 rpm. The unladen weight is 10,606.8 kg. The wheelbase measures 2,901.7 mm. Ground clearance is 457.2 mm. The tank holds 208.2 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 175.3 l/min. The hydraulic tank holds 76.1 litres. The cooling system holds 24.2 litres. The electrical system runs on 12 V. The engine fitted is the 6359T. Tyre size: 17,5-25. The John Deere Wheel Loader series covers 120 models. Rated output within it ranges from 55.8 to 286.9 hp; the 544EH sits in the lower part of that range with 131.8 hp. Its immediate neighbours are the 544 below it with 126.7 hp and the 544H above it with 139.9 hp. 2153 John Deere models across 96 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine model6359Tcorrect
Power131.8 hp (93.2 kW)correct
Rated speed2,200 rpmcorrect
Torque504.4correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement5,883 cm³correct
Aspirationturbochargedcorrect
Coolant capacity24.2 lcorrect

Dimensions and weights

Wheelbase2,901.7correct
Ground clearance457.2correct
Unladen weight10,606.8 kgcorrect

Drivetrain and chassis

Gearbox typePower Shiftcorrect
Forward gears4correct
Reverse gears3correct
Tyre size17.5-25correct
System voltage12 Vcorrect

Working data

Pump flow175.3 l/mincorrect
Hydraulic oil capacity76.1 lcorrect
Fuel tank capacity208.2 lcorrect

Other data

Height3,212.6correct

Where this model stands

Power-to-weight ratio: 8.8 kW/t (93 kW / 10.6 t)

Stronger than 47% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the John Deere 544EH have?

The John Deere 544EH delivers 132 hp.

How much does the John Deere 544EH weigh?

The unladen weight is 10,607 kg.

What engine does the John Deere 544EH have?

6 cylinders, 5,883 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
