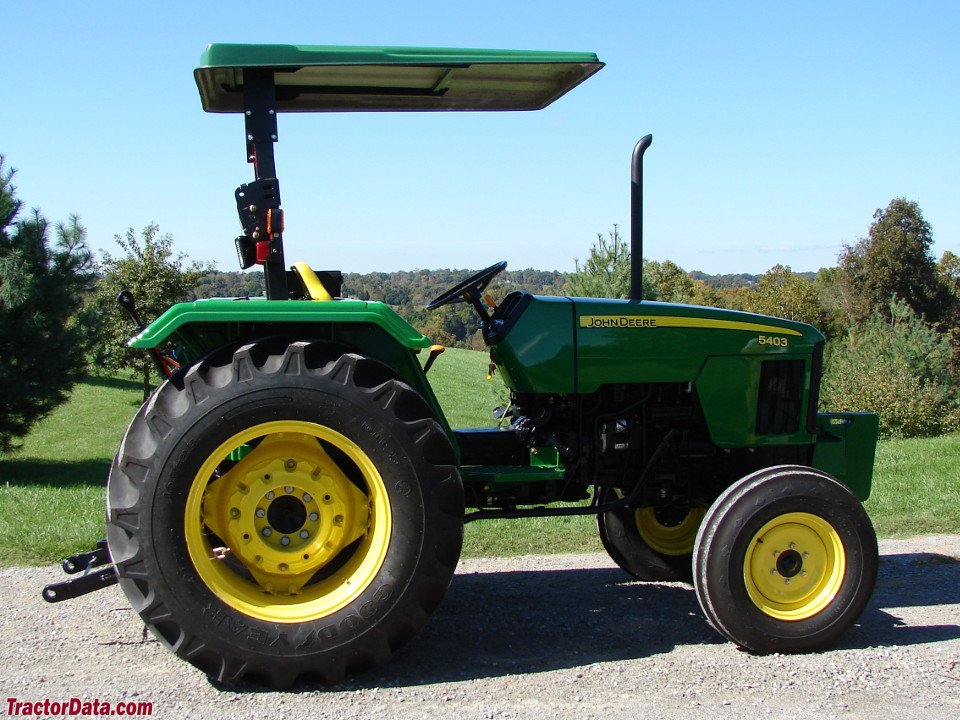

John Deere 5403 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The John Deere 5403 is a tractor from the John Deere 2WD Tractor series. Power comes from a three-cylinder engine; from 2.9 litres it draws 75 hp (55.2 kW). Rated speed is 2,400 rpm.
Wheelbase is 2.05 m.
Within the range, rated power spans from 64.9 to 578 hp; with 75 hp, the 5403 sits at the bottom end. Directly alongside are the 5325 Utility with 68 hp below and the 5075E with 76 hp above.
Technical data
Engine
| Power | 75 hp (55.2 kW)correct |
|---|---|
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,933.3 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Wheelbase | 2,051.3correct |
|---|
Drivetrain and chassis
| Gearbox type | SyncReversercorrect |
|---|---|
| Forward gears | 9correct |
| Reverse gears | 3correct |
Working data
| Fuel tank capacity | 72.3 lcorrect |
|---|
Frequently asked questions
How much power does the John Deere 5403 have?
The John Deere 5403 delivers 75 hp.
What engine does the John Deere 5403 have?
3 cylinders, 2,933 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: [1]
