John Deere 5325 Narrow 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

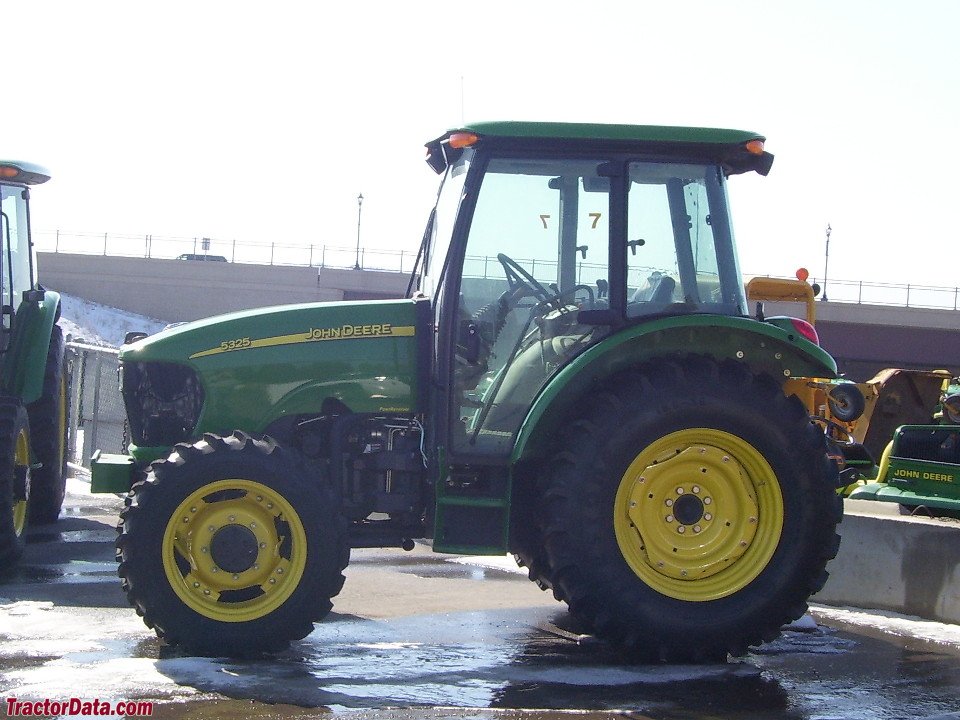

The John Deere 5325 Narrow is a tractor from the John Deere 2WD Tractor series. Power comes from a five-cylinder engine; from 3 litres it draws 68 hp (50 kW). Rated speed is 2,400 rpm.
Wheelbase is 2.01 m.
Within the range, rated power spans from 64.9 to 578 hp; with 67.9 hp, the 5325 Narrow sits at the bottom end. Directly alongside are the 5065E with 65.9 hp below and the 5325 Utility with 68 hp above.
Technical data
Engine
| Power | 67.9 hp (50 kW)correct |
|---|---|
| Rated speed | 2,400 rpmcorrect |
| Torque | 244correct |
| Speed at max. torque | 1,446 rpmcorrect |
| Cylinders | 5correct |
| Displacement | 3,000.5 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Wheelbase | 2,008.6correct |
|---|
Drivetrain and chassis
| Gearbox type | 12F/12R PowrReversercorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
Working data
| Pump flow | 73.4 l/mincorrect |
|---|---|
| Fuel tank capacity | 71.9 lcorrect |
Frequently asked questions
How much power does the John Deere 5325 Narrow have?
The John Deere 5325 Narrow delivers 67.9 hp.
What engine does the John Deere 5325 Narrow have?
5 cylinders, 3,000 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
