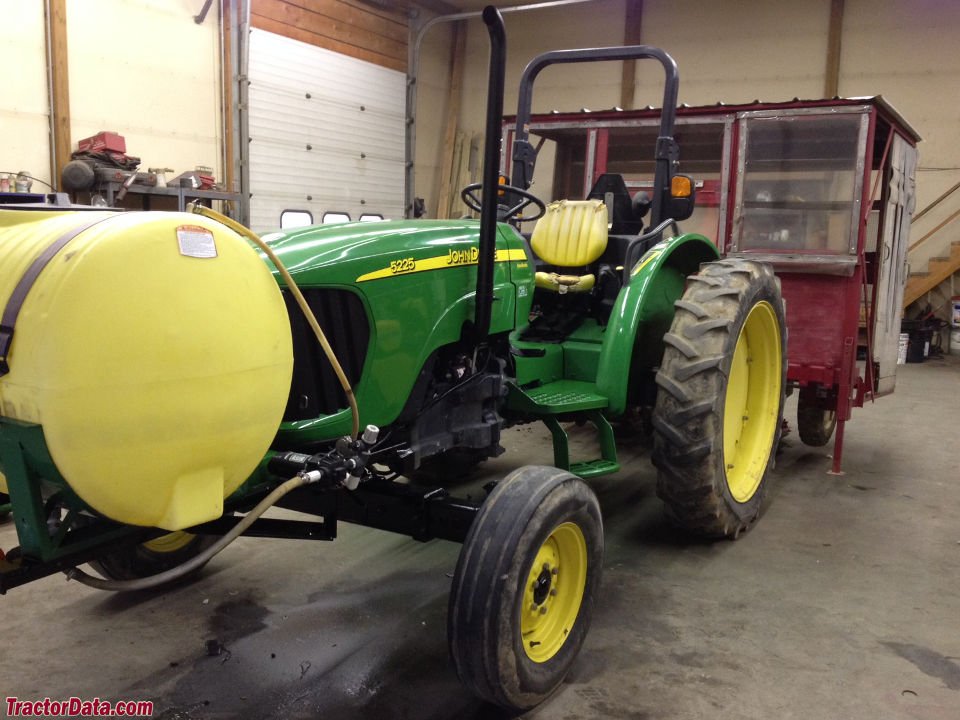

John Deere 5225 Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the John Deere 5225 belongs to the John Deere Utility Tractor series. Under the bonnet works a five-cylinder engine displacing 3 litres, producing 57 hp (41.8 kW). With a rated speed of 2,400 rpm, it is built for pulling power, not for revving.
Wheelbase is 2.18 m.
Within the range, rated power spans from 21.3 to 58.8 hp; with 56.8 hp, the 5225 sits at the top. Directly alongside are the 5055D with 55.8 hp below and the 5225 Utility with 57.2 hp above.
Technical data
Engine
| Engine model | 5,030correct |
|---|---|
| Power | 56.8 hp (41.8 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 214.1correct |
| Speed at max. torque | 1,349 rpmcorrect |
| Cylinders | 5correct |
| Displacement | 3,048 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Wheelbase | 2,179.3correct |
|---|
Drivetrain and chassis
| Gearbox type | Sync Shuttlecorrect |
|---|---|
| Forward gears | 9correct |
| Reverse gears | 3correct |
Working data
| Pump flow | 52.6 l/mincorrect |
|---|---|
| Fuel tank capacity | 94.6 lcorrect |
Frequently asked questions
How much power does the John Deere 5225 have?
The John Deere 5225 delivers 56.8 hp.
What engine does the John Deere 5225 have?
5 cylinders, 3,048 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
