John Deere 5075E (55.9 kW) 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

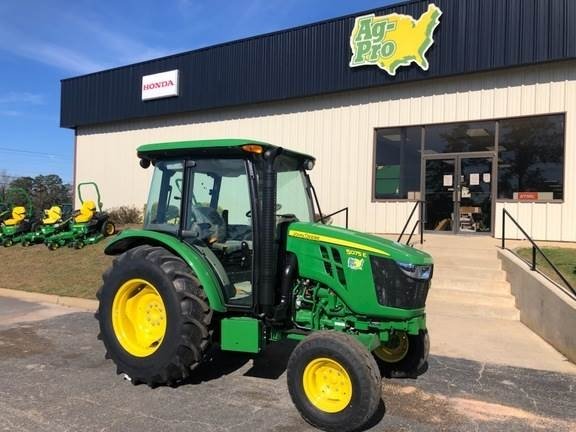

The John Deere 5075E is a tractor from the John Deere 2WD Tractor series. The three-cylinder engine, displacing 2.9 litres, produces 76 hp (55.9 kW). Rated speed is 2,400 rpm.
Wheelbase is 2.05 m.
Within the range, rated power spans from 64.9 to 578 hp; with 76 hp, the 5075E sits at the bottom end. Directly alongside are the 5403 with 75 hp below and the 6120 with 81.1 hp above.
Technical data
Engine
| Engine model | 3,029correct |
|---|---|
| Power | 76 hp (55.9 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,933.3 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Wheelbase | 2,051.3correct |
|---|---|
| Ground clearance | 457.2correct |
Drivetrain and chassis
| Forward gears | 9correct |
|---|---|
| Reverse gears | 3correct |
| Turning radius | 3,200 mmcorrect |
Working data
| Lifting capacity | 1,447 kgcorrect |
|---|---|
| Pump flow | 69.3 l/mincorrect |
| Fuel tank capacity | 68.1 lcorrect |
| PTO output | 61 hpcorrect |
More machines with this engine (3029, 3)
Frequently asked questions
How much power does the John Deere 5075E have?
The John Deere 5075E delivers 76 hp.
What engine does the John Deere 5075E have?
3 cylinders, 2,933 cm³ displacement.
What is the PTO output of the John Deere 5075E?
PTO output is 61 hp.
How much does the rear linkage of the John Deere 5075E lift?
The rear linkage lifts 1,447 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
