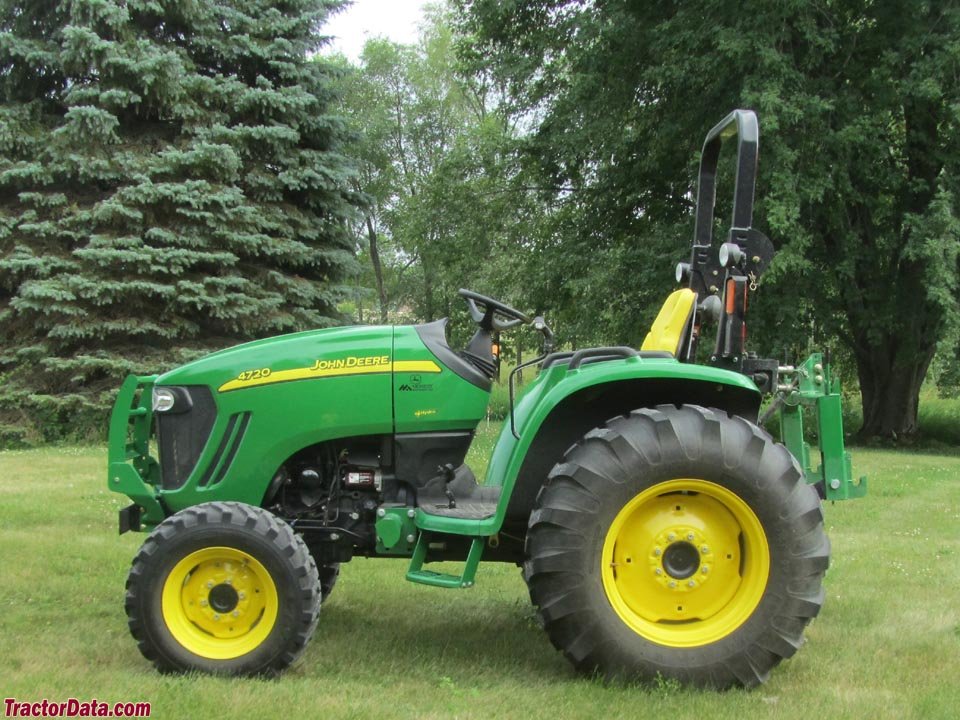

John Deere 4720 CUT Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The John Deere 4720 CUT is a tractor from John Deere. The four-cylinder engine, displacing 2.4 litres, produces 59 hp (43.3 kW). Rated speed is 2,400 rpm.
Wheelbase is 1.82 m.
Within the range, rated power spans from 24.3 to 507 hp; with 58.8 hp, the 4720 CUT sits in the mid-field. Directly alongside are the 3720 with 44.6 hp below and the 9230 with 330 hp above.
Technical data
Engine
| Engine model | 4024Tcorrect |
|---|---|
| Power | 58.8 hp (43.3 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 168correct |
| Speed at max. torque | 2,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,440 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 6.4 lcorrect |
| Engine oil capacity | 7.6 lcorrect |
Dimensions and weights
| Wheelbase | 1,816.6correct |
|---|
Drivetrain and chassis
| Gearbox type | eHydro - 3 rangecorrect |
|---|---|
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 64.7 l/mincorrect |
|---|---|
| Fuel tank capacity | 55.3 lcorrect |
Frequently asked questions
How much power does the John Deere 4720 CUT have?
The John Deere 4720 CUT delivers 58.8 hp.
What engine does the John Deere 4720 CUT have?
4 cylinders, 2,440 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
