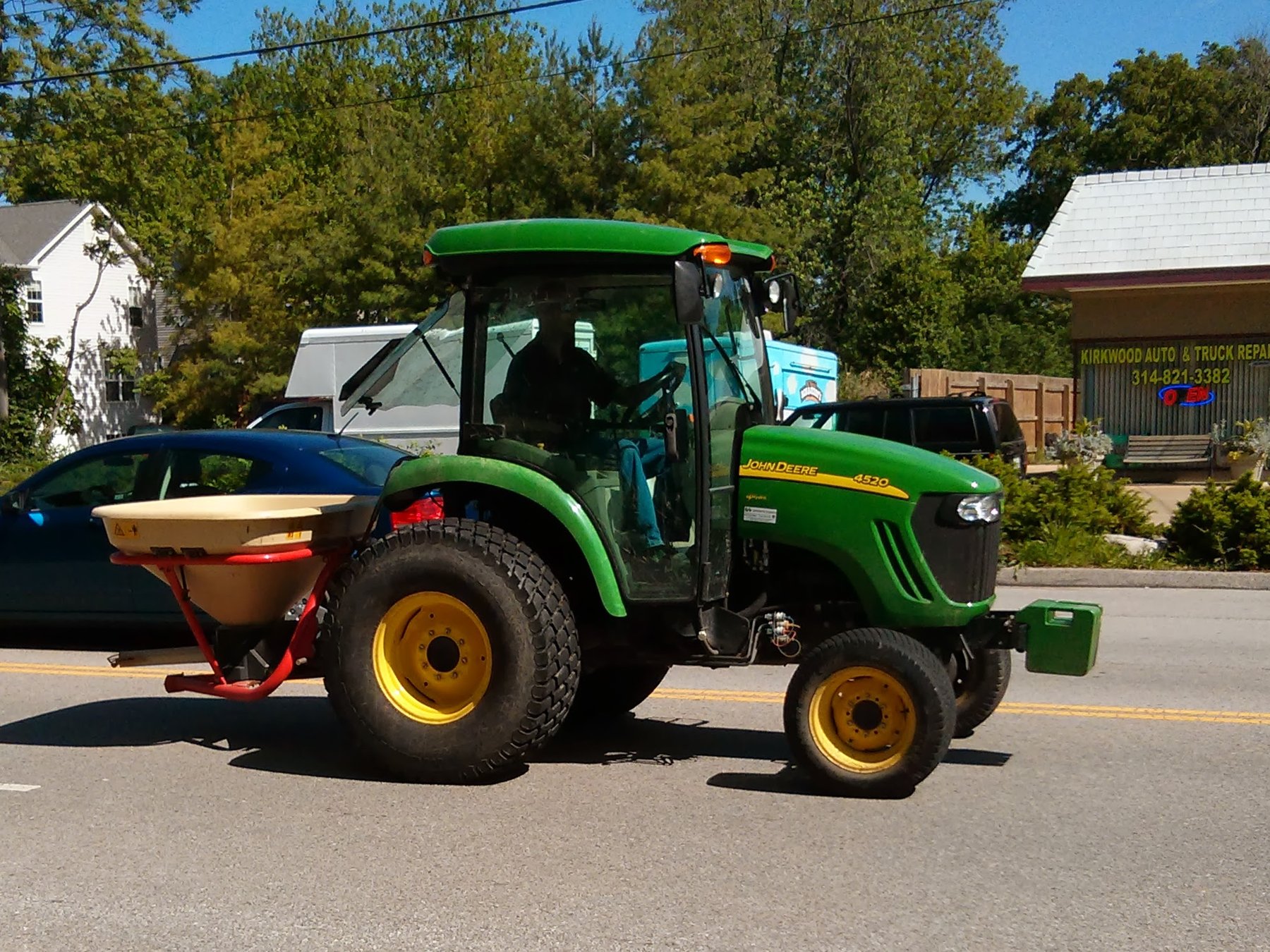

John Deere 4520 Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the John Deere 4520 belongs to the John Deere Utility Tractor series. 54 hp (39.5 kW) is what the four-cylinder engine gets out of 2.4 litres. Rated power is reached at 2,400 rpm.
Wheelbase is 1.82 m.
Within the range, rated power spans from 21.3 to 58.8 hp; with 53.7 hp, the 4520 sits at the top. Directly alongside are the 5105 with 50.7 hp below and the 5055D with 55.8 hp above.
Technical data
Engine
| Engine model | 4024Tcorrect |
|---|---|
| Power | 53.7 hp (39.5 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 153.2correct |
| Speed at max. torque | 2,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,440 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 6.4 lcorrect |
| Engine oil capacity | 7.6 lcorrect |
Dimensions and weights
| Wheelbase | 1,816.6correct |
|---|
Drivetrain and chassis
| Gearbox type | PowrReversercorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 64.7 l/mincorrect |
|---|---|
| Fuel tank capacity | 55.3 lcorrect |
Frequently asked questions
How much power does the John Deere 4520 have?
The John Deere 4520 delivers 53.7 hp.
What engine does the John Deere 4520 have?
4 cylinders, 2,440 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
