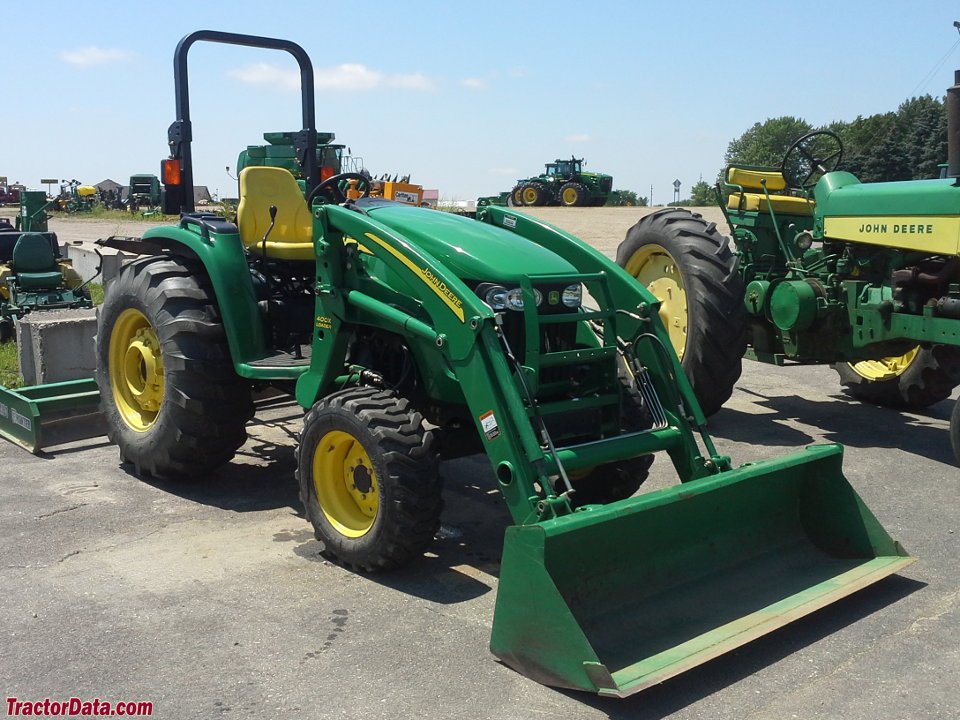

John Deere 4320 Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The John Deere 4320 is a tractor from the John Deere Utility Tractor series. Power comes from a four-cylinder engine; from 2.4 litres it draws 49 hp (35.8 kW). Rated power arrives at 2,400 rpm — the engine pulls from low down rather than needing to be revved.
Wheelbase is 1.82 m.
Within the range, rated power spans from 21.3 to 58.8 hp; with 48.7 hp, the 4320 sits in the upper third. Directly alongside are the 5045D with 45.6 hp below and the 5103 with 50.7 hp above.
Technical data
Engine
| Engine model | 4024Tcorrect |
|---|---|
| Power | 48.7 hp (35.8 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 138.3correct |
| Speed at max. torque | 2,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,440 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 6.4 lcorrect |
| Engine oil capacity | 7.6 lcorrect |
Dimensions and weights
| Wheelbase | 1,816.6correct |
|---|
Drivetrain and chassis
| Gearbox type | PowrReversercorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 64.7 l/mincorrect |
|---|---|
| Fuel tank capacity | 55.3 lcorrect |
Frequently asked questions
How much power does the John Deere 4320 have?
The John Deere 4320 delivers 48.7 hp.
What engine does the John Deere 4320 have?
4 cylinders, 2,440 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
