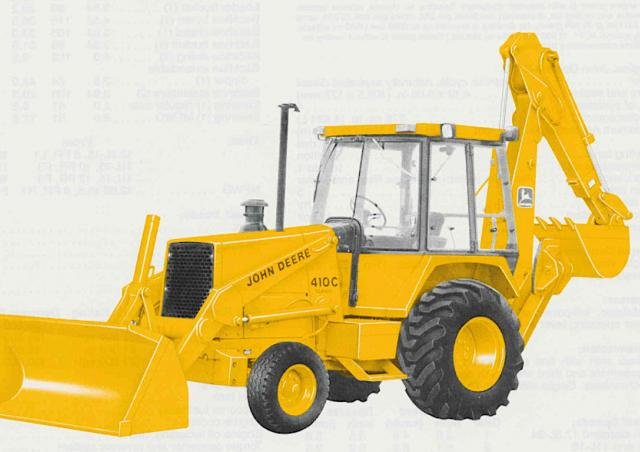

John Deere 410C

Series: John Deere Loader Backhoe

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 410C, John Deere offers a model from the John Deere Loader Backhoe series. The engine delivers 81.1 hp (55.9 kW), has 4 cylinders, with a displacement of 4,522.8 cm³. Rated speed is 2,200 rpm. The wheelbase measures 2,100.1 mm. Ground clearance is 307.8 mm. The tank holds 87.1 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,200 rpm. The pump delivers 132.5 l/min. The hydraulic tank holds 79.5 litres. Working pressure is 172.4 bar. The cooling system holds 16.3 litres. The electrical system runs on 12 V. The engine fitted is the 4276D. The John Deere Loader Backhoe series covers 57 models. Rated output within it ranges from 43.6 to 121.7 hp; the 410C sits in the middle of that range with 81.1 hp. Its immediate neighbours are the 310G below it with 79.1 hp and the 410D above it with 86.2 hp. 2153 John Deere models across 96 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine model4276Dcorrect
Power81.1 hp (55.9 kW)correct
Rated speed2,200 rpmcorrect
Speed at max. torque1,200 rpmcorrect
Cylinders4correct
Displacement4,522.8 cm³correct
Aspirationnaturally aspiratedcorrect
Coolant capacity16.3 lcorrect

Dimensions and weights

Wheelbase2,100.1correct
Ground clearance307.8correct

Drivetrain and chassis

Gearbox typemanual gearbox shift with first and second speeds having sliding collar engagement and tcorrect
Forward gears4correct
Reverse gears4correct
System voltage12 Vcorrect

Working data

Pump flow132.5 l/mincorrect
Hydraulic oil capacity79.5 lcorrect
Hydraulic pressure172.4correct
Fuel tank capacity87.1 lcorrect

Frequently asked questions

How much power does the John Deere 410C have?

The John Deere 410C delivers 81.1 hp.

What engine does the John Deere 410C have?

4 cylinders, 4,523 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
