John Deere 3520 Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

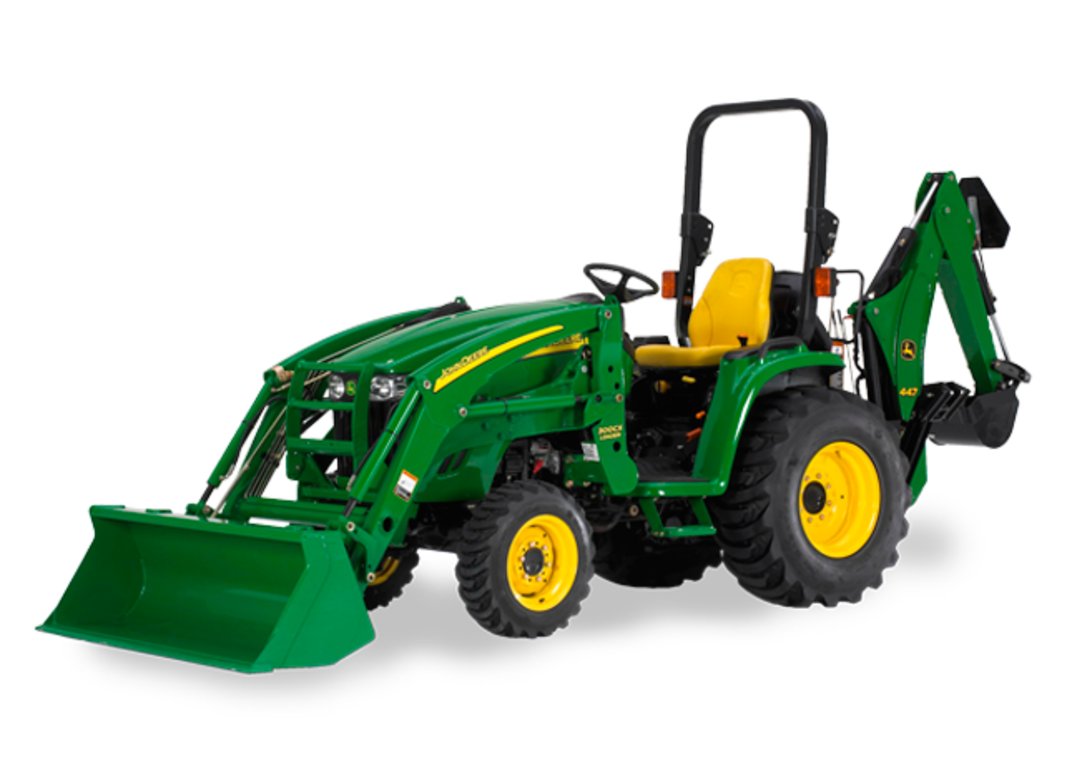

The John Deere 3520 is a tractor made by John Deere. 38 hp (27.6 kW) is what the three-cylinder engine gets out of 1.5 litres. Rated power is reached at 2,600 rpm.
Wheelbase is 1.73 m.
Within the range, rated power spans from 24.3 to 507 hp; with 37.5 hp, the 3520 sits in the lower third. Directly alongside are the Dain Tractor with 24.3 hp below and the 3720 with 44.6 hp above.
Technical data
Engine
| Engine model | 3TNV84Tcorrect |
|---|---|
| Power | 37.5 hp (27.6 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Torque | 96.4correct |
| Speed at max. torque | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,501.1 cm³correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 1.5 lcorrect |
| Engine oil capacity | 4.9 lcorrect |
Dimensions and weights
| Wheelbase | 1,728.2correct |
|---|
Drivetrain and chassis
| Gearbox type | PowrReversercorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 52.6 l/mincorrect |
|---|---|
| Fuel tank capacity | 51.1 lcorrect |
Frequently asked questions
How much power does the John Deere 3520 have?
The John Deere 3520 delivers 37.5 hp.
What engine does the John Deere 3520 have?
3 cylinders, 1,501 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
