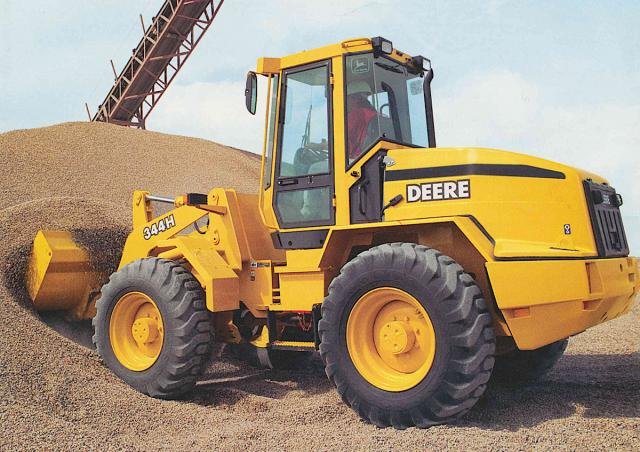

John Deere 344H

Series: John Deere Wheel Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The John Deere 344H is a model in the John Deere Wheel Loader series. The engine delivers 103.4 hp (73.1 kW), has 4 cylinders, with a displacement of 4,522.8 cm³. Torque is 394.5 Nm. Rated speed is 2,400 rpm. The unladen weight is 7,654.8 kg. The wheelbase measures 2,603 mm. Ground clearance is 381 mm. The tank holds 140.1 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 113.6 l/min. The hydraulic tank holds 65.1 litres. The cooling system holds 17 litres. The electrical system runs on 12 V. The engine fitted is the 4045T. Tyre size: 17,5-25. The John Deere Wheel Loader series covers 120 models. Rated output within it ranges from 55.8 to 286.9 hp; the 344H sits in the lower part of that range with 103.4 hp. Its immediate neighbours are the 444E below it with 101.4 hp and the 544A above it with 105.4 hp. 2153 John Deere models across 96 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine model4045Tcorrect
Power103.4 hp (73.1 kW)correct
Rated speed2,400 rpmcorrect
Torque394.5correct
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement4,522.8 cm³correct
Aspirationturbochargedcorrect
Coolant capacity17 lcorrect

Dimensions and weights

Wheelbase2,603correct
Ground clearance381correct
Unladen weight7,654.8 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect
Forward gears2correct
Reverse gears2correct
Tyre size17.5-25correct
System voltage12 Vcorrect

Working data

Pump flow113.6 l/mincorrect
Hydraulic oil capacity65.1 lcorrect
Fuel tank capacity140.1 lcorrect

Other data

Height3,063.2correct

Where this model stands

Power-to-weight ratio: 9.5 kW/t (73 kW / 7.7 t)

Stronger than 36% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the John Deere 344H have?

The John Deere 344H delivers 103 hp.

How much does the John Deere 344H weigh?

The unladen weight is 7,655 kg.

What engine does the John Deere 344H have?

4 cylinders, 4,523 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
