John Deere 3320 Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

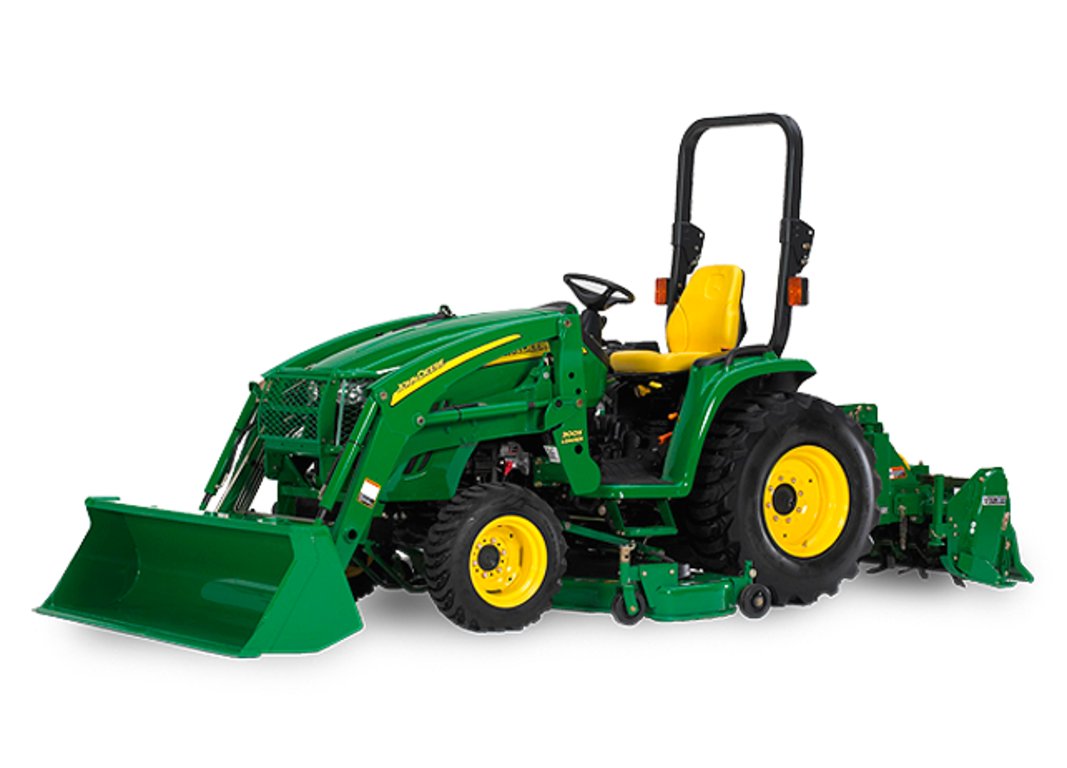

The John Deere 3320 is a tractor from the John Deere Utility Tractor series. The three-cylinder engine, displacing 1.6 litres, produces 33 hp (24.2 kW). With a rated speed of 2,600 rpm, it is built for pulling power, not for revving.
Wheelbase is 1.73 m.
Within the range, rated power spans from 21.3 to 58.8 hp; with 33 hp, the 3320 sits in the mid-field. Directly alongside are the 3203 with 32.4 hp below and the 2038R with 37.3 hp above.
Technical data
Engine
| Engine model | 3TNV88correct |
|---|---|
| Power | 33 hp (24.2 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Torque | 83.5correct |
| Speed at max. torque | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,640.3 cm³correct |
| Aspiration | naturalcorrect |
| Coolant capacity | 1.5 lcorrect |
| Engine oil capacity | 4.9 lcorrect |
Dimensions and weights
| Wheelbase | 1,728.2correct |
|---|
Drivetrain and chassis
| Gearbox type | PowrReversercorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 52.6 l/mincorrect |
|---|---|
| Fuel tank capacity | 51.1 lcorrect |
Frequently asked questions
How much power does the John Deere 3320 have?
The John Deere 3320 delivers 33 hp.
What engine does the John Deere 3320 have?
3 cylinders, 1,640 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
