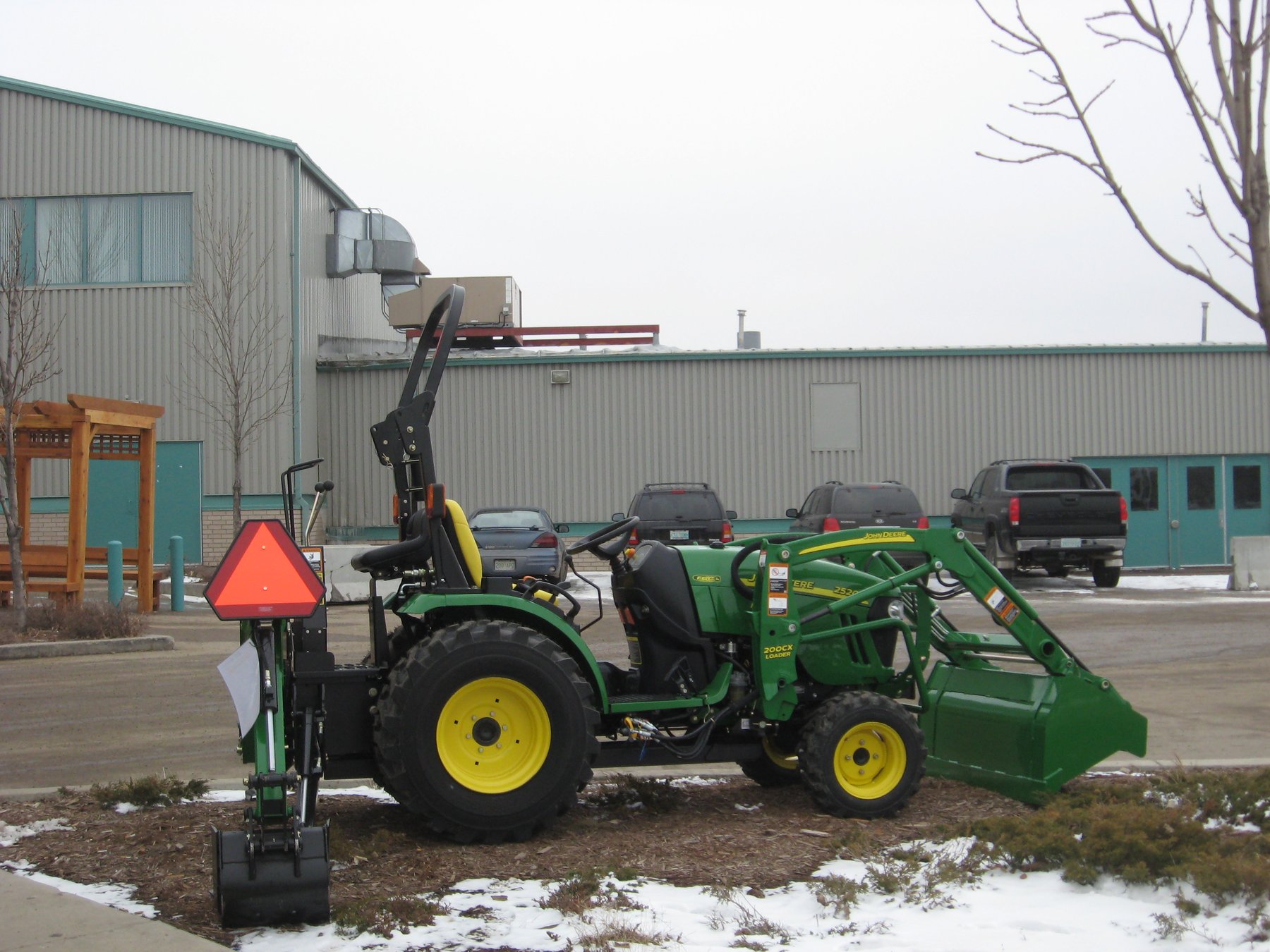

John Deere 2520 Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The John Deere 2520 is a tractor made by John Deere. 27 hp (19.8 kW) is what the three-cylinder engine gets out of 1.3 litres. Rated output is reached at 2,600 rpm, so it works in the lower rev range.
Wheelbase is 1.66 m.
Within the range, rated power spans from 24.3 to 507 hp; with 26.9 hp, the 2520 sits in the lower third. Directly alongside are the Dain Tractor with 24.3 hp below and the 3720 with 44.6 hp above.
Technical data
Engine
| Engine model | 3TNV82Acorrect |
|---|---|
| Power | 26.9 hp (19.8 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Torque | 69.6correct |
| Speed at max. torque | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,330.6 cm³correct |
| Aspiration | naturalcorrect |
| Coolant capacity | 4.2 lcorrect |
| Engine oil capacity | 3 lcorrect |
Dimensions and weights
| Wheelbase | 1,655.1correct |
|---|
Drivetrain and chassis
| Gearbox type | hydro- 2 rangecorrect |
|---|---|
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 39.7 l/mincorrect |
|---|---|
| Fuel tank capacity | 27.3 lcorrect |
Frequently asked questions
How much power does the John Deere 2520 have?
The John Deere 2520 delivers 26.9 hp.
What engine does the John Deere 2520 have?
3 cylinders, 1,331 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
