John Deere 2320 Utility
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

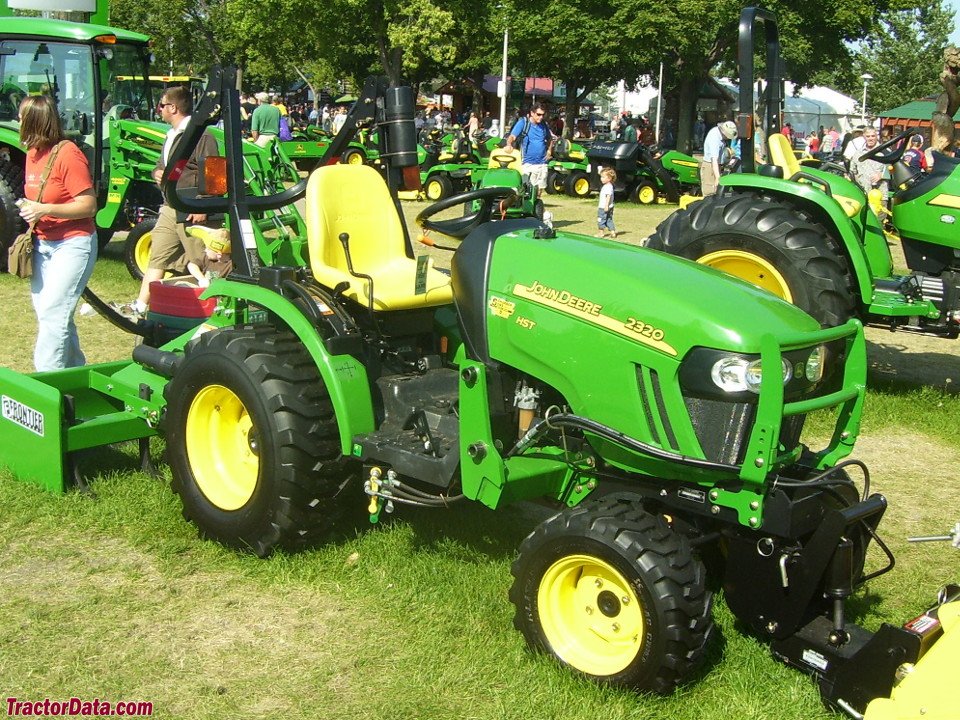

As a tractor, the John Deere 2320 belongs to the John Deere Utility Tractor series. 24 hp (17.9 kW) is what the three-cylinder engine gets out of 1.1 litres. Rated power is reached at 3,000 rpm.
Wheelbase is 1.60 m.
Within the range, rated power spans from 21.3 to 58.8 hp; with 24.3 hp, the 2320 sits at the bottom end. Directly alongside are the 2025R with 24.2 hp below and the 3025E with 25 hp above.
Technical data
Engine
| Engine model | 3TNV76correct |
|---|---|
| Power | 24.3 hp (17.9 kW)correct |
| Rated speed | 3,000 rpmcorrect |
| Torque | 54.6correct |
| Speed at max. torque | 3,000 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,116 cm³correct |
| Aspiration | naturalcorrect |
| Coolant capacity | 3.4 lcorrect |
| Engine oil capacity | 3.4 lcorrect |
Dimensions and weights
| Wheelbase | 1,600.2correct |
|---|
Drivetrain and chassis
| Gearbox type | hydro- 2 rangecorrect |
|---|---|
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 21.6 l/mincorrect |
|---|---|
| Fuel tank capacity | 23.1 lcorrect |
Frequently asked questions
How much power does the John Deere 2320 have?
The John Deere 2320 delivers 24.3 hp.
What engine does the John Deere 2320 have?
3 cylinders, 1,116 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 16 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
