John Deere 220DW

Series: John Deere Mobile Excavator

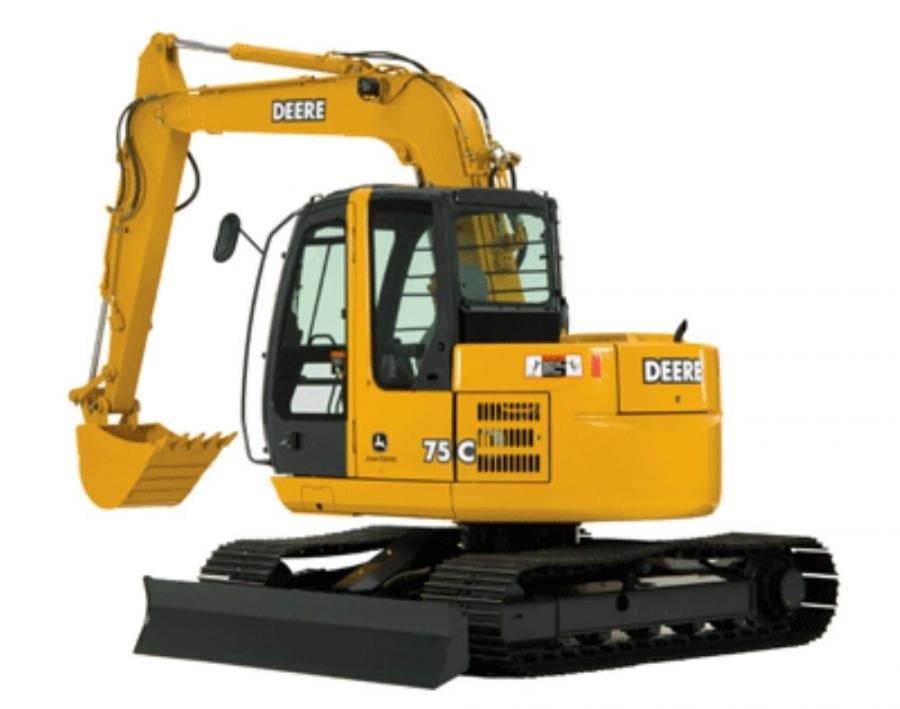

The photo shows the 75C from the same series. Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 220DW from John Deere is part of the John Deere Mobile Excavator series. The engine delivers 118.6 kW, has 4 cylinders, with a displacement of 5,194.7 cm³. Rated speed is 2,000 rpm. The unladen weight is 22,629 kg. The wheelbase measures 2,752.3 mm. Ground clearance is 332.2 mm. The tank holds 355.1 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. The pump delivers 378.2 l/min. The hydraulic tank holds 340.3 litres. Working pressure is 343 bar. The cooling system holds 26.1 litres. The oil fill is 23.1 litres. The engine fitted is the 4HK1X. Tier III certified. Tyre size: 10,00-20. 16 PR. The John Deere Mobile Excavator series covers 5 models. Rated output within it ranges from 40.3 to 118.6 kW; the 220DW sits at the top of that range with 118.6 kW. Its immediate neighbours are the 210CW below it with 110.4 kW. 2153 John Deere models across 96 series are on record. The model is listed under Excavators & compaction. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine model	4HK1X, Tier III certifiedcorrect
Power	118.6 kWcorrect
Rated speed	2,000 rpmcorrect
Cylinders	4correct
Displacement	5,194.7 cm³correct
Aspiration	turbocharged and intercooledcorrect
Coolant capacity	26.1 lcorrect
Engine oil capacity	23.1 lcorrect

Dimensions and weights

Wheelbase	2,752.3correct
Ground clearance	332.2correct
Unladen weight	22,629 kgcorrect

Drivetrain and chassis

Gearbox type	automatic gearbox shiftcorrect
Forward gears	2correct
Reverse gears	2correct
Tyre size	10.00-20, 16 PRcorrect

Working data

Pump flow	378.2 l/mincorrect
Hydraulic oil capacity	340.3 lcorrect
Hydraulic pressure	343 barcorrect
Fuel tank capacity	355.1 lcorrect

Other data

Height	3,173correct

Where this model stands

Power-to-weight ratio: 5.2 kW/t (119 kW / 22.6 t)

Stronger than 55% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the John Deere 220DW have?

The John Deere 220DW delivers 119 kW.

How much does the John Deere 220DW weigh?

The unladen weight is 22,629 kg.

What engine does the John Deere 220DW have?

4 cylinders, 5,195 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
