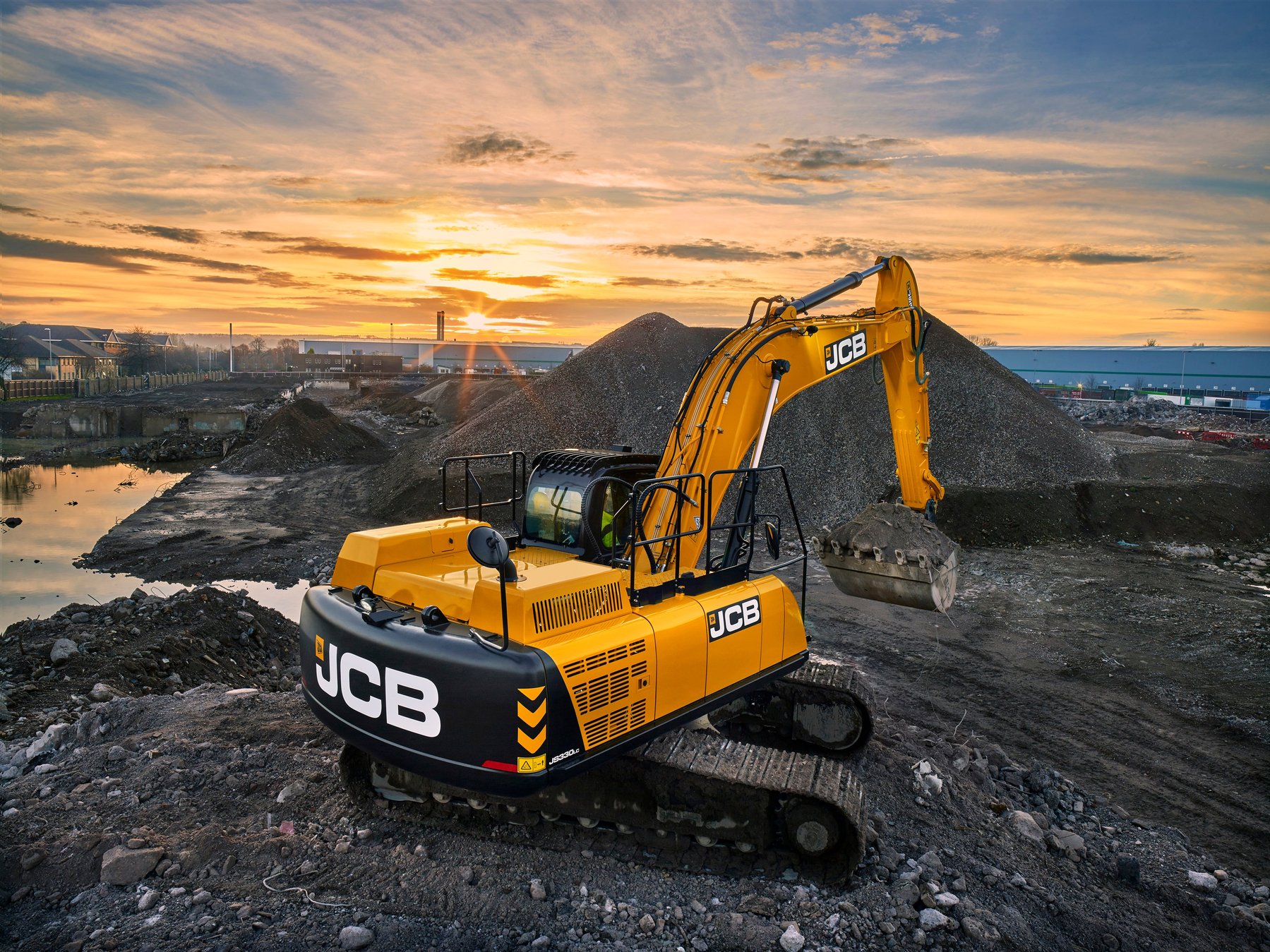

JCB JS330NLC

Series: JCB Hydraulic Excavator

Source: https://www.lectura-specs.fr/fr/modele/machines-de-chantier/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the JS330NLC, JCB offers a model from the JCB Hydraulic Excavator series. The engine delivers 274.8 hp (209.5 kW), has 6 cylinders, with a displacement of 7,700.3 cm³. Rated speed is 2,000 rpm. The unladen weight is 32,229 kg. Ground clearance is 509 mm. The tank holds 590.1 litres. The pump delivers 580.3 l/min. The hydraulic tank holds 430 litres. Working pressure is 319 bar. The cooling system holds 38.2 litres. The oil fill is 25.4 litres. The electrical system runs on 24 V. The engine fitted is the MTU 6R1000. The JCB Hydraulic Excavator series covers 39 models. Rated output within it ranges from 190.4 to 284.9 hp; the JS330NLC sits at the top of that range with 274.8 hp. Its immediate neighbours are the JS260LC below it with 190.4 hp and the JS330LC above it with 284.9 hp. 752 JCB models across 38 series are on record. The model is listed under Excavators & compaction. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine modelMTU 6R1000correct
Power274.8 hp (209.5 kW)correct
Rated speed2,000 rpmcorrect
Cylinders6correct
Displacement7,700.3 cm³correct
AspirationTurbocharged and intercooledcorrect
Coolant capacity38.2 lcorrect
Engine oil capacity25.4 lcorrect

Dimensions and weights

Ground clearance509correct
Unladen weight32,229 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow580.3 l/mincorrect
Hydraulic oil capacity430 lcorrect
Hydraulic pressure319 barcorrect
Fuel tank capacity590.1 lcorrect

Other data

Height3,176correct

Where this model stands

Power-to-weight ratio: 6.5 kW/t (210 kW / 32.2 t)

Stronger than 83% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the JCB JS330NLC have?

The JCB JS330NLC delivers 275 hp.

How much does the JCB JS330NLC weigh?

The unladen weight is 32,229 kg.

What engine does the JCB JS330NLC have?

6 cylinders, 7,700 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
