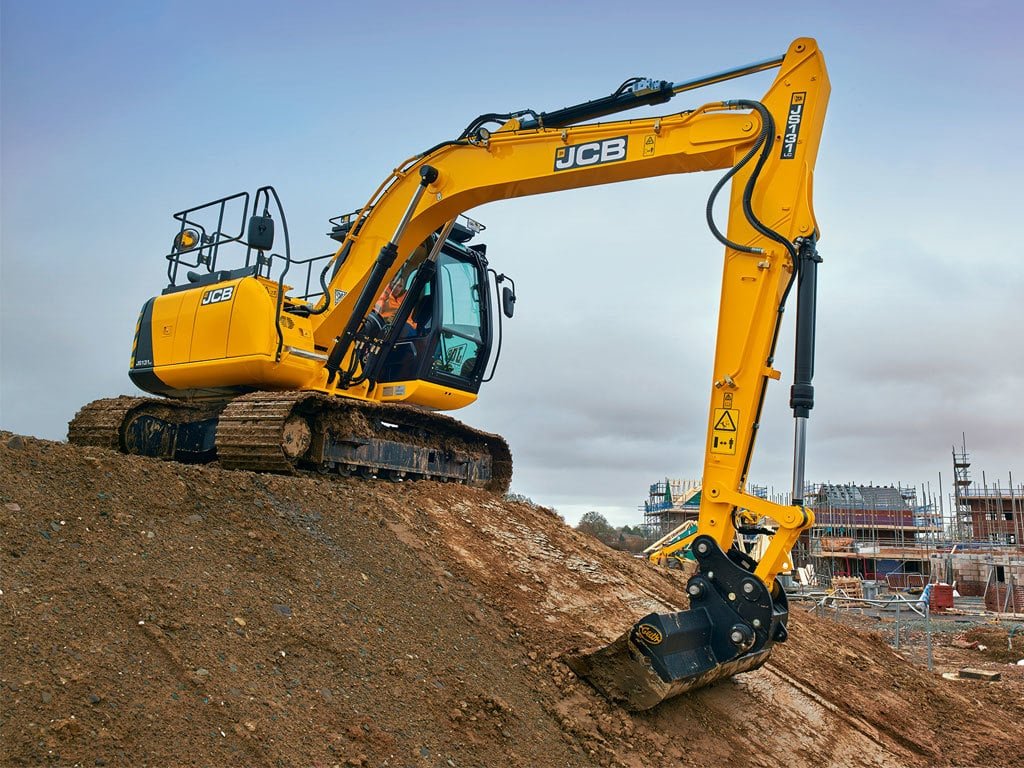

JCB JS131 LC

Series: JCB Hydraulic Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The JCB JS131 LC is a model in the JCB Hydraulic Excavator series. The engine delivers 55.2 kW, with a displacement of 4,401.6 cm³. Rated speed is 1,800 rpm. Ground clearance is 426.7 mm. The tank holds 220.3 litres. The hydraulic tank holds 126.1 litres. The cooling system holds 20.1 litres. The oil fill is 14 litres. The JCB Hydraulic Excavator series covers 39 models. Rated output within it ranges from 55.2 to 227.4 kW; the JS131 LC sits at the bottom of that range with 55.2 kW. Its immediate neighbours are the JS130HD above it with 70 kW. 752 JCB models across 38 series are on record. The model is listed under Excavators & compaction. 10 verified figures from 1 source are on file.

Technical data

Engine

Engine modelJCB EcoMAX 444 TCA 55 EU Stage IIIB, EPA Tier 4 Final compliantcorrect
Power55.2 kWcorrect
Rated speed1,800 rpmcorrect
Displacement4,401.6 cm³correct
Coolant capacity20.1 lcorrect
Engine oil capacity14 lcorrect

Dimensions and weights

Ground clearance426.7correct

Working data

Hydraulic oil capacity126.1 lcorrect
Fuel tank capacity220.3 lcorrect

Other data

Height2,846.8correct

Frequently asked questions

How much power does the JCB JS131 LC have?

The JCB JS131 LC delivers 55.2 kW.

What engine does the JCB JS131 LC have?

4,402 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
