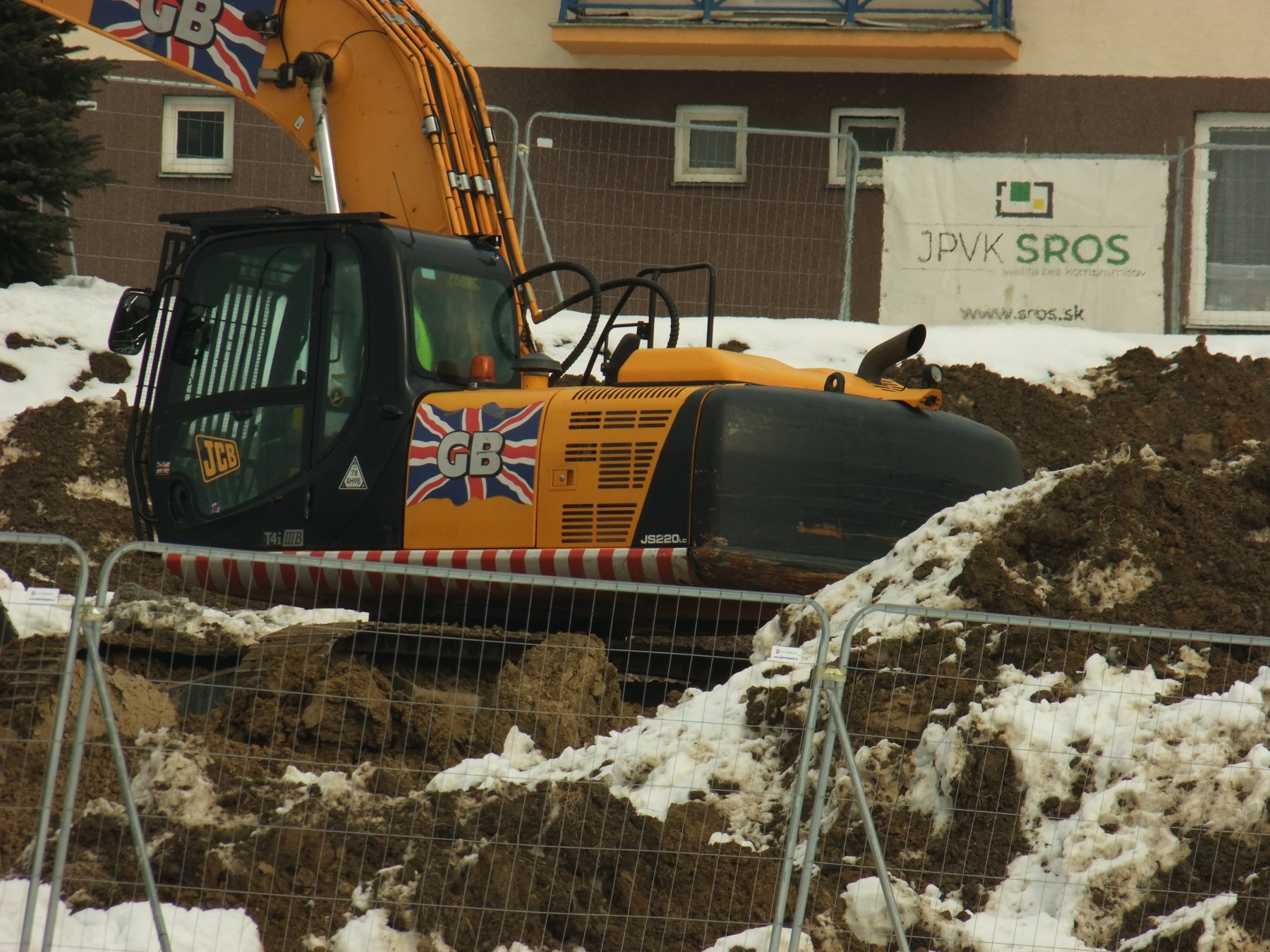

JCB JS220LC

Series: JCB Hydraulic Excavator

Source: https://commons.wikimedia.org/w/index.php?curid=128695759 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The JCB Hydraulic Excavator series from JCB includes the JS220LC. The engine delivers 128.3 kW, has 4 cylinders, with a displacement of 5,194.7 cm³. Rated speed is 2,000 rpm. The unladen weight is 21,904 kg. Ground clearance is 481.6 mm. The tank holds 344.5 litres. The pump delivers 214.3 l/min. The hydraulic tank holds 200.6 litres. Working pressure is 343 bar. The cooling system holds 25.4 litres. The oil fill is 21.6 litres. The electrical system runs on 24 V. The engine fitted is the 4HKIX. The JCB Hydraulic Excavator series covers 39 models. Rated output within it ranges from 55.2 to 227.4 kW; the JS220LC sits in the middle of that range with 128.3 kW. Its immediate neighbours are the JS260XD below it with 120.1 kW and the JS240LC above it with 140 kW. 752 JCB models across 38 series are on record. The model is listed under Excavators & compaction. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine model4HKIXcorrect
Power128.3 kWcorrect
Rated speed2,000 rpmcorrect
Cylinders4correct
Displacement5,194.7 cm³correct
Aspirationturbochargedcorrect
Coolant capacity25.4 lcorrect
Engine oil capacity21.6 lcorrect

Dimensions and weights

Ground clearance481.6correct
Unladen weight21,904 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow214.3 l/mincorrect
Hydraulic oil capacity200.6 lcorrect
Hydraulic pressure343 barcorrect
Fuel tank capacity344.5 lcorrect

Other data

Height2,947.4correct

Where this model stands

Power-to-weight ratio: 5.9 kW/t (128 kW / 21.9 t)

Stronger than 63% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the JCB JS220LC have?

The JCB JS220LC delivers 128 kW.

How much does the JCB JS220LC weigh?

The unladen weight is 21,904 kg.

What engine does the JCB JS220LC have?

4 cylinders, 5,195 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
