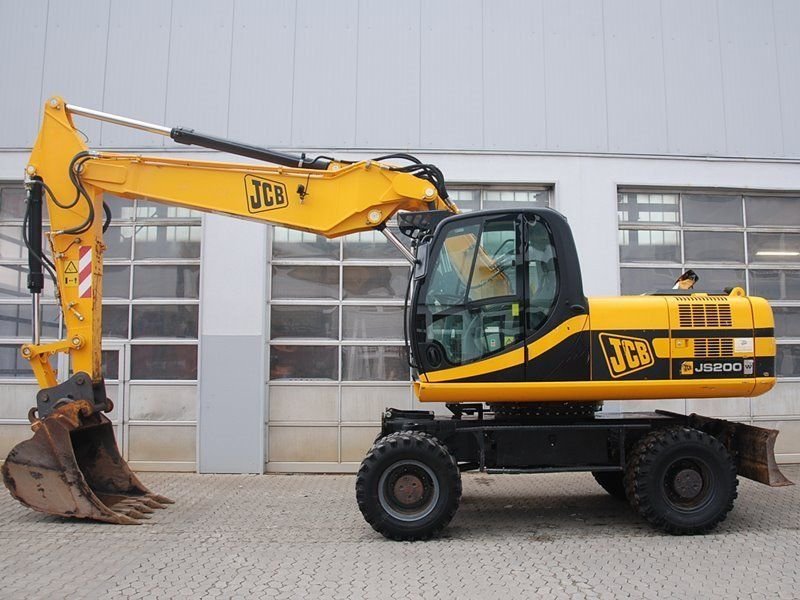

JCB JS200W

Series: JCB Mobile Excavator

Source: https://www.truck1.eu/construction-machinery/wheel-excavator

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The JCB JS200W is a model in the JCB Mobile Excavator series. The engine delivers 102.9 kW, has 4 cylinders, with a displacement of 4,801.4 cm³. Rated speed is 1,950 rpm. Ground clearance is 350.5 mm. The tank holds 310 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. The pump delivers 399.4 l/min. The hydraulic tank holds 200.2 litres. Working pressure is 343 bar. The cooling system holds 25.7 litres. The oil fill is 19.7 litres. Tyre size: twins: 11x20 10PR. singles: 18Rx22,5 (Radials). The JCB Mobile Excavator series covers 7 models. Rated output within it ranges from 70.1 to 102.9 kW; the JS200W sits at the top of that range with 102.9 kW. Its immediate neighbours are the JS160W below it with 81.3 kW. 752 JCB models across 38 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine modelJCB EcoMAX 448 TCA-99 Eu Stage IIIB, EPA Tier 4 interim compliantcorrect
Power102.9 kWcorrect
Rated speed1,950 rpmcorrect
Cylinders4correct
Displacement4,801.4 cm³correct
Aspirationturbochargedcorrect
Coolant capacity25.7 lcorrect
Engine oil capacity19.7 lcorrect

Dimensions and weights

Ground clearance350.5correct

Drivetrain and chassis

Gearbox typehydrostatic transmission, powershift transmissioncorrect
Forward gears2correct
Reverse gears2correct
Tyre sizetwins: 11x20 10PR, singles: 18Rx22.5 (Radials)correct

Working data

Pump flow399.4 l/mincorrect
Hydraulic oil capacity200.2 lcorrect
Hydraulic pressure343 barcorrect
Fuel tank capacity310 lcorrect

Other data

Height3,151.6correct

Frequently asked questions

How much power does the JCB JS200W have?

The JCB JS200W delivers 103 kW.

What engine does the JCB JS200W have?

4 cylinders, 4,801 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
