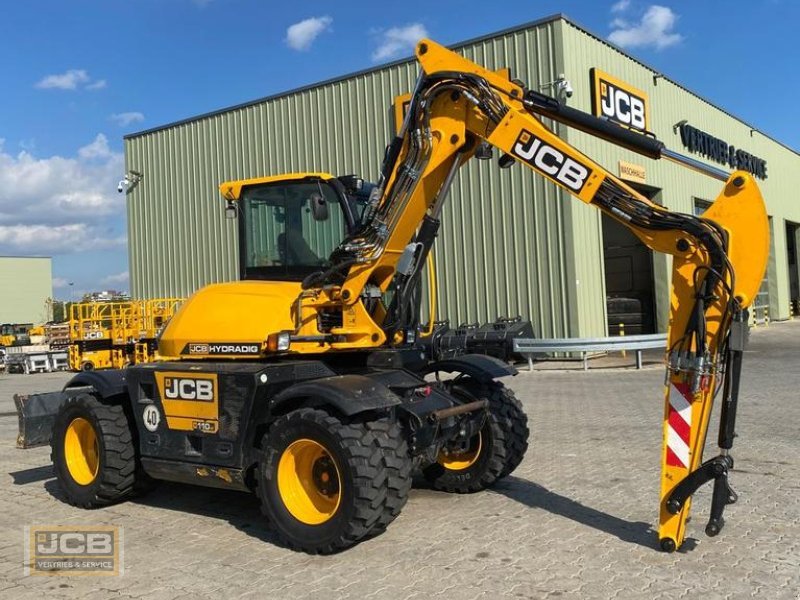

JCB HYDRADIG 110W

Series: JCB Mobile Excavator

Source: https://www.technikboerse.com/gebraucht/bagger-789 technikb

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the HYDRADIG 110W, JCB offers a model from the JCB Mobile Excavator series. The engine has 4 cylinders, with a displacement of 4,401.6 cm³. Rated speed is 2,200 rpm. The unladen weight is 10,208 kg. The wheelbase measures 2,651.8 mm. Ground clearance is 298.7 mm. The tank holds 157.1 litres. Maximum torque is reached at 1,500 rpm. The pump delivers 158.6 l/min. The hydraulic tank holds 190 litres. Working pressure is 280 bar. The cooling system holds 28 litres. The oil fill is 14 litres. The engine fitted is the JCB EcoMAX 444 TCA EU Stage IV EPA Tier 4 Final compliant. The JCB Mobile Excavator series covers 7 models. Unladen weight within it ranges from 10,208 to 20,720 kg; the HYDRADIG 110W sits at the bottom of that range with 10,208 kg. Its immediate neighbours are the JS160W above it with 15,106 kg. 752 JCB models across 38 series are on record. The model is listed under Excavators & compaction. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine modelJCB EcoMAX 444 TCA EU Stage IV EPA Tier 4 Final compliantcorrect
Rated speed2,200 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders4correct
Displacement4,401.6 cm³correct
Coolant capacity28 lcorrect
Engine oil capacity14 lcorrect

Dimensions and weights

Width2,420.1correct
Wheelbase2,651.8correct
Ground clearance298.7correct
Unladen weight10,208 kgcorrect

Working data

Pump flow158.6 l/mincorrect
Hydraulic oil capacity190 lcorrect
Hydraulic pressure280 barcorrect
Fuel tank capacity157.1 lcorrect

Other data

Height2,990.1correct

Frequently asked questions

How much does the JCB HYDRADIG 110W weigh?

The unladen weight is 10,208 kg.

What engine does the JCB HYDRADIG 110W have?

4 cylinders, 4,402 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
