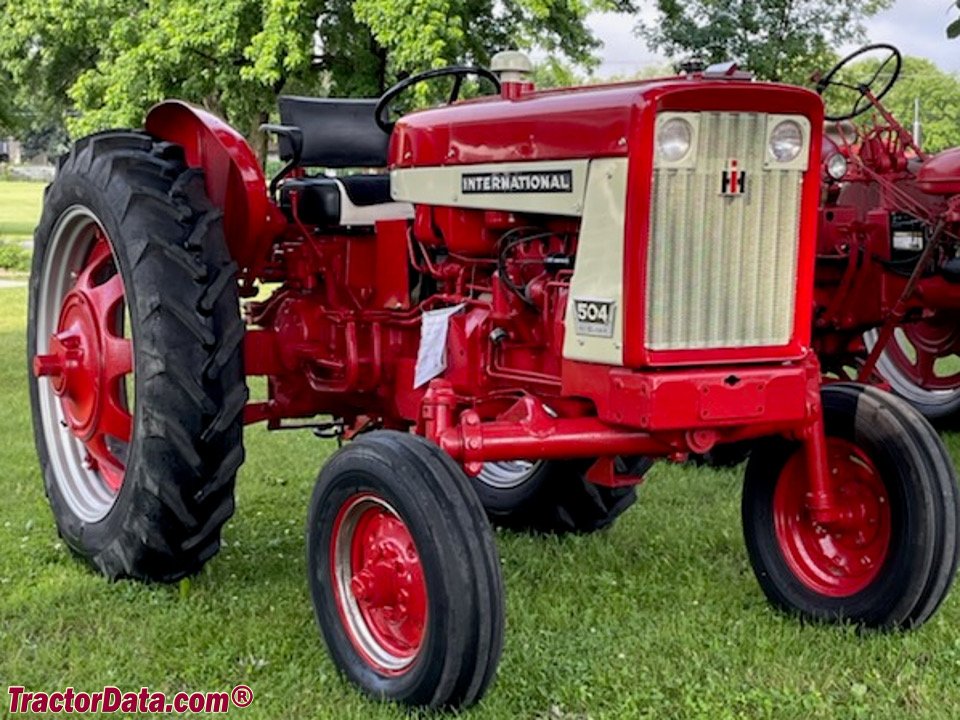

International Farmall 504
Built: 1961–1968 · Series: FARMALL-Baureihe
More machines from model year 1961
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
International Farmall – collective brand page: from the small Farmall Cub to the Farmall 504, petrol and diesel engines with 7 to 34 kW
This page brings together Farmall-branded models that could not be assigned to a named range of their own: the compact Farmall Cub, the 404 and the Farmall 504. Farmall was the farm tractor brand of the International Harvester Company, headquartered in Chicago, which built tractors under this name from 1923 for American and, later, European agriculture. Type numbers such as 404 or 504 denote the respective model line within the International Harvester range.
Read on 3 more paragraphs
The register lists 3 versions here with 6.9 to 33.8 kW rated output from four-cylinder engines of 976 to 2,493 cc displacement. Kerb weight ranges from 594 to 2,443 kg, length from 2,388 to 3,372 mm, width from 1,200 to 2,108 mm and height from 1,588 to 1,981 mm, at rated speeds between 1,600 and 2,200 rpm. Fuel types recorded are petrol, petrol with LPG dual-fuel operation, and a version additionally capable of running on diesel.
The wide gap between the tiny Farmall Cub and the considerably larger Farmall 504 shows the breadth of the Farmall programme, which ranged from market-garden and orchard tractors to all-purpose tractors for medium-sized farms. As one of the best-known American tractor brands, Farmall shaped the mechanisation of North American agriculture for decades and was also sold in Europe.
When buying a used Farmall, check, depending on the model, the condition of the carburettor or injection system, wear on the clutch and the often simple gearbox, and corrosion on bodywork and radiator after long outdoor use. Spare parts for Farmall tractors are available through a wide network of vintage-tractor dealers and reproduction-parts suppliers, as the brand continues today at Case IH as a name for compact tractors.
Sources: SpecCodex register, model data: International Farmall (weitere Modelle), Case IH (Nachfolgemarke für Farmall)
Technical data
Engine
| Fuel | Benzin/LPG/Dieselcorrect |
|---|---|
| Power | 46 hp (33.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,493 cm³correct |
| Bore | 85.73 mmcorrect |
| Stroke | 107.95 mmcorrect |
| Compression ratio | 7.7correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,372 mmcorrect |
|---|---|
| Width | 2,108 mmcorrect |
| Height | 1,981 mmcorrect |
| Wheelbase | 2,261 mmcorrect |
| Ground clearance | 591 mmcorrect |
| Unladen weight | 2,443 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5 V/1 R, 10 V/2 R or 5 V/5 Rcorrect |
| Front tyres | 6.00-16correct |
| Rear tyres | 13.6-38correct |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|---|
| Units built | 15,670correct |
Where this model stands
Power-to-weight ratio: 13.8 kW/t (34 kW / 2.4 t)
Power class: Universal (40–100 hp)
Stronger than 30% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the International Farmall 504 have?
The International Farmall 504 delivers 46 hp.
How much does the International Farmall 504 weigh?
The unladen weight is 2,443 kg.
What engine does the International Farmall 504 have?
4 cylinders, 2,493 cm³ displacement, Benzin/LPG/Diesel.
How fast does the International Farmall 504 go?
Top speed is 30 km/h.
What are the dimensions of the International Farmall 504?
3,372 mm × 2,108 mm × 1,981 mm.
When was the International Farmall 504 built?
Production years: 1961–1968.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
