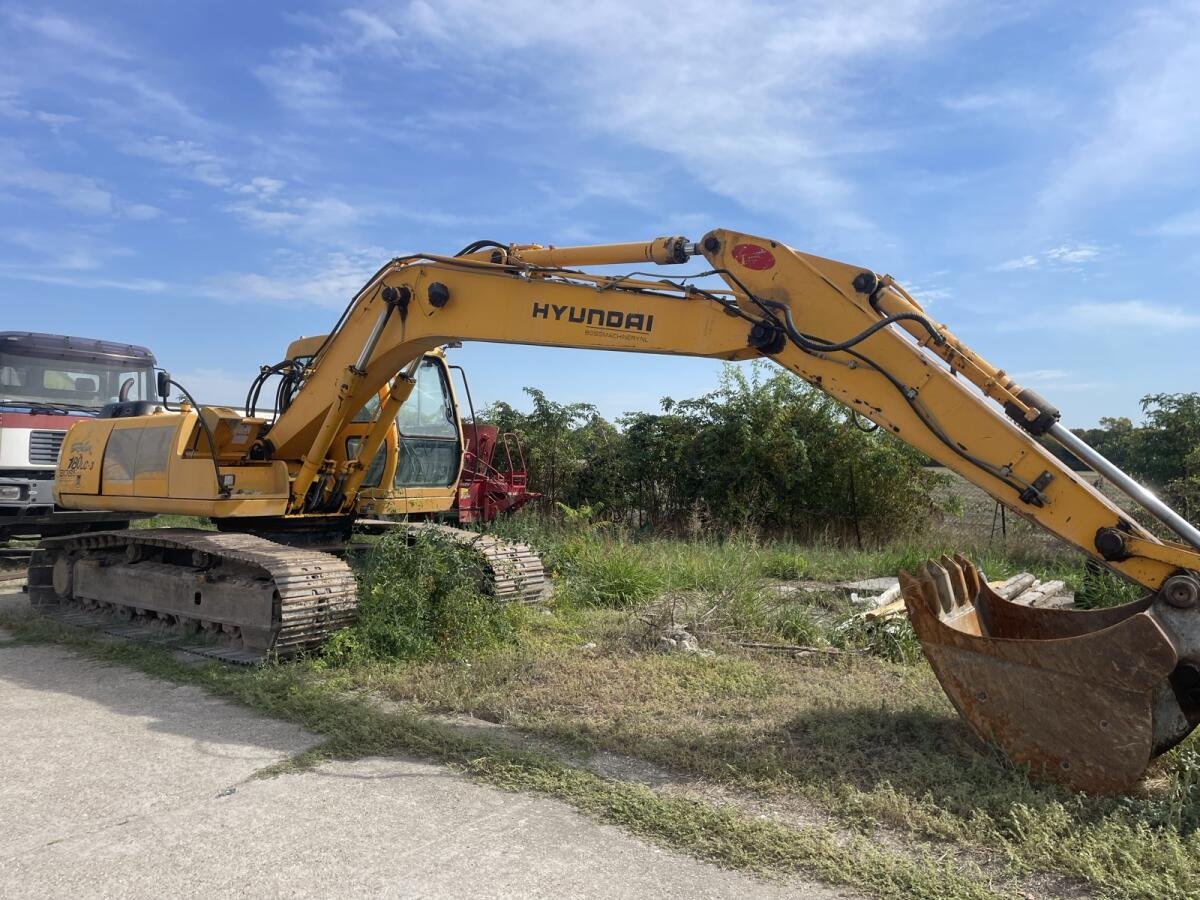

Hyundai R180LCD-7A

Series: Hyundai Hydraulic Excavator

Source: https://www.landwirt.com/kleinanzeigen/detail/bagger-hyundai

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The R180LCD-7A from Hyundai is part of the Hyundai Hydraulic Excavator series. The engine delivers 127.7 hp (86.5 kW), has 4 cylinders, with a displacement of 4,249.2 cm³. Torque is 467.8 Nm. Rated speed is 2,000 rpm. The unladen weight is 18,198.1 kg. Ground clearance is 460.2 mm. The tank holds 260.1 litres. Maximum torque is reached at 1,800 rpm. The pump delivers 336.1 l/min. The hydraulic tank holds 240.4 litres. Working pressure is 323.4 bar. The cooling system holds 28 litres. The oil fill is 17.8 litres. The electrical system runs on 24 V. The engine fitted is the D04FD-TAA. The Hyundai Hydraulic Excavator series covers 56 models. Rated output within it ranges from 95.3 to 517.1 hp; the R180LCD-7A sits at the bottom of that range with 127.7 hp. Its immediate neighbours are the R140LCM-7A below it with 120.7 hp and the R210LC-7 High Chassis above it with 152.1 hp. 391 Hyundai models across 22 series are on record. The model is listed under Excavators & compaction. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD04FD-TAAcorrect
Power127.7 hp (86.5 kW)correct
Rated speed2,000 rpmcorrect
Torque467.8correct
Speed at max. torque1,800 rpmcorrect
Cylinders4correct
Displacement4,249.2 cm³correct
AspirationTurbocharged and Charge air cooledcorrect
Coolant capacity28 lcorrect
Engine oil capacity17.8 lcorrect

Dimensions and weights

Ground clearance460.2correct
Unladen weight18,198.1 kgcorrect

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Pump flow336.1 l/mincorrect
Hydraulic oil capacity240.4 lcorrect
Hydraulic pressure323.4 barcorrect
Fuel tank capacity260.1 lcorrect

Other data

Cab height2,916.9correct

Where this model stands

Power-to-weight ratio: 4.8 kW/t (86 kW / 18.2 t)

Stronger than 34% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Hyundai R180LCD-7A have?

The Hyundai R180LCD-7A delivers 128 hp.

How much does the Hyundai R180LCD-7A weigh?

The unladen weight is 18,198 kg.

What engine does the Hyundai R180LCD-7A have?

4 cylinders, 4,249 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
