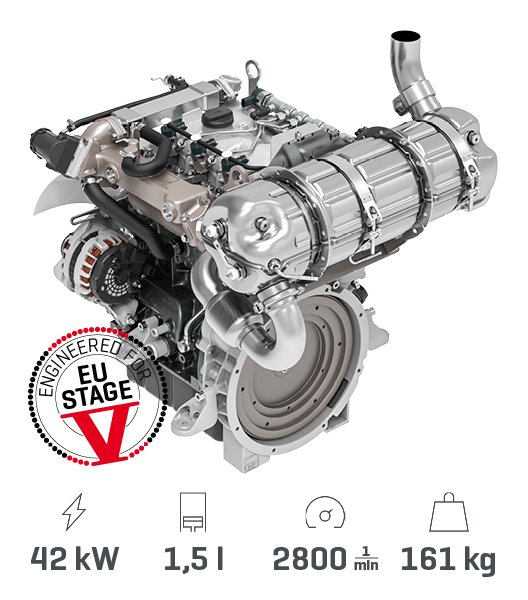

Hatz 3H50TIC

Built: 2018-2027 · Series: Other models

Source: https://www.hatz.com.au/en/products/diesel-engines/h-series/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 3H50TIC comes from Hatz. Production: 2018-2027. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 22 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Hatz range ranges from 2 to 39 kW; the 3H50TIC sits in the middle of that range with 22 kW. Its immediate neighbours are the 3L43C below it with 21 kW and the 3H50TICD above it with 23 kW. 126 Hatz models across 8 series are on record. The model is listed under Non-road diesel engines. 26 verified figures from 1 source are on file.

Technical data

Engine

Engine code1500-con-22.0correct
Engine familyKHZXL1.95C50; MHZXL1.95C50; NHZXL1.95C50; LHZXL1.95C50; JHZXL1.95C50correct
Engine familiesKHZXL1.95C50; MHZXL1.95C50; NHZXL1.95C50; LHZXL1.95C50; JHZXL1.95C50correct
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output22 kWcorrect
Power band19<=kW<37correct
Rated speed1,500 rpmcorrect
Maximum torque140.1 N·mcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders3correct
Cylinder layoutin linecorrect
Bore84 mmcorrect
Stroke88 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Charge-air coolingaircorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Version1500-con-22.0correct
Built from2018correct
Built to2022correct
Model year from2018correct
Model year to2027correct

Frequently asked questions

How much power does the Hatz 3H50TIC have?

The Hatz 3H50TIC delivers 22 kW.

When was the Hatz 3H50TIC built?

Production years: 2018-2027.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
