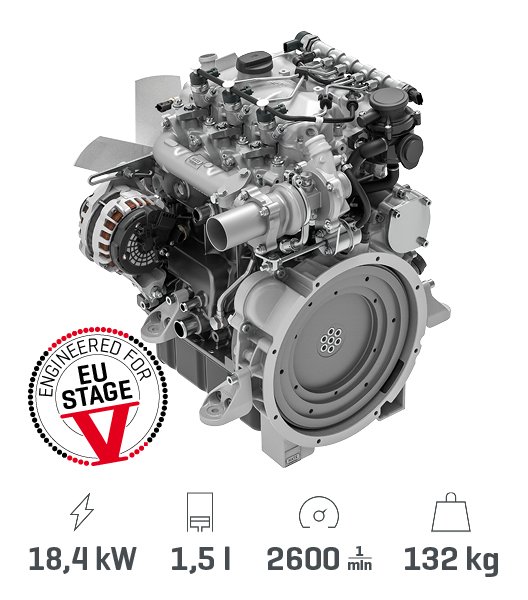

Hatz 3H50T

Built: 2020-2022 · Series: Other models

More machines from model year 2020

Source: https://www.hatz.com.au/en/products/diesel-engines/h-series/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Hatz 3H50T is a machine built by Hatz. Production: 2020-2022. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 18 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Hatz range ranges from 2 to 39 kW; the 3H50T sits in the middle of that range with 18 kW. Its immediate neighbours are the 2M41 below it with 15 kW and the 2L41C above it with 19 kW. 126 Hatz models across 8 series are on record. The model is listed under Non-road diesel engines. 25 verified figures from 1 source are on file.

Technical data

Engine

Engine code1500-18.4-concorrect
Engine familyLHZXL1.46M52; MHZXL1.46M52correct
Engine familiesLHZXL1.46M52; MHZXL1.46M52correct
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output18 kWcorrect
Power band8<=kW<19correct
Rated speed1,500 rpmcorrect
Maximum torque117.1 N·mcorrect
Speed at max. torque1,800 rpmcorrect
Cylinders3correct
Cylinder layoutin linecorrect
Bore84 mmcorrect
Stroke88 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Version1500-18.4-concorrect
Built from2020correct
Built to2021correct
Model year from2020correct
Model year to2026correct

Frequently asked questions

How much power does the Hatz 3H50T have?

The Hatz 3H50T delivers 18 kW.

When was the Hatz 3H50T built?

Production years: 2020-2022.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 25 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
