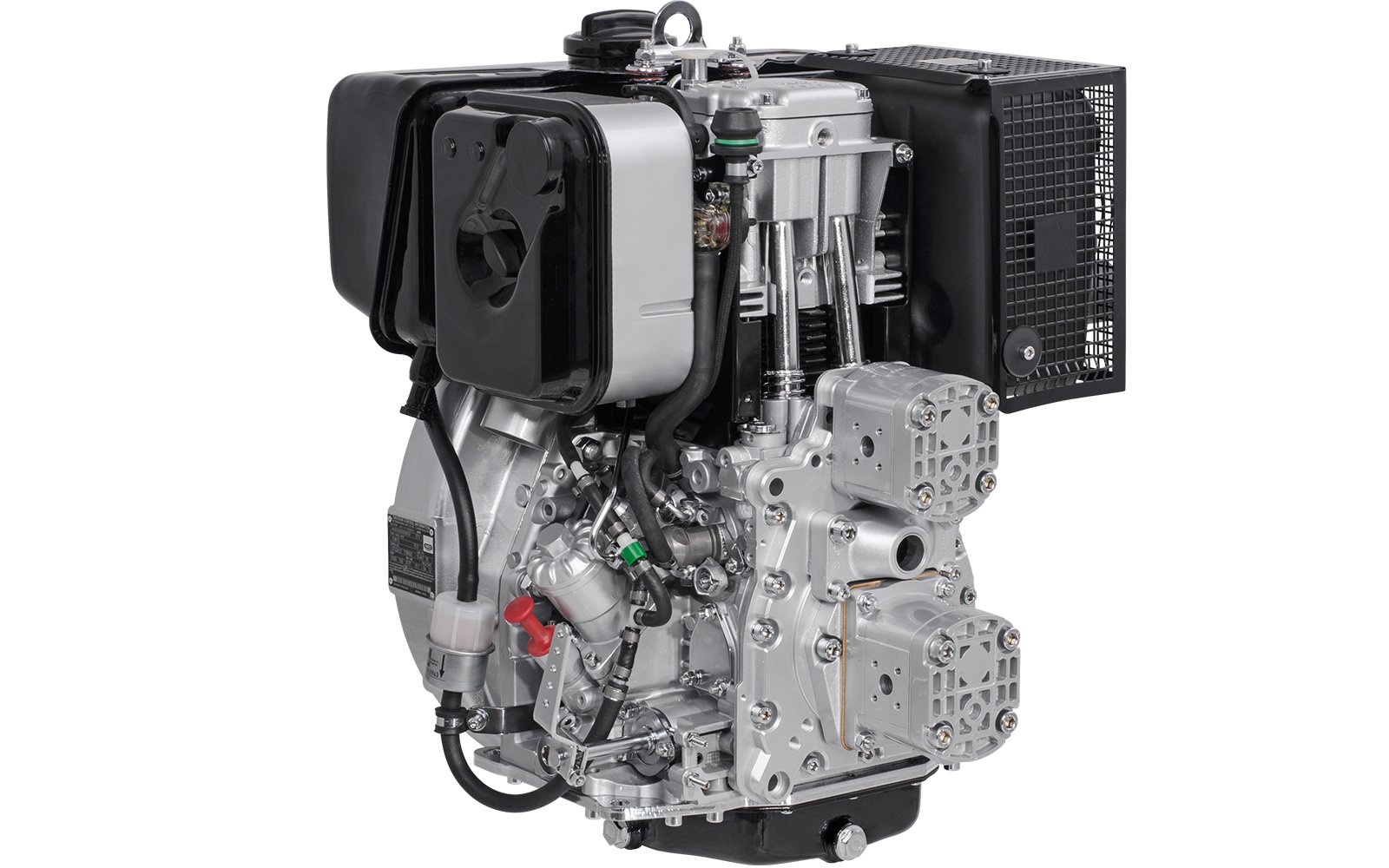

Hatz 1D81C

Built: 2012-2015 · Series: Other models

More machines from model year 2012

Source: https://hatz.com/en-united-states/products/engines/d-series

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Hatz 1D81C is a machine built by Hatz. Production: 2012-2015. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 10 kW. The engine is naturally aspirated. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Hatz range ranges from 2 to 39 kW; the 1D81C sits in the lower part of that range with 10 kW. Its immediate neighbours are the 1cs-D81C below it with 8 kW and the 1D90 S/Z/W/V above it with 11 kW. 126 Hatz models across 8 series are on record. The model is listed under Non-road diesel engines. 24 verified figures from 1 source are on file.

Technical data

Engine

Engine codeD81C-3000correct
Engine familyCHZXL.667C82correct
Engine familiesCHZXL.667C82correct
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output10 kWcorrect
Power band8<=kW<19correct
Rated speed3,000 rpmcorrect
Maximum torque30.2 N·mcorrect
Speed at max. torque3,000 rpmcorrect
Cylinders1correct
Cylinder layoutin linecorrect
Bore100 mmcorrect
Stroke85 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationnaturally aspiratedcorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

VersionD81C-3000correct
Built from2012correct
Built to2012correct
Model year from2012correct
Model year to2019correct

Frequently asked questions

How much power does the Hatz 1D81C have?

The Hatz 1D81C delivers 10 kW.

When was the Hatz 1D81C built?

Production years: 2012-2015.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
