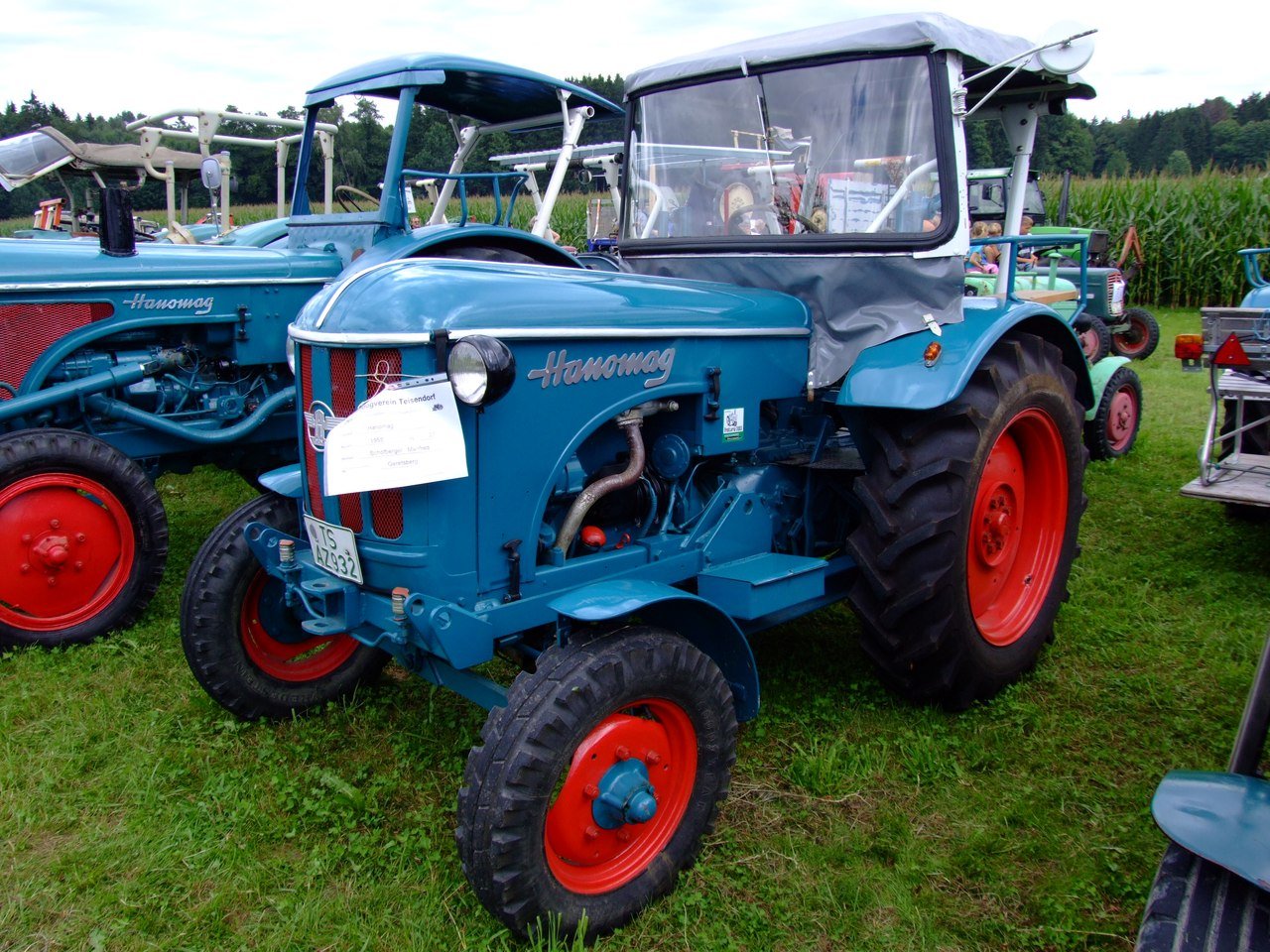

Hanomag R324 E
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hanomag – other models: collective page of German tractors outside the named ranges, from the R types through Granit, Brillant and Perfekt to the articulated Combitrac, 8.8 to 63 kW
This page gathers the Hanomag tractors the register could not assign to a named range, from the early pre-war R types to the post-war Granit, Brillant, Perfekt and Robust ranges and the articulated Combitrac models. Hanomag, the Hannoversche Maschinenbau AG, sold its farm-equipment division to Massey-Ferguson in 1971 and ended tractor production afterwards. The R types such as the R16, R22 or R40 carry roughly their power in hp in the number, while Combitrac models such as the C218 and R440 Combitrac are articulated four-wheel-drive tractors for use in vineyards and orchards.
Read on 3 more paragraphs
The register lists here 56 versions with 8.8 to 63 kW from one- to six-cylinder engines of 511 to 5,702 cm³, unladen weights of 800 to 3,750 kg, lengths of 2,340 to 3,990 mm, widths of 1,480 to 2,110 mm and heights of 1,450 to 2,390 mm; torque ranges from 117 to 265 Nm at rated speeds of 1,100 to 2,600 rpm. Most models run on diesel, a few early types on crude oil, and the R40 Holzgas on a wartime wood-gas unit.
In the 1950s and 1960s Hanomag was among the significant German tractor makers alongside Fendt, Deutz and Eicher, focused on mid-sized yard and field tractors as well as the specialised articulated Combitrac for special crops.
When buying used, on the older R types the cooling system, injection pump and gearbox condition matter, on the Combitrac models additionally the articulation joint and four-wheel-drive bearings; parts are now only found through Hanomag specialists and reproduction-parts makers.
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 27 hp (20 kW)correct |
| Rated speed | 1,900 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,099 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,750 mmcorrect |
|---|---|
| Height | 1,660 mmcorrect |
| Wheelbase | 1,700 mmcorrect |
| Unladen weight | 1,520 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|---|
| Gearbox | 10/2-Getriebecorrect |
| Forward gears | 10correct |
| Reverse gears | 2correct |
| Top speed | 19.5 km/hcorrect |
Working data
| Fuel tank capacity | 45 lcorrect |
|---|
Origin and approval
| Plant | Germanycorrect |
|---|
Where this model stands
Power-to-weight ratio: 13.2 kW/t (20 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 15% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hanomag R324 E have?
The Hanomag R324 E delivers 27 hp.
How much does the Hanomag R324 E weigh?
The unladen weight is 1,520 kg.
What engine does the Hanomag R324 E have?
3 cylinders, 2,099 cm³ displacement, Diesel.
How fast does the Hanomag R324 E go?
Top speed is 19.5 km/h.
What are the dimensions of the Hanomag R324 E?
2,750 mm × 1,660 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
