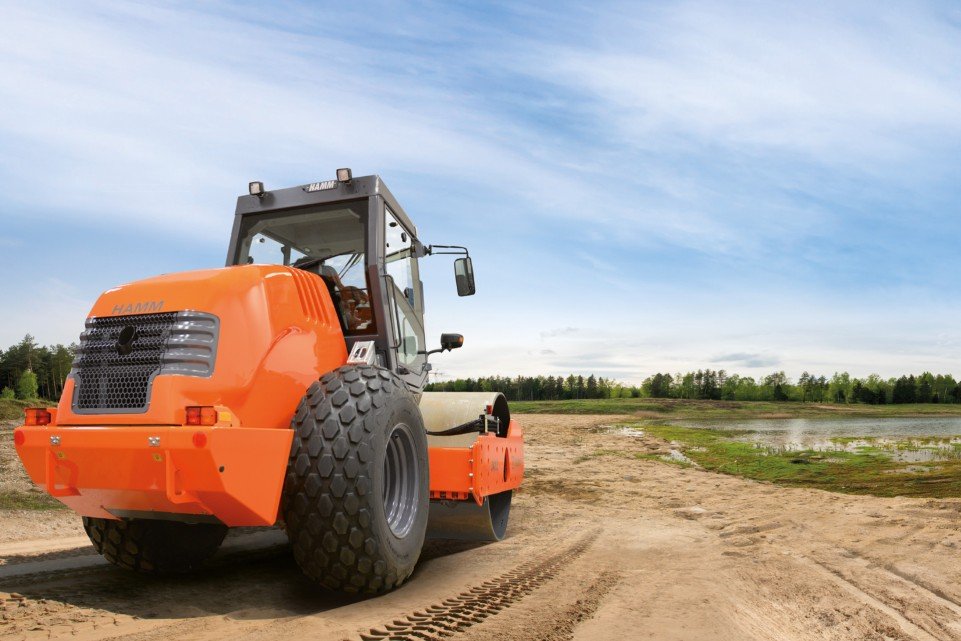

Hamm 3518P

Series: Hamm Vibratory Compactor

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Hamm Vibratory Compactor series from Hamm includes the 3518P. The engine delivers 210.8 hp (155 kW), has 6 cylinders, with a displacement of 7,200.5 cm³. The engine comes from DEUTZ. Rated speed is 2,300 rpm. The unladen weight is 19,760 kg. The wheelbase measures 3,165.1 mm. Ground clearance is 425.2 mm. Top speed is 11.1 km/h. The tank holds 290.3 litres. The engine fitted is the TCD 2012 L06. The Hamm Vibratory Compactor series covers 27 models. Rated output within it ranges from 65.3 to 217.6 hp; the 3518P sits at the top of that range with 210.8 hp. Its immediate neighbours are the H16i P below it with 156.4 hp and the H18i P above it with 217.6 hp. 150 Hamm models across 3 series are on record. The model is listed under Road construction. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine makeDEUTZcorrect
Engine modelTCD 2012 L06correct
Power210.8 hp (155 kW)correct
Rated speed2,300 rpmcorrect
Cylinders6correct
Displacement7,200.5 cm³correct

Dimensions and weights

Length6,211.8correct
Width2,392.7correct
Wheelbase3,165.1correct
Ground clearance425.2correct
Unladen weight19,760 kgcorrect

Drivetrain and chassis

Top speed11.1 km/hcorrect

Working data

Fuel tank capacity290.3 lcorrect

Other data

Height3,051correct

Where this model stands

Power-to-weight ratio: 7.8 kW/t (155 kW / 19.8 t)

Stronger than 72% of the compaction equipment in the register — out of 223 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Hamm 3518P have?

The Hamm 3518P delivers 211 hp.

How much does the Hamm 3518P weigh?

The unladen weight is 19,760 kg.

What engine does the Hamm 3518P have?

6 cylinders, 7,200 cm³ displacement.

How fast does the Hamm 3518P go?

Top speed is 11.1 km/h.

What are the dimensions of the Hamm 3518P?

6,212 mm × 2,393 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
