Start › Mobile & rough terrain cranes › Grove › RT540E

Grove RT540E

Series: Grove Rough Terrain Crane

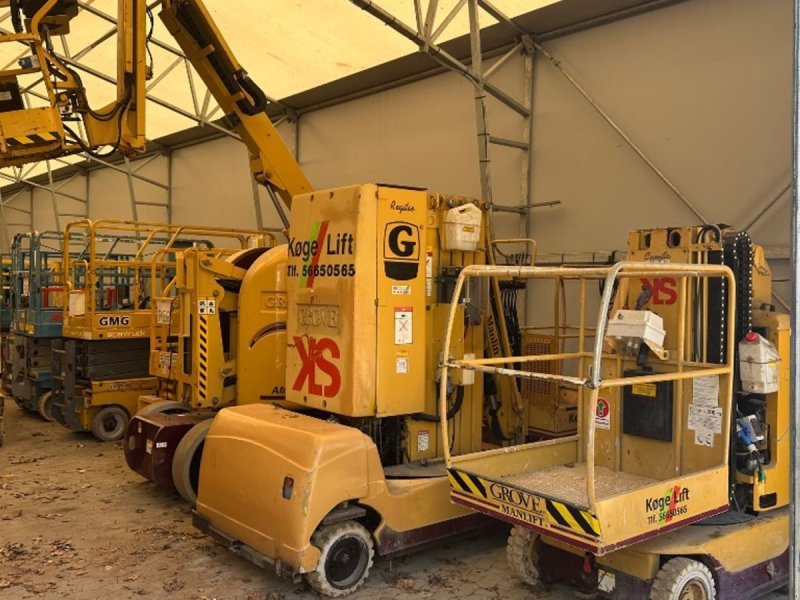

The photo shows the RT520 from the same series. Source: https://www.technikboerse.com/gebraucht/hebebuehne-arbeitsbu

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The RT540E from Grove is part of the Grove Rough Terrain Crane series. The engine delivers 161.8 hp (119 kW), with a displacement of 6,700.7 cm³. Torque is 732 Nm. Rated speed is 2,500 rpm. The unladen weight is 27,273 kg. Ground clearance is 475.5 mm. The tank holds 219.2 litres. The gearbox has 6 forward gears. There are also 6 reverse gears. Maximum torque is reached at 1,500 rpm. The hydraulic tank holds 396.3 litres. The electrical system runs on 12 V. The engine fitted is the QSB 6,7L. Tyre size: 20,5x25-24 bias. The Grove Rough Terrain Crane series covers 81 models. Rated output within it ranges from 106.1 to 608.3 hp; the RT540E sits at the bottom of that range with 161.8 hp. Its immediate neighbours are the RT630C below it with 157.8 hp and the RT530E-2 above it with 166 hp. 338 Grove models across 8 series are on record. The model is listed under Cranes & access platforms. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine modelQSB 6.7Lcorrect
Power161.8 hp (119 kW)correct
Rated speed2,500 rpmcorrect
Torque732correct
Speed at max. torque1,500 rpmcorrect
Displacement6,700.7 cm³correct

Dimensions and weights

Ground clearance475.5correct
Unladen weight27,273 kgcorrect

Drivetrain and chassis

Gearbox typerange-shiftcorrect
Forward gears6correct
Reverse gears6correct
Tyre size20.5x25-24 biascorrect
System voltage12 Vcorrect

Working data

Hydraulic oil capacity396.3 lcorrect
Fuel tank capacity219.2 lcorrect

Where this model stands

Power-to-weight ratio: 4.4 kW/t (119 kW / 27.3 t)

Stronger than 18% of the mobile & rough terrain cranes in the register — out of 591 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Grove RT540E have?

The Grove RT540E delivers 162 hp.

How much does the Grove RT540E weigh?

The unladen weight is 27,273 kg.

What engine does the Grove RT540E have?

6,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 16 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
