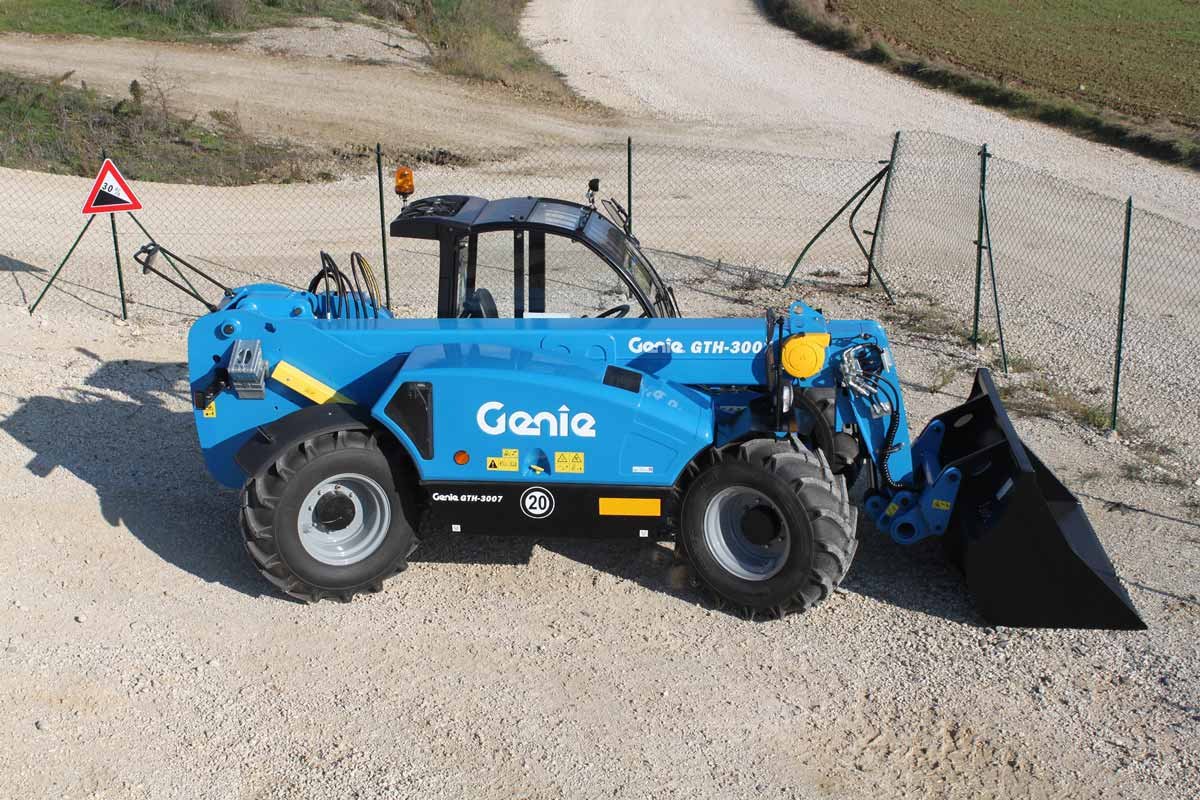

Genie GTH3007

Series: Genie Telescopic Forklift

Source: https://www.lectura-specs.com/en/model/forklifts/telehandler

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the GTH3007, Genie offers a model from the Genie Telescopic Forklift series. The engine delivers 92.5 hp (68 kW), has 4 cylinders, with a displacement of 3,100.4 cm³. Rated speed is 2,500 rpm. The unladen weight is 5,900 kg. The wheelbase measures 2,660.9 mm. Ground clearance is 502.9 mm. The tank holds 90.1 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. The pump delivers 87.1 l/min. The hydraulic tank holds 80.3 litres. Working pressure is 280 bar. The engine fitted is the TD2011 L04W. Tier III. Tyre size: 405/70-20 PR14. The Genie Telescopic Forklift series covers 20 models. Rated output within it ranges from 63.9 to 161.8 hp; the GTH3007 sits in the lower part of that range with 92.5 hp. Its immediate neighbours are the GTH3512 below it with 81.6 hp and the GTH644 above it with 100.4 hp. 144 Genie models across 9 series are on record. The model is listed under Telehandlers. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine modelTD2011 L04W, Tier IIIcorrect
Power92.5 hp (68 kW)correct
Rated speed2,500 rpmcorrect
Cylinders4correct
Displacement3,100.4 cm³correct
Aspirationturbochargedcorrect

Dimensions and weights

Wheelbase2,660.9correct
Ground clearance502.9correct
Unladen weight5,900 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect
Forward gears2correct
Reverse gears2correct
Tyre size405/70-20 PR14correct

Working data

Pump flow87.1 l/mincorrect
Hydraulic oil capacity80.3 lcorrect
Hydraulic pressure280correct
Fuel tank capacity90.1 lcorrect

Where this model stands

Power-to-weight ratio: 11.5 kW/t (68 kW / 5.9 t)

Stronger than 28% of the telehandlers in the register — out of 658 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Genie GTH3007 have?

The Genie GTH3007 delivers 92.5 hp.

How much does the Genie GTH3007 weigh?

The unladen weight is 5,900 kg.

What engine does the Genie GTH3007 have?

4 cylinders, 3,100 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
