FSD EMSA100L2-2

Series: Other models

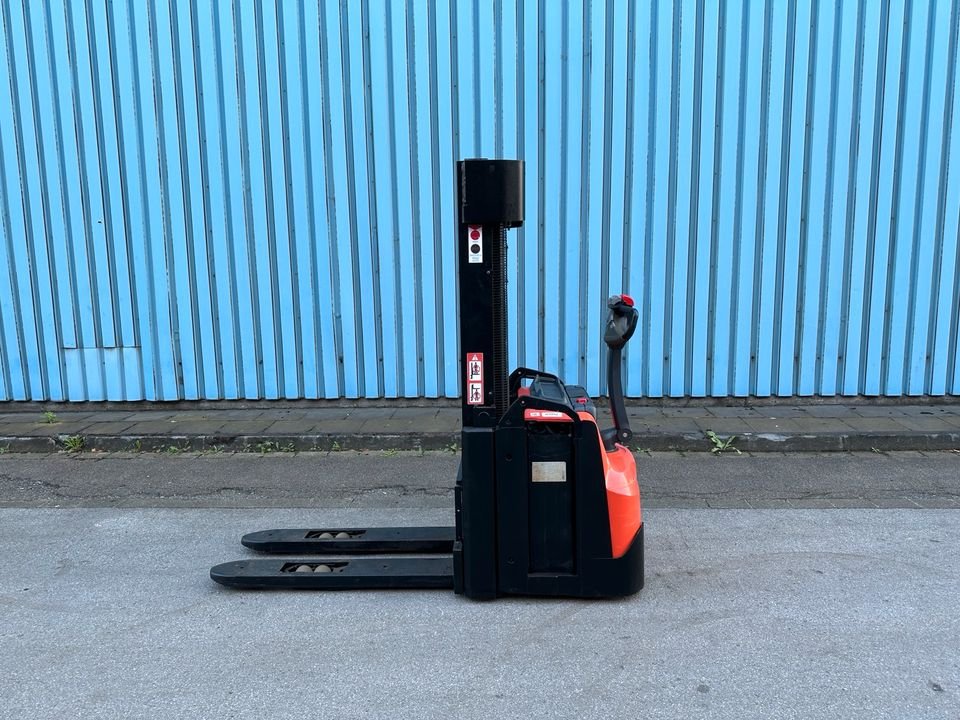

The photo shows the SSWE160L-2 from the same series. Source: https://www.kleinanzeigen.de/s-anzeige/bt-toyota-swe160l-hoc

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The FSD EMSA100L2-2 is a three-phase induction motor built by FSD. The rated output is 4 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The housing is frame size 100 L in foot-mounted form. The protection class is IP55. The efficiency is 87.2 per cent at full load, 85.9 per cent at 75 per cent load and 82.3 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B14, B34 and B35. The motor is built in China. The figures come from the Australian MEPS register under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the FSD range ranges from 2.2 to 75 kW; the EMSA100L2-2 sits at the bottom of that range with 4 kW. Its immediate neighbours are the EMSA90L2-2 below it with 3 kW and the 540H075622E3 above it with 5.5 kW. 28 FSD models are on record. The model is listed under Electric motors. 21 verified figures from 1 source are on file.

Technical data

Engine

Rated output4 kWcorrect

Electrical data

Number of poles2correct
Protection classIP55correct
Frame size100 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B14, B34, B35correct
Efficiency at full load87.17 %correct
Efficiency at 75 % load85.86 %correct
Efficiency at half load82.32 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the FSD EMSA100L2-2 have?

The FSD EMSA100L2-2 delivers 4 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
