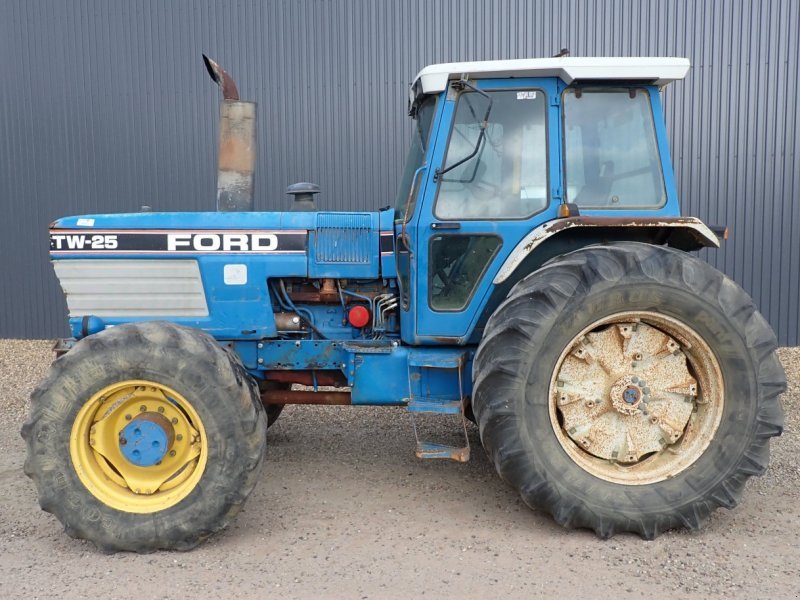

Ford TW-25
Built: 1990-1990 · Series: Other models
← Predecessor: TW-20
More machines from model year 1990
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Ford TW-25 is a tractor built in 1990. Under the bonnet works a six-cylinder engine displacing 6.6 litres, producing 113 kW.
Power is transmitted through a Creeper box option gearbox, drive type: 2-WD or 4-WD versions. Dimensions are 4.90 m by 2.55 m. Empty, it weighs 7,600 kg.
It runs on diesel; the engine is water-cooled. As standard, it runs on 11 x 16 (2-wd); 14.9 x 28 (4-wd) tyres at the front and 18.4 x 38 at the rear. The predecessor was the Ford TW-20. Within the range, rated power spans from 9.7 to 300 kW; with 113 kW, the TW-25 sits in the upper third. Directly alongside are the TW-20 with 110 kW below and the TW-30 with 120 kW above.
Ford – other models: the collective page of tractors outside the named ranges, from the Thousand series through the 10 series to the articulated tractors with Cummins and Caterpillar engines, 10 to 300 kW
This page gathers the Ford tractors the register could not assign to a named range – from small utility tractors of the North American and British plants to the heavy articulated tractors of the Versatile brand, taken over by Ford in the late 1980s. Ford had built farm tractors since 1917, first in Dearborn, from the 1930s also in Dagenham, England; the post-war 600 to 900 models led in 1965 into the Thousand series (2000, 3000, 4000, 5000), replaced in 1975 by the generation with a leading 0. From 1981 came the 10 series (2110 to 8210), in which the first two digits give the size and the last the generation; SU marks the narrow-track Utility version. The big articulated tractors, formerly built under the Versatile name in Winnipeg, ran from 1987 as the Ford FW with Cummins and Caterpillar engines; after the merger with New Holland in 1991 the independent Ford range ended.
Read on 3 more paragraphs
The register lists here 237 versions with 9.7 to 300 kW from two- to eight-cylinders of 1,390 to 14,801 cm³, PTO outputs up to 163 hp, unladen weights from 1,061 to 14,200 kg, gross weights from 2,280 to 11,400 kg, lengths from 2,410 to 7,600 mm and widths from 1,070 to 2,845 mm; the engines are mostly Ford's own, Cummins and Caterpillar in the big articulated tractors.
For decades Ford was, alongside International Harvester, Massey Ferguson and John Deere, one of the best-selling tractor brands of North America and Europe, focused on utility tractors for family farms; the FW-range articulated tractors competed in the top power segment with Steiger and Case IH.
On used tractors, engine condition, clutch and gearbox synchros count on the older ranges, hydraulics and electrics on the 10 series, and on the articulated tractors operating hours, condition of the four-wheel drive and tyres, and parts supply for the Cummins or Caterpillar engines, which today runs outside the Ford network.
Sources: Kennwerte der Modelle Ford (weitere Modelle), New Holland (Rechtsnachfolger von Ford New Holland)
Technical data
Engine
| Engine make | Ford Enginescorrect |
|---|---|
| Engine model | ?correct |
| Fuel | dieselcorrect |
| Power | 154 hp(engine); 94 hp(drawbar); 110 hp(PTO) hp (113 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 550 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,578 cm³ (401 cu inches (6.6 litres))correct |
| Bore | 4.4 inches (112 mm)correct |
| Stroke | 4.4 inches (112 mm)correct |
| Turbocharger | yescorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,900 mmcorrect |
|---|---|
| Length | 145 inches (4450 mm)correct |
| Width | 2,550 mmcorrect |
| Width | 104.5 inches (2650 mm)correct |
| Height | 2,895 mmcorrect |
| Height | 116 inches (2950 mm) (cab)correct |
| Wheelbase | 110 inches (2800 mm)correct |
| Turning circle | 42 feet (12.8 m) 4-wdcorrect |
| Unladen weight | 7,600 kg (14,300 lbs (6,500 kg))correct |
| Gross vehicle weight | 11,400 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | Creeper box optioncorrect |
| Gearbox make | Fordcorrect |
| Forward gears | 16 or 24correct |
| Reverse gears | 4 or 6correct |
| Front tyres | 11 x 16 (2-wd); 14.9 x 28 (4-wd)correct |
| Rear tyres | 18.4 x 38correct |
| Top speed | 30 km/hcorrect |
Working data
| Lifting capacity | 10, 500 lb (4, 500 kg)correct |
|---|---|
| Fuel tank capacity | 378 l (100 gal (378 litres))correct |
Origin and approval
| Plant | Basildon, UKcorrect |
|---|---|
| Version | Mark IIcorrect |
| Units built | ?correct |
| Cab | Ford 'Bubble cab'correct |
Other data
| Cab make | Fordcorrect |
|---|---|
| Front linkage | optioncorrect |
| Linkage category | Cat IIIcorrect |
| PTO output | 110 hpcorrect |
| PTO speed | ?correct |
| Predecessor | Ford TW-20correct |
| Successor | ?correct |
Where this model stands
Power-to-weight ratio: 14.9 kW/t (113 kW / 7.6 t)
Power class: Large (100–180 hp)
Stronger than 84% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford TW-25 have?
The Ford TW-25 delivers 113 kW.
How much does the Ford TW-25 weigh?
The unladen weight is 7,600 kg.
What is the gross vehicle weight of the Ford TW-25?
11,400 kg.
What engine does the Ford TW-25 have?
6 cylinders, 6,578 cm³ displacement, Diesel.
How fast does the Ford TW-25 go?
Top speed is 30 km/h.
What is the PTO output of the Ford TW-25?
PTO output is 110 hp.
What are the dimensions of the Ford TW-25?
4,900 mm × 2,550 mm × 2,895 mm.
When was the Ford TW-25 built?
Production years: 1990.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
