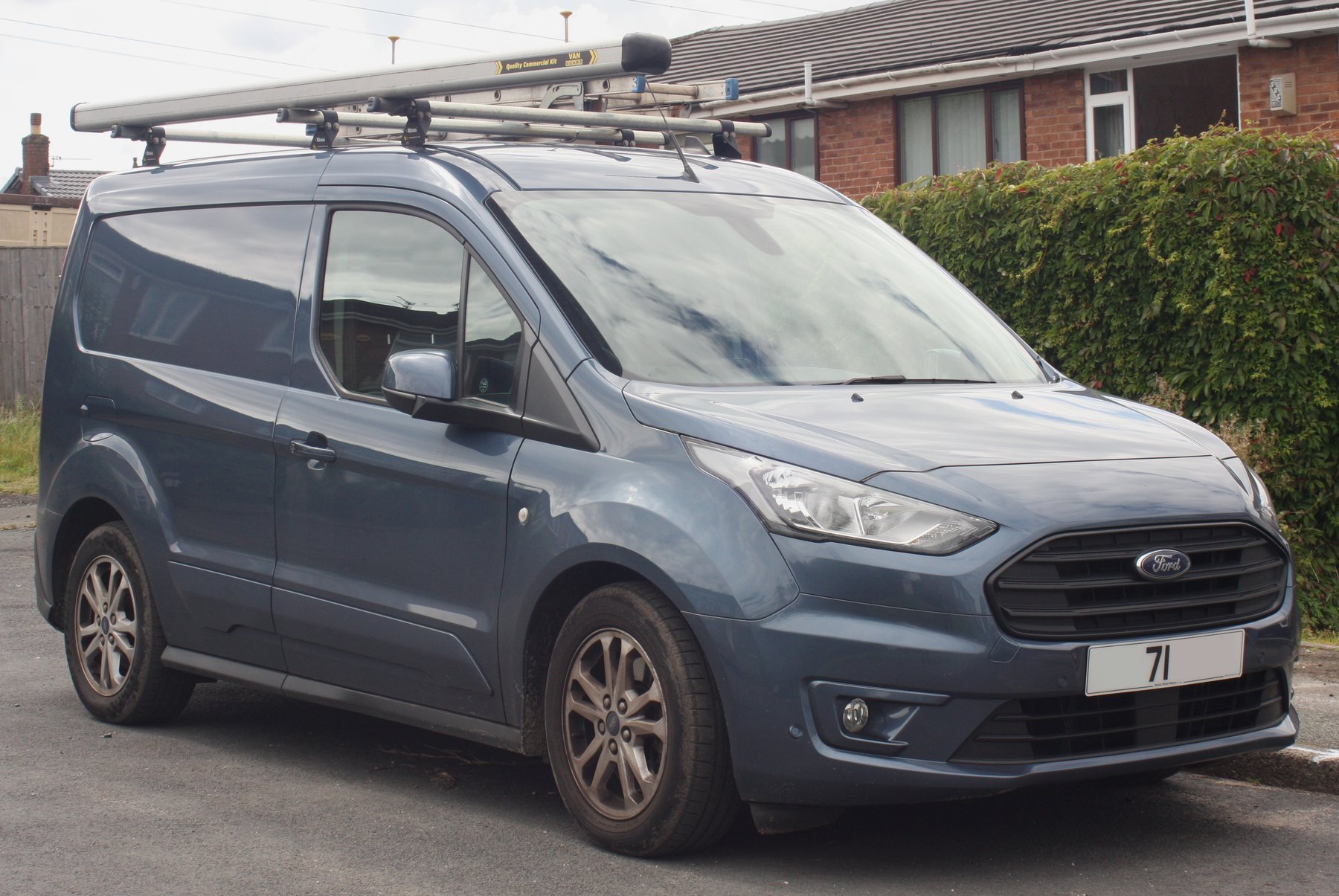

Ford TRANSIT CONNECT, 1.5 TDCI
Built: 2017-2019 · Series: Transit
More machines from model year 2017
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford Transit — L and H matter more than the engine figure
On a Transit it is not the engine that decides whether the vehicle suits the work but two codes: L for length, H for roof height. L1 is the shortest wheelbase, L4 the longest; H1 the flat roof, H3 the high roof. An L3H2 is therefore long with a medium roof. Anyone who knows their load can read from that, before any viewing, whether it will fit.
Read on 4 more paragraphs
This L/H system is not a Ford peculiarity. Mercedes, Volkswagen, Renault, Peugeot and Citroën use the same codes. It allows vans of different brands to be compared directly — though the centimetres behind them differ by manufacturer. The step is comparable, the measurement is not.
Which steps a given year offers changes across the generations. Not every Transit comes in all four lengths, and the shortest step offered is not called L1 in every generation. Anyone who depends on the centimetre should check the interior measurement of the actual vehicle, not just the code.
The second decision is drive. The Transit comes with front-, rear- and all-wheel drive. Front drive gives a lower loading lip and more traction when empty, rear drive carries heavy loads better and tows more. Anyone regularly running fully loaded or towing should look harder here than at the engine.
Alongside the Transit there are the smaller Transit Custom, the Transit Connect and the Transit Courier. The names are similar, the vehicles are not: these are separate ranges of different sizes. Listings mix them regularly — checking gross vehicle weight and load length separates them more reliably than the name does.
Sources: Van Guide: Ford Transit dimensions, Van Shelves: L/H codes decoded, BAS World
Technical data
Engine
| Power | 73.5 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 1,499 cm³correct |
Dimensions and weights
| Length | 4,825 mmcorrect |
|---|---|
| Width | 1,840 mmcorrect |
| Wheelbase | 2,660 mmcorrect |
| Unladen weight | 1,458 kgcorrect |
| Gross vehicle weight | 2,235 kgcorrect |
Drivetrain and chassis
| Gears | 6correct |
|---|---|
| Wheels | 4correct |
Where this model stands
Power-to-weight ratio: 50.4 kW/t (74 kW / 1.5 t)
Stronger than 32% of the vans in the register — out of 7,144 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford TRANSIT CONNECT, 1.5 TDCI have?
The Ford TRANSIT CONNECT, 1.5 TDCI delivers 73.5 kW.
How much does the Ford TRANSIT CONNECT, 1.5 TDCI weigh?
The unladen weight is 1,458 kg.
What is the gross vehicle weight of the Ford TRANSIT CONNECT, 1.5 TDCI?
2,235 kg.
What engine does the Ford TRANSIT CONNECT, 1.5 TDCI have?
4 cylinders, 1,499 cm³ displacement.
What are the dimensions of the Ford TRANSIT CONNECT, 1.5 TDCI?
4,825 mm × 1,840 mm.
When was the Ford TRANSIT CONNECT, 1.5 TDCI built?
Production years: 2017-2019.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
1 current listings for Ford TRANSIT CONNECT, 1.5 TDCI on Hutnia.com.
View offers on Hutnia.com →
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
