Ford 8630
Built: 1990-1993 · Series: Other models
← Predecessor: TW-25 · Successor: 8670 →
More machines from model year 1990
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

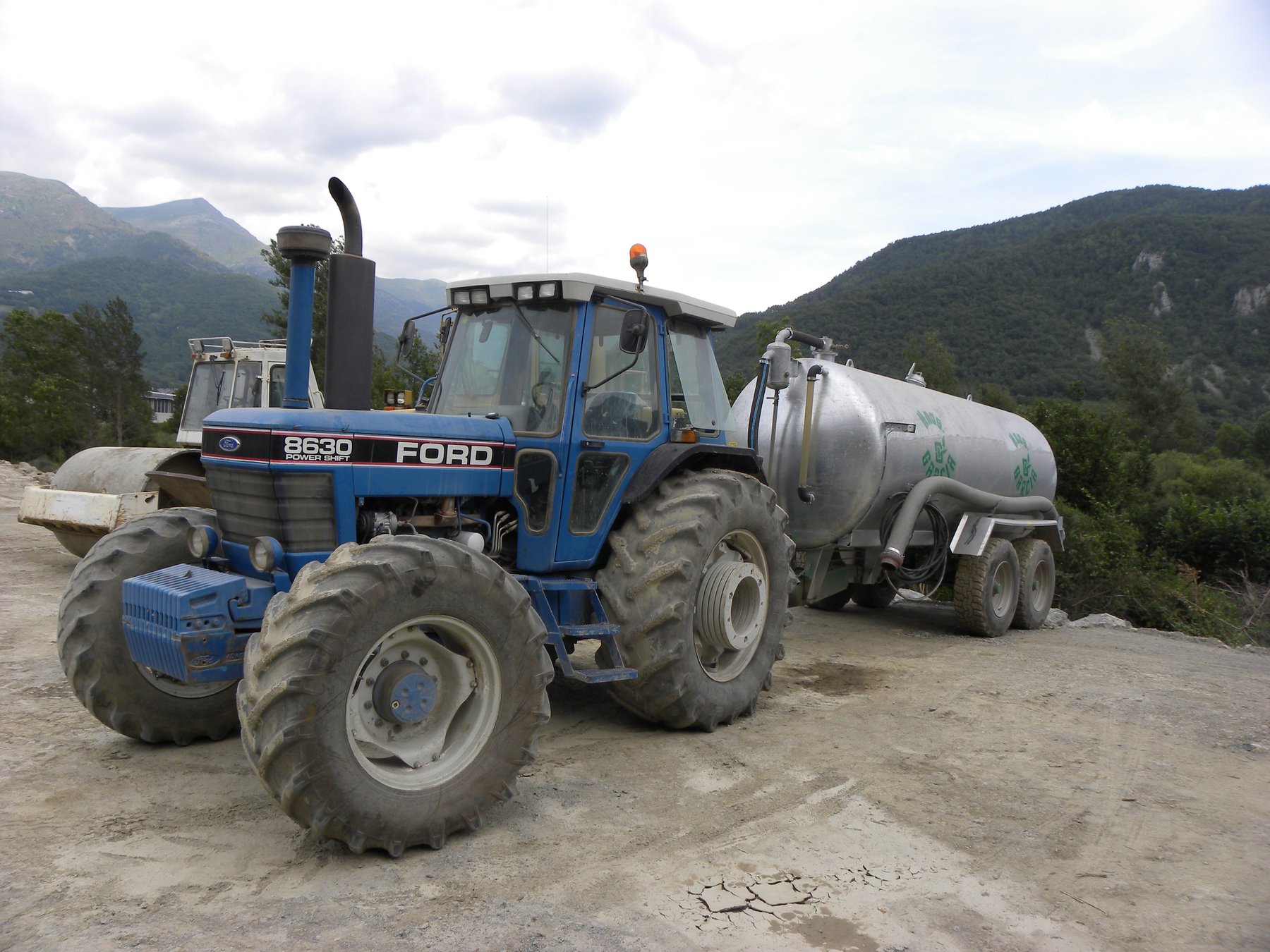

The Ford 8630 rolled off the line in 1990-1993 as a tractor. Fitted is a six-cylinder engine.
It combines a Powershift / Dual Power / Std (Constant Mesh) gearbox with 2-WD or 4-WD (option).
It runs on diesel; the engine is water-cooled. As standard, it runs on 11.0x16 (2-WD) 14.9/13x28 (4WD) tyres at the front and 18.4/15x38 (2-WD) + (4-WD) at the rear. It replaced the Ford TW-25 and was in turn replaced by the Ford 8670.
Technical data
Engine
| Engine make | Fordcorrect |
|---|---|
| Engine model | ?correct |
| Fuel | dieselcorrect |
| Power | 121 hpcorrect |
| Cylinders | 6correct |
| Displacement | 401 cu inches (6.6 litre)correct |
| Bore | 4.4 inch (112 mm)correct |
| Stroke | 4.4 inch (112 mm)correct |
| Turbocharger | yescorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 172 inches (4360 mm)correct |
|---|---|
| Width | 82 inch (2080 mm)correct |
| Height | 114 inch (2, 900 mm) (Cab)correct |
| Wheelbase | 105 inches (2660 mm)correct |
| Unladen weight | 11, 500/14, 000 lbs (5150 / 6, 300 kg)correct |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | powershift transmission / Dual Power / Std (constant-mesh gearbox)correct |
| Gearbox make | Fordcorrect |
| Forward gears | 18 / 16 / 8correct |
| Reverse gears | 9 / 4 / 2correct |
| Clutch | No / yes / yescorrect |
| Front tyres | 11.0x16 (2-WD) 14.9/13x28 (4WD)correct |
| Rear tyres | 18.4/15x38 (2-WD) + (4-WD)correct |
Working data
| Lifting capacity | 4, 020 lbs (1823 kg])correct |
|---|---|
| Fuel tank capacity | 33 gal (us) (125 litres)correct |
Origin and approval
| Plant | Belgiumcorrect |
|---|---|
| Cab | Super Qcorrect |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| Predecessor | Ford TW-25correct |
| Successor | Ford 8670correct |
Frequently asked questions
How much power does the Ford 8630 have?
The Ford 8630 delivers 121 hp.
What engine does the Ford 8630 have?
6 cylinders, Diesel.
When was the Ford 8630 built?
Production years: 1990-1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 32 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
