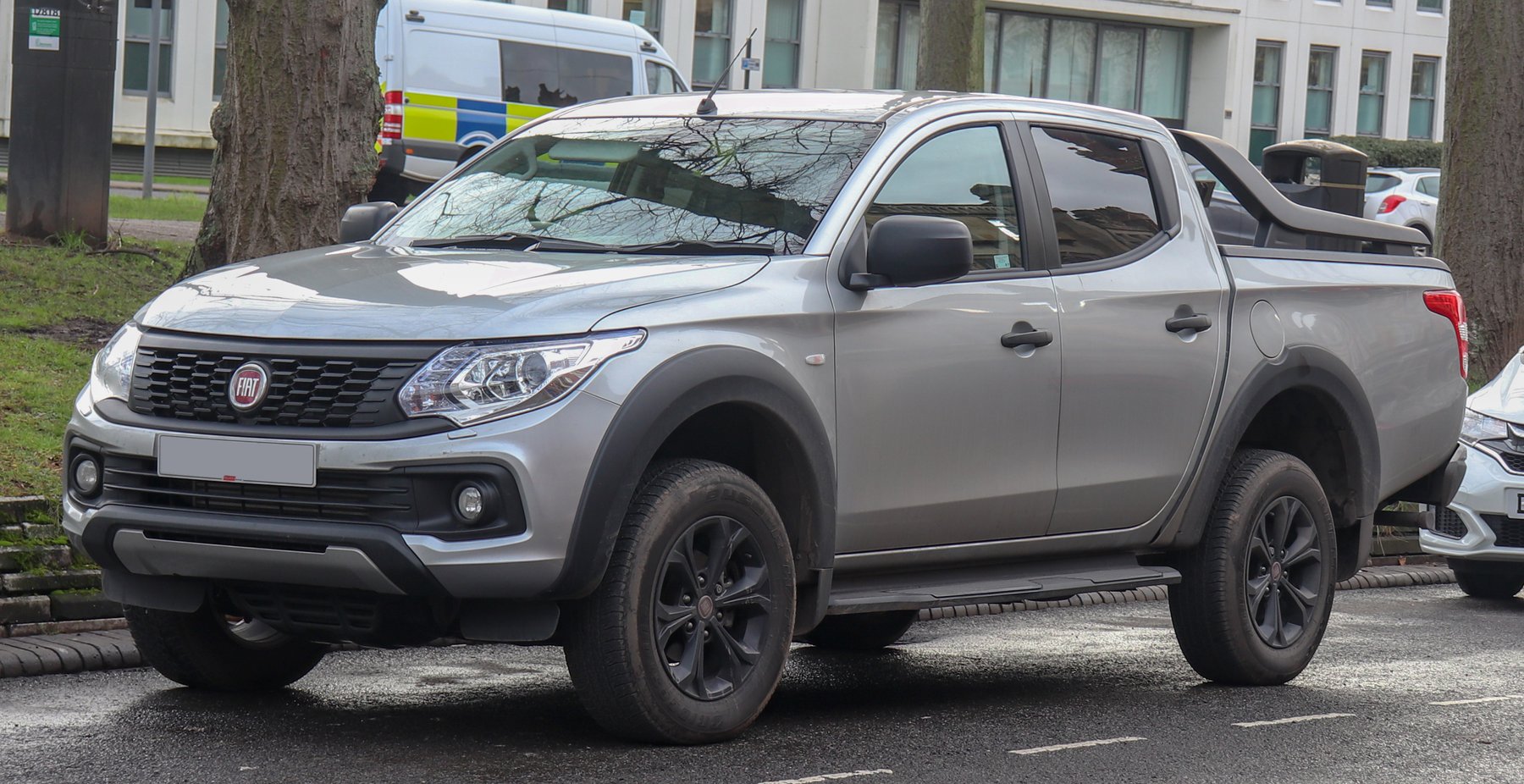

Fiat FULLBACK

Built: 2016-2019 · Series: Vans up to 3.5 t (Class N1)

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The FULLBACK comes from Fiat. Production: 2016-2019. The engine delivers 133 kW, has 4 cylinders, with a displacement of 2,442 cm³. The machine is 5,305 mm long and 1,815 mm wide. The unladen weight is 2,025 kg. The wheelbase measures 3,000 mm. Top speed is 179 km/h. Transmission: 6-speed manual gearbox; 5-speed automatic gearbox. The gross vehicle weight is 2,905 kg. The machine runs on 4 wheels. The fuel is diesel. The gearbox offers 6 gears. Rated output across the Fiat range ranges from 14 to 280 kW; the FULLBACK sits in the middle of that range with 133 kW. Its immediate neighbours are the 180-90 Dt below it with 132 kW and the 44-23 above it with 170 kW. 2234 Fiat models across 27 series are on record. The model is listed under Vans. 34 verified figures from 3 sources are on file.

Fiat Ducato and siblings — built alongside Peugeot and Citroën

In the N1 class of vans up to 3.5 tonnes, Fiat runs several distinct ranges: the large Ducato, the compact Doblò and Fiorino, and the mid-size Talento and Scudo. The key fact about the Ducato is that it is not a fully standalone Fiat design: it is built alongside the Peugeot Boxer and Citroën Jumper on the same technical base — body, chassis, engines, gearboxes and largely the interior are identical, with the visible differences between the three badges limited mainly to logo, grille, headlights and infotainment.

Read on 4 more paragraphs

Ducato, Boxer and Jumper are all built at the Sevel plant in Val di Sangro, near Atessa in Italy. Sevel stands for Società Europea Veicoli Leggeri, a joint venture between Fiat, now part of Stellantis, and the former PSA group (Peugeot/Citroën) dating back to 1978; the Atessa plant itself opened in 1981. Further badges have joined the same platform over the years, including the Ram ProMaster for North America, the Opel/Vauxhall Movano since 2022, and the Toyota Proace Max since 2023.

Within the Ducato range, a code made up of L and H letters distinguishes the body variants: L denotes the wheelbase or length class, from L1, shortest, to L4, extra-long, and H the roof height class, from H1, low, to H3, high. As a panel van, the Ducato is offered from the factory with three wheelbases — 3,000, 3,450 and 4,050 millimetres — combined with different roof heights, producing designations such as L1H1, L2H2 or L4H3. An L2H2, for example, is longer and taller than an L1H1 but shorter than an L4H3 — the letter combination mainly determines load volume and weight distribution, not the engine.

Fiat's smaller vans follow the same shared-platform logic. The Fiorino shares its engineering and body with the Citroën Nemo and Peugeot Bipper, built in Bursa, Turkey, by Tofaş. The Talento, sold from 2016 to 2020, was a technically near-identical Renault Trafic wearing a Fiat badge, while the Scudo generation sold since 2022 runs on the PSA EMP2 platform, making it a close relative of the Peugeot Expert, Citroën Jumpy, Opel Vivaro and Toyota Proace. The current Doblò, too, has not been a standalone Fiat design since around 2022 — it is a variant of the Citroën Berlingo, Peugeot Rifter, Opel Combo and Toyota Proace City, built among other places in Vigo, Spain.

For a used-vehicle buyer, that shared engineering is genuinely useful: parts, repair manuals and sometimes recall information can often be found under the twin Peugeot or Citroën model when little turns up for the Fiat itself, since the engine, brakes and much of the running gear are identical. When choosing a Ducato body, it is worth checking the L and H code on the type plate, because the same model name has been sold with very different load-space lengths, and not every seller states the L/H code correctly in a listing.

Sources: Wikipedia: Fiat Ducato (Sevel-Plattform, L/H-System), kfz-betrieb.de: PSA und FCA verlängern Nutzfahrzeug-Kooperation (Sevel), Wikipedia: Fiat Talento (Renault-Trafic-Basis), Wikipedia: Fiat Scudo (PSA-EMP2-Plattform), Wikipedia: Fiat Doblò (EMP2-Plattform, Produktionsstandorte), Wikipedia: Fiat Fiorino (Basis Citroën Nemo/Peugeot Bipper)

Technical data

Engine

Engine2.4 L Dieselcorrect
Fueldieselcorrect
Power133 kWcorrect
Cylinders4correct
Displacement2,442 cm³correct

Dimensions and weights

Length5,305 mmcorrect
Length5295–5305 mmcorrect
Width1,815 mmcorrect
Width1,815correct
Height1,775correct
Wheelbase3,000 mmcorrect
Unladen weight2,025 kgcorrect
Gross vehicle weight2,905 kgcorrect

Drivetrain and chassis

Gearbox6-speed manual gearbox; 5-speed automatic gearboxcorrect
Gears6correct
Wheels4correct
Top speed179 km/hcorrect

Origin and approval

Assembly plantsThailand: Laem Chabang (Mitsubishi Thailand)correct
Body2-door pickup; 4-door pickupcorrect
VersionFULLBACK CROSS 4X4correct
Number of versions5correct
Built from2017correct
Built to2019correct
First registered from2,017correct
First registered to2,019correct

Where this model stands

Power-to-weight ratio: 65.7 kW/t (133 kW / 2 t)

Stronger than 90% of the vans in the register — out of 7,595 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fiat FULLBACK have?

The Fiat FULLBACK delivers 133 kW.

How much does the Fiat FULLBACK weigh?

The unladen weight is 2,025 kg.

What is the gross vehicle weight of the Fiat FULLBACK?

2,905 kg.

What engine does the Fiat FULLBACK have?

4 cylinders, 2,442 cm³ displacement, DIESEL.

What are the dimensions of the Fiat FULLBACK?

5,305 mm × 1,815 mm.

When was the Fiat FULLBACK built?

Production years: 2016-2019.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
