Start › Wheel loaders › Fiat-Hitachi › W230

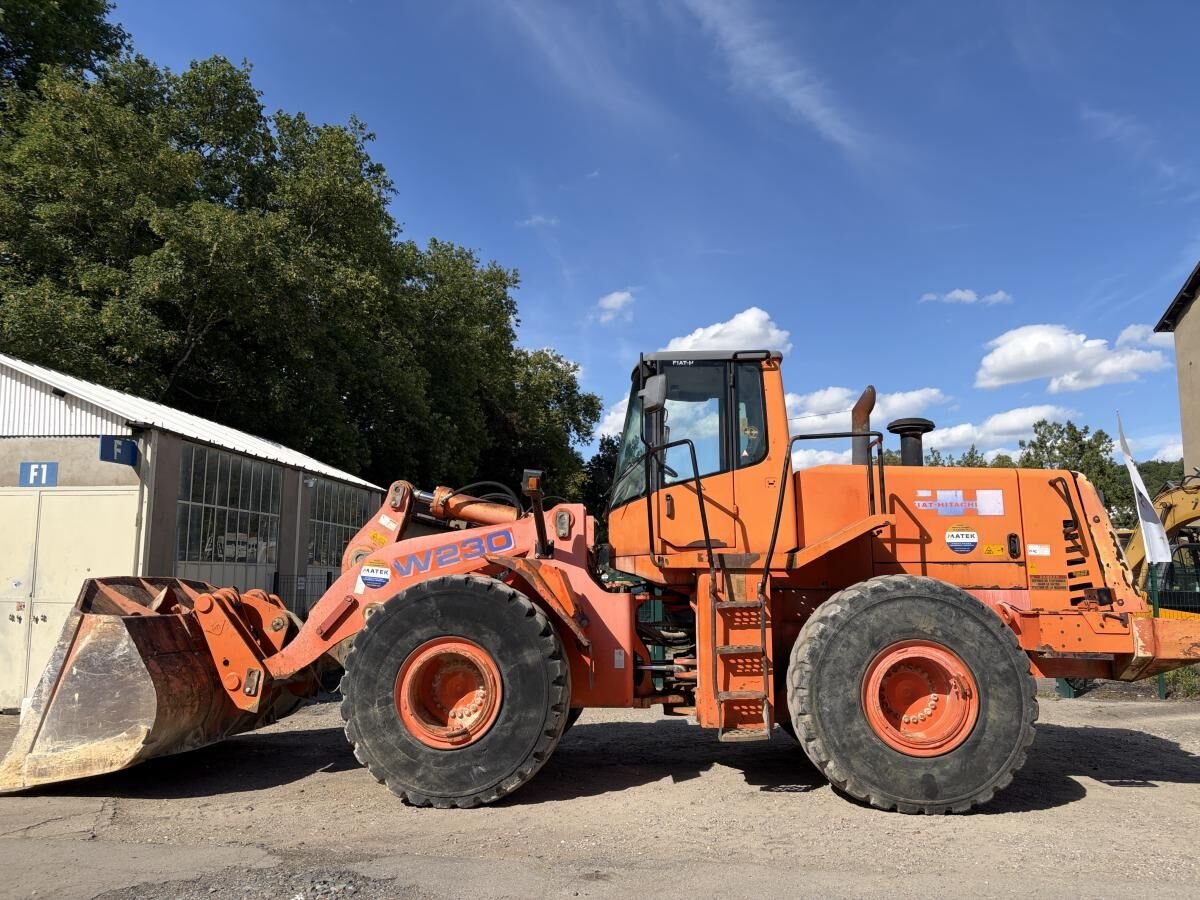

Fiat-Hitachi W230

Series: Fiat-Hitachi Wheel Loader

Source: https://www.truck1.eu/construction-machinery/wheel-loaders/f

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the W230, Fiat-Hitachi offers a model from the Fiat-Hitachi Wheel Loader series. The engine delivers 238.3 hp (167.8 kW), has 6 cylinders, with a displacement of 8,300 cm³. Torque is 970.1 Nm. Rated speed is 2,500 rpm. The unladen weight is 19,910 kg. The wheelbase measures 3,301 mm. Ground clearance is 417.6 mm. The tank holds 300.2 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 345.2 l/min. The hydraulic tank holds 160.1 litres. The cooling system holds 60.2 litres. The electrical system runs on 24 V. The engine fitted is the 6C7 8,3. Tyre size: 23,5 - 25 GP-2B. The Fiat-Hitachi Wheel Loader series covers 3 models. Rated output within it ranges from 109.5 to 238.3 hp; the W230 sits at the top of that range with 238.3 hp. Its immediate neighbours are the W170 below it with 184.5 hp. 13 Fiat-Hitachi models across 4 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine model	6C7 8.3correct
Power	238.3 hp (167.8 kW)correct
Rated speed	2,500 rpmcorrect
Torque	970.1correct
Speed at max. torque	1,500 rpmcorrect
Cylinders	6correct
Displacement	8,300 cm³correct
Aspiration	turbo + aftercooledcorrect
Coolant capacity	60.2 lcorrect

Dimensions and weights

Wheelbase	3,301correct
Ground clearance	417.6correct
Unladen weight	19,910 kgcorrect

Drivetrain and chassis

Gearbox type	Power-Shift Countershaftcorrect
Forward gears	4correct
Reverse gears	4correct
Tyre size	23.5 - 25 GP-2Bcorrect
System voltage	24 Vcorrect

Working data

Pump flow	345.2 l/mincorrect
Hydraulic oil capacity	160.1 lcorrect
Fuel tank capacity	300.2 lcorrect

Other data

Height	3,432correct

Where this model stands

Power-to-weight ratio: 8.4 kW/t (168 kW / 19.9 t)

Stronger than 79% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fiat-Hitachi W230 have?

The Fiat-Hitachi W230 delivers 238 hp.

How much does the Fiat-Hitachi W230 weigh?

The unladen weight is 19,910 kg.

What engine does the Fiat-Hitachi W230 have?

6 cylinders, 8,300 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
