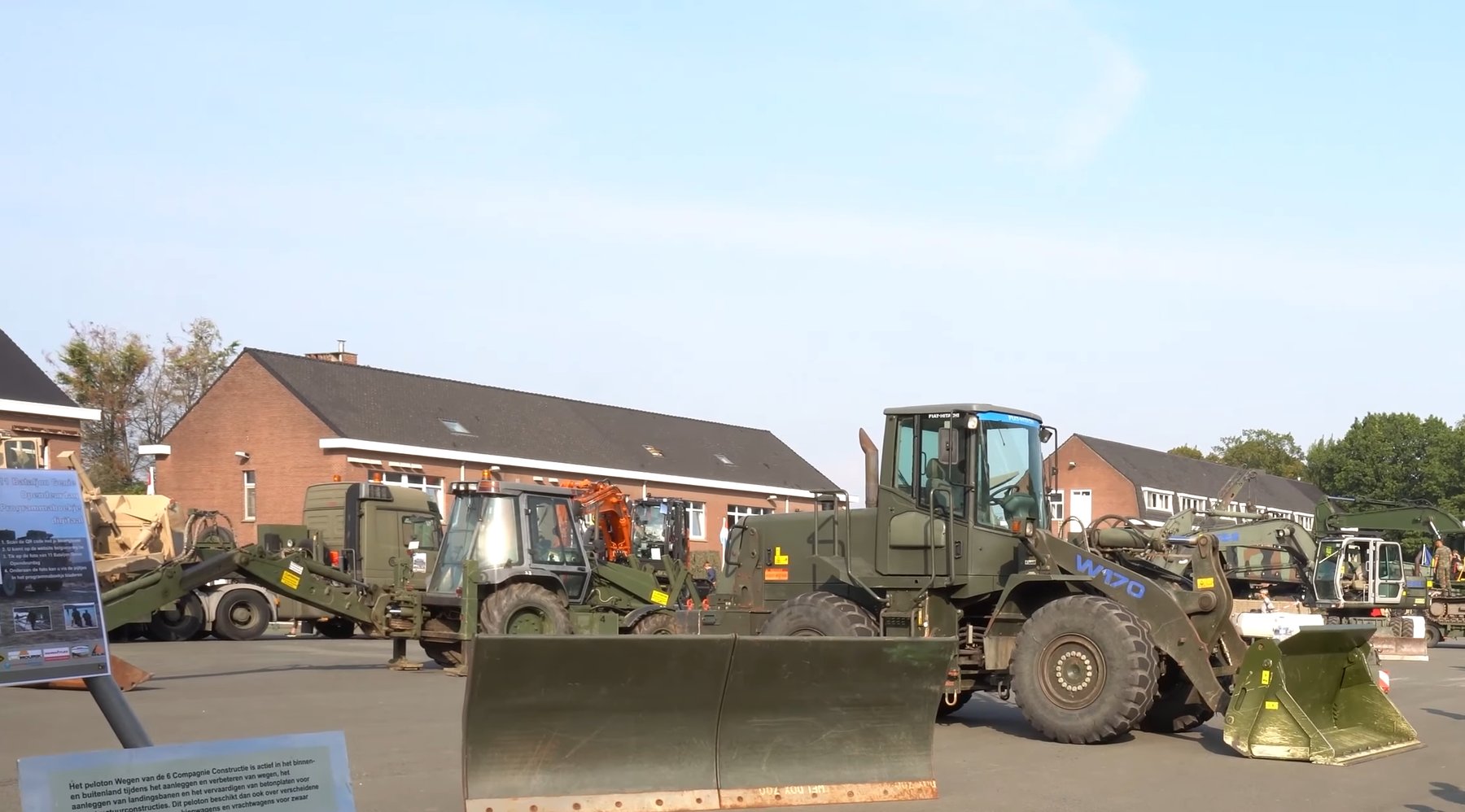

Fiat-Hitachi W170

Series: Fiat-Hitachi Wheel Loader

Source: https://commons.wikimedia.org/w/index.php?curid=175398014 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Fiat-Hitachi W170 is a model in the Fiat-Hitachi Wheel Loader series. The engine delivers 184.5 hp (126.8 kW), has 6 cylinders, with a displacement of 8,300 cm³. Torque is 696.1 Nm. Rated speed is 2,500 rpm. The unladen weight is 14,080 kg. The wheelbase measures 3,051 mm. Ground clearance is 396.2 mm. The tank holds 220.3 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 264.2 l/min. The hydraulic tank holds 150.3 litres. The cooling system holds 45 litres. The electrical system runs on 24 V. The engine fitted is the 6CT 8,3. Tyre size: 20,5 - 25 GP-2B. The Fiat-Hitachi Wheel Loader series covers 3 models. Rated output within it ranges from 109.5 to 238.3 hp; the W170 sits in the middle of that range with 184.5 hp. Its immediate neighbours are the FB110.2 below it with 109.5 hp and the W230 above it with 238.3 hp. 13 Fiat-Hitachi models across 4 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine model	6CT 8.3correct
Power	184.5 hp (126.8 kW)correct
Rated speed	2,500 rpmcorrect
Torque	696.1correct
Speed at max. torque	1,500 rpmcorrect
Cylinders	6correct
Displacement	8,300 cm³correct
Aspiration	turbochargedcorrect
Coolant capacity	45 lcorrect

Dimensions and weights

Wheelbase	3,051correct
Ground clearance	396.2correct
Unladen weight	14,080 kgcorrect

Drivetrain and chassis

Gearbox type	Power-Shift Countershaftcorrect
Forward gears	4correct
Reverse gears	4correct
Tyre size	20.5 - 25 GP-2Bcorrect
System voltage	24 Vcorrect

Working data

Pump flow	264.2 l/mincorrect
Hydraulic oil capacity	150.3 lcorrect
Fuel tank capacity	220.3 lcorrect

Other data

Height	3,301correct

Where this model stands

Power-to-weight ratio: 9 kW/t (127 kW / 14.1 t)

Stronger than 65% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fiat-Hitachi W170 have?

The Fiat-Hitachi W170 delivers 184 hp.

How much does the Fiat-Hitachi W170 weigh?

The unladen weight is 14,080 kg.

What engine does the Fiat-Hitachi W170 have?

6 cylinders, 8,300 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
