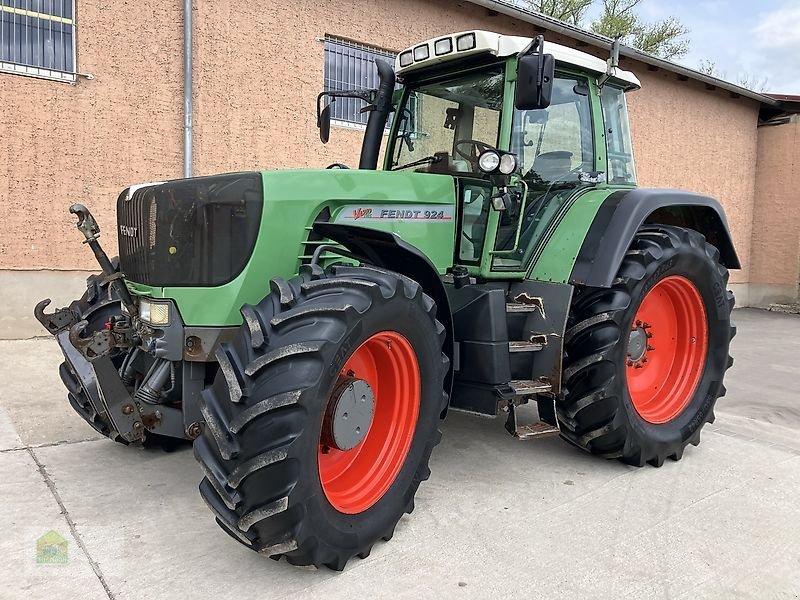

Fendt 924 4WD
Series: Other models
The Fendt 924 is a tractor from the Fendt 4WD Tractor series. Power comes from a six-cylinder engine; from 7.1 litres it draws 243 hp (201.3 kW). Rated speed is 2,200 rpm.
On the road, up to 50 km/h is possible. Length is 5.66 m. Empty, it weighs 10,080 kg.
Within the range, rated power spans from 65.3 to 500 hp; with 243 hp, the 924 sits in the upper third. Directly alongside are the 824 with 223 hp below and the 828 with 264 hp above.
Technical data
Engine
| Power | 243.3 hp (201.3 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,143.1 cm³correct |
| Aspiration | Turbocharger and intercoolercorrect |
Dimensions and weights
| Length | 5,655.1correct |
|---|---|
| Wheelbase | 3,050correct |
| Ground clearance | 480.1correct |
| Unladen weight | 10,080 kgcorrect |
Drivetrain and chassis
| Gearbox type | stepless Vario transmissioncorrect |
|---|---|
| Top speed | 49.9 km/hcorrect |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 160.1 l/mincorrect |
|---|---|
| Hydraulic pressure | 200correct |
| Fuel tank capacity | 600.4 lcorrect |
Other data
| Height | 3,322.3correct |
|---|
Where this model stands
Power-to-weight ratio: 20 kW/t (201 kW / 10.1 t)
Power class: Heavy (> 180 hp)
Stronger than 96% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt 924 have?
The Fendt 924 delivers 243 hp.
How much does the Fendt 924 weigh?
The unladen weight is 10,080 kg.
What engine does the Fendt 924 have?
6 cylinders, 7,143 cm³ displacement.
How fast does the Fendt 924 go?
Top speed is 49.9 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
