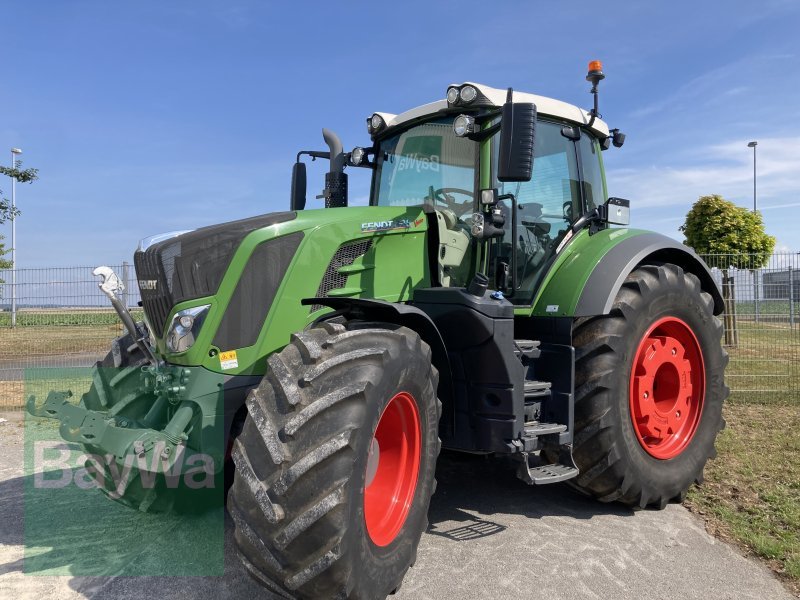

Fendt 828 4WD
Series: Other models
The Fendt 828 is a tractor from the Fendt 4WD Tractor series. The six-cylinder engine, displacing 6.1 litres, produces 264 hp (193.9 kW). Rated speed is 2,100 rpm.
Design speed is 50 km/h. It measures 5.27 m in length and 2.55 m in width. Unladen, it tips the scales at 9,450 kg.
Within the range, rated power spans from 65.3 to 500 hp; with 264 hp, the 828 sits in the upper third. Directly alongside are the 927 with 243 hp below and the 930 with 274 hp above.
Technical data
Engine
| Power | 263.6 hp (193.9 kW)correct |
|---|---|
| Rated speed | 2,100 rpmcorrect |
| Speed at max. torque | 1,900 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,063.2 cm³correct |
Dimensions and weights
| Length | 5,274.1correct |
|---|---|
| Width | 2,551.2correct |
| Wheelbase | 2,900.2correct |
| Ground clearance | 513.1correct |
| Unladen weight | 9,450 kgcorrect |
Drivetrain and chassis
| Gearbox type | Continuously variable Vario transmissioncorrect |
|---|---|
| Forward gears | 4correct |
| Reverse gears | 4correct |
| Top speed | 50.1 km/hcorrect |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 109.8 l/mincorrect |
|---|---|
| Fuel tank capacity | 505.4 lcorrect |
Where this model stands
Power-to-weight ratio: 20.5 kW/t (194 kW / 9.4 t)
Power class: Heavy (> 180 hp)
Stronger than 96% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt 828 have?
The Fendt 828 delivers 264 hp.
How much does the Fendt 828 weigh?
The unladen weight is 9,450 kg.
What engine does the Fendt 828 have?
6 cylinders, 6,063 cm³ displacement.
How fast does the Fendt 828 go?
Top speed is 50.1 km/h.
What are the dimensions of the Fendt 828?
5,274 mm × 2,551 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
