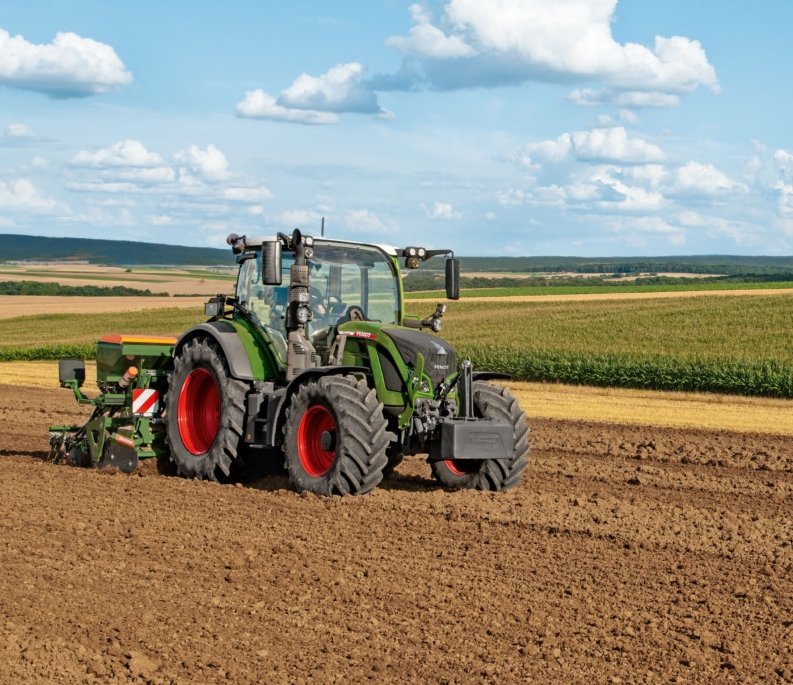

Fendt 513 4WD
Series: Other models
The Fendt 513 is a tractor from the Fendt 4WD Tractor series. Power comes from a four-cylinder engine; from 22.1 litres it draws 120 hp (99 kW). Rated power arrives at 1,900 rpm — the engine pulls from low down rather than needing to be revved.
It will not go faster than 40 km/h — a working pace, not a travelling one. It measures 4.45 m in length and 2.50 m in width. At 10,500 kg, it puts weight behind its pulling power — a good 88 kilograms per hp.
The engine is water-cooled. Within the range, rated power spans from 65.3 to 500 hp; with 120 hp, the 513 sits in the lower third. Directly alongside are the 411 with 116 hp below and the 312 Vario with 125 hp above.
Technical data
Engine
| Power | 119.7 hp (99 kW)correct |
|---|---|
| Rated speed | 1,900 rpmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 22,057 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,453.1correct |
|---|---|
| Width | 2,502.4correct |
| Wheelbase | 2,560.1correct |
| Ground clearance | 545.1correct |
| Unladen weight | 10,500 kgcorrect |
Drivetrain and chassis
| Top speed | 40.1 km/hcorrect |
|---|---|
| System voltage | 14.4 Vcorrect |
Working data
| Pump flow | 109.8 l/mincorrect |
|---|---|
| Fuel tank capacity | 298.3 lcorrect |
Other data
| Height | 2,932.2correct |
|---|
Where this model stands
Power-to-weight ratio: 9.4 kW/t (99 kW / 10.5 t)
Power class: Large (100–180 hp)
Stronger than 80% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt 513 have?
The Fendt 513 delivers 120 hp.
How much does the Fendt 513 weigh?
The unladen weight is 10,500 kg.
What engine does the Fendt 513 have?
4 cylinders, 22,057 cm³ displacement.
How fast does the Fendt 513 go?
Top speed is 40.1 km/h.
What are the dimensions of the Fendt 513?
4,453 mm × 2,502 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
