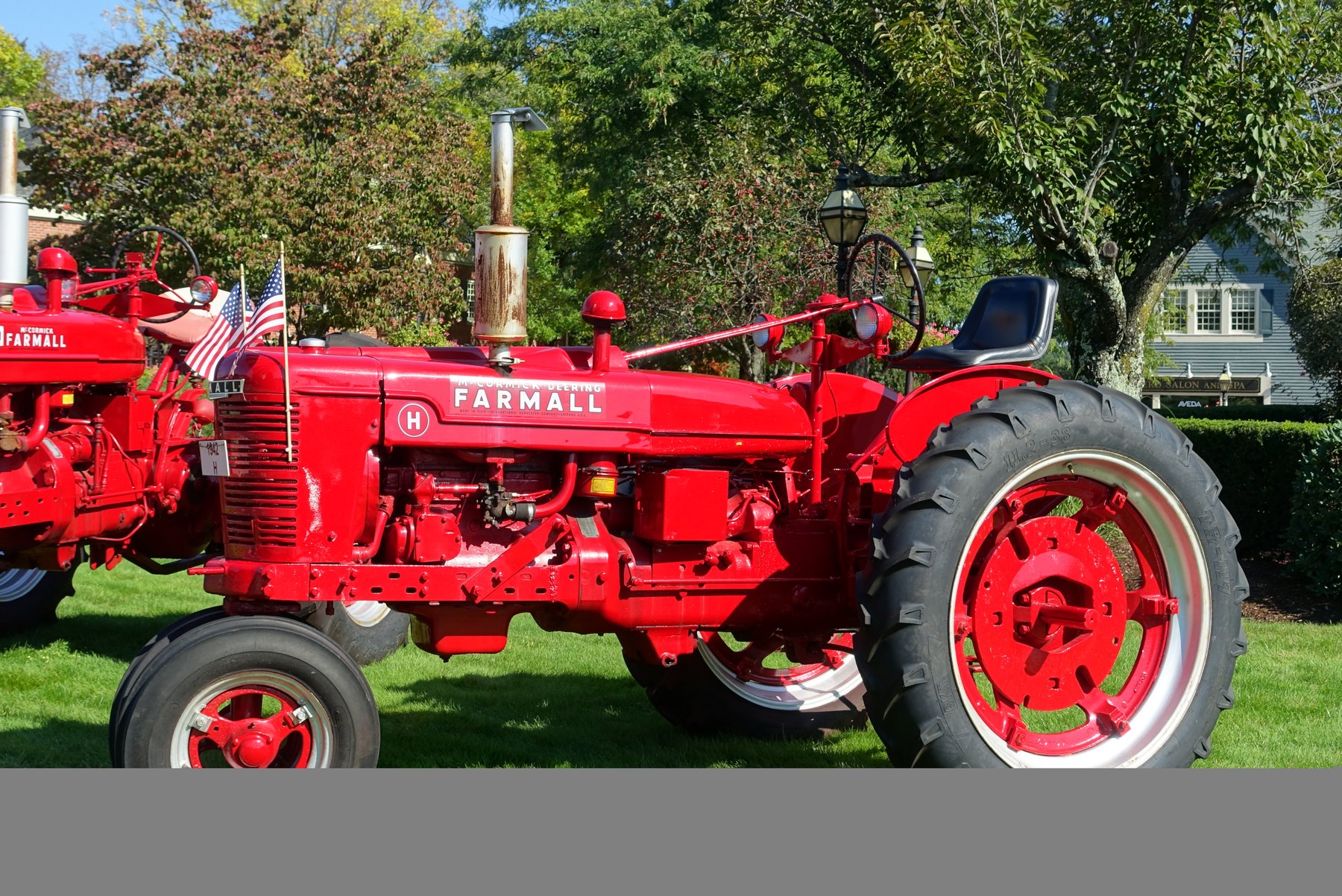

Farmall McCormick-Deering Farmall MV
Built: 1942-1952 · Series: McCormick-Deering Farmall
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Farmall McCormick-Deering Farmall MV is a tractor from the McCormick-Deering Farmall series, built in 1942-1952. It runs on a four-cylinder engine. Rated speed is 1,450 rpm.
Power is transmitted through a sliding gear gearbox, drive type: 2-WD.
It runs on petrol; the engine is water-cooled. As standard, it runs on 7.50-20 4-ply tyres at the front and 13.6-38 6-ply at the rear. This model followed the McCormick-Deering Farmall F-30 Cane Tractor, before the McCormick Farmall Super MV took over.
Technical data
Engine
| Engine make | Internationalcorrect |
|---|---|
| Engine model | C-248correct |
| Fuel | petrolcorrect |
| Power | 36 belt, 33 drawbar hpcorrect |
| Rated speed | 1,450 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 248 cicorrect |
| Bore | 3,875 in (98 425 mm)correct |
| Stroke | 5.25 in (133,3 mm)correct |
| Naturally aspirated | naturally aspiratedcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 147 in (3733,8 mm)correct |
|---|---|
| Width | 86 in (2184,4 mm)correct |
| Height | 90 in (2 286 mm)correct |
| Wheelbase | 92 in (2336,8 mm)correct |
| Turning circle | 25 ftcorrect |
| Unladen weight | 5,505 lbcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | sliding-gear transmissioncorrect |
| Gearbox make | Internationalcorrect |
| Forward gears | 5correct |
| Reverse gears | 1correct |
| Front tyres | 7.50-20 4-plycorrect |
| Rear tyres | 13.6-38 6-plycorrect |
Working data
| Fuel tank capacity | 22 galcorrect |
|---|---|
| Linkage category | drawbarcorrect |
Origin and approval
| Plant | Tractor Works, Chicago, Illinois, USAcorrect |
|---|---|
| Predecessor | McCormick-Deering Farmall F-30 Cane Tractorcorrect |
| Successor | McCormick Farmall Super MVcorrect |
Frequently asked questions
What engine does the Farmall McCormick-Deering Farmall MV have?
4 cylinders, gasoline.
When was the Farmall McCormick-Deering Farmall MV built?
Production years: 1942-1952.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 33 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
