EMT Y2E 225M2

Series: Y2E

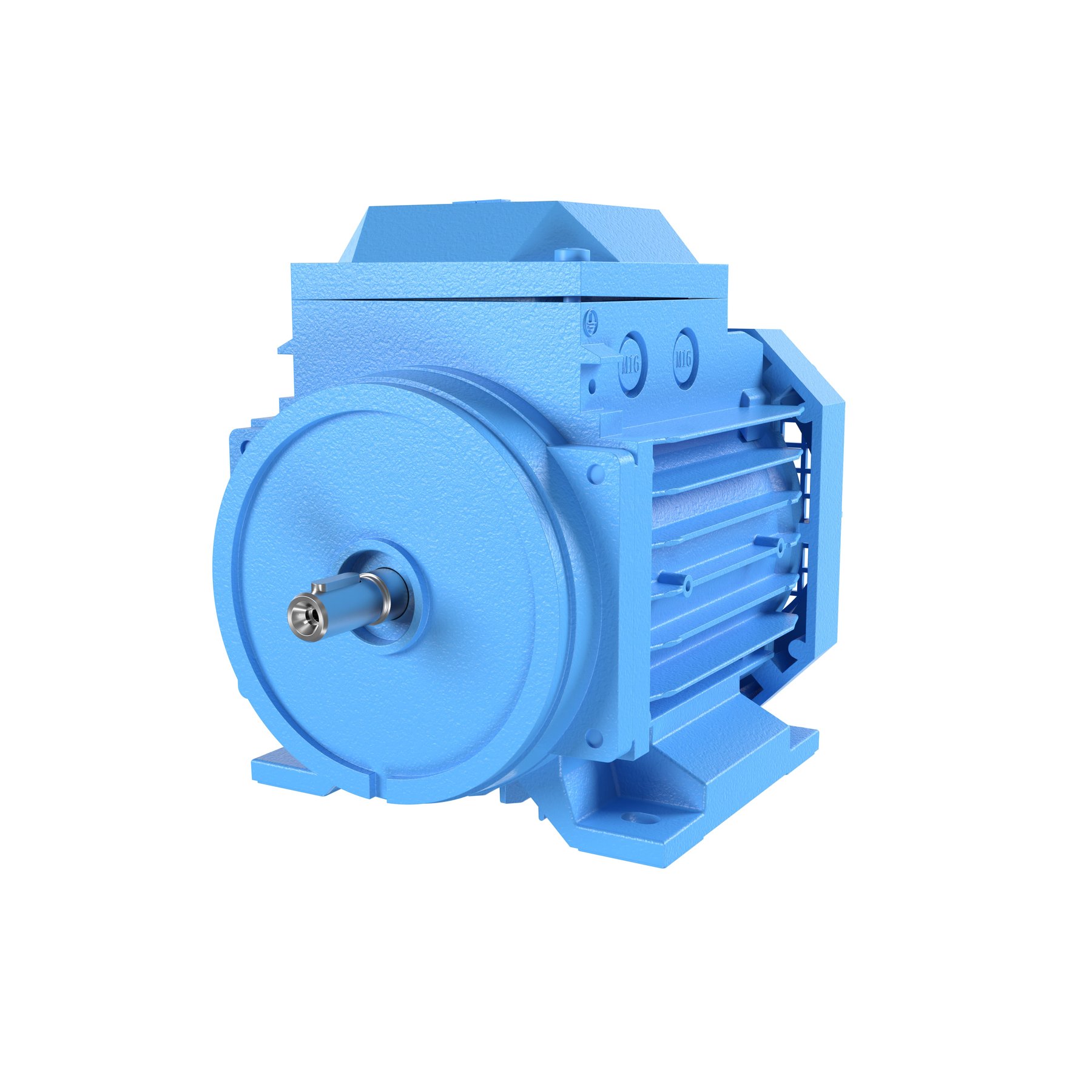

The photo shows the Y2E 250M2 from the same series. Source: https://www.abb.com/global/en/products/3gaa061311-adf

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The EMT Y2E 225M2 is a three-phase induction motor. The rated output is 45 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The housing is frame size 225 M in foot-mounted form. The protection class is IP55 and IP56. The efficiency is 93 per cent at full load, 93.2 per cent at 75 per cent load and 92.5 per cent at half load. The motor weighs 302 kg. At full load it delivers 145.1 Nm. Mounting arrangements to IEC 60034-7: B3, B5, B14, B34, B35, V1, V3 and V5. The motor is built in China. The data is based on the Australian MEPS registration under the GEMS Determination 2019; measured to IEC 61972. Rated output across the EMT range ranges from 0.75 to 160 kW; the Y2E 225M2 sits in the lower part of that range with 45 kW. Its immediate neighbours are the Y2E225S4 below it with 37 kW and the Y2-250M2 above it with 55 kW. 274 EMT models are on record. The model is listed under Electric motors. 23 verified figures from 1 source are on file.

EMT Y2E – register of three-phase motors on the Chinese Y2 platform: 29 versions, 0.75 to 132 kW, 2- to 6-pole, IP55 and IP56 protection, frame sizes 90 to 315, made in China

The Y2E range at EMT covers three-phase motors on the Y2 platform common in China, where the model name combines frame size and pole count in a single digit string, for example Y2E 200L4 for the four-pole version of frame size 200L or Y2E 315L6 for the six-pole 315L version.

Read on 3 more paragraphs

The register lists here 29 versions with 0.75 to 132 kW, two- to six-pole. Full-load efficiencies range from 80 to 95.75% and at 75% load from 79.9 to 95.89%. Frame sizes run from 90 to 315 under IEC, all motors carry protection ratings IP55 and IP56; manufacturing is exclusively in China, tested partly to AS/NZS 1359.5:2004 and partly to the GEMS determinations of 2012 and 2019, with test methods A and B. Three of the 29 versions reach the High Efficiency Level 2005 classification, the rest without a separate classification.

With a power band from under a kilowatt to 132 kW, Y2E covers the standard range of Chinese normed motors for pumps, fans, compressors and conveyors, which numerous Chinese manufacturers offer in parallel under their own brand names.

When buying used, what matters is bearing condition and a checked insulation resistance of the winding, visible overheating marks on the terminal box and fan cover, the condition of shaft and key, and a legible nameplate with frame size, pole count and protection rating; anyone needing a higher efficiency class should check the individual version's High Efficiency classification. Spares are usually available independent of manufacturer thanks to the widely used Y2 frame size.

Sources: Kennwerte der Modelle EMT Y2E

Technical data

Engine

Rated output45 kWcorrect

Dimensions and weights

Weight302 kgcorrect

Electrical data

Rated voltage380/400 Vcorrect
Number of poles2correct
Protection classIP55, IP56correct
Frame size225 M (foot)correct
Mounting (IEC 60034-7)B3, B5, B14, B34, B35, V1, V3, V5correct
Efficiency at full load92.98 %correct
Efficiency at 75 % load93.21 %correct
Efficiency at half load92.53 %correct

Origin and approval

Country of manufactureChinacorrect

Other data

Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 61972correct

Frequently asked questions

How much power does the EMT Y2E 225M2 have?

The EMT Y2E 225M2 delivers 45 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
