EMT Y2AE 90L6

Series: Y2AE

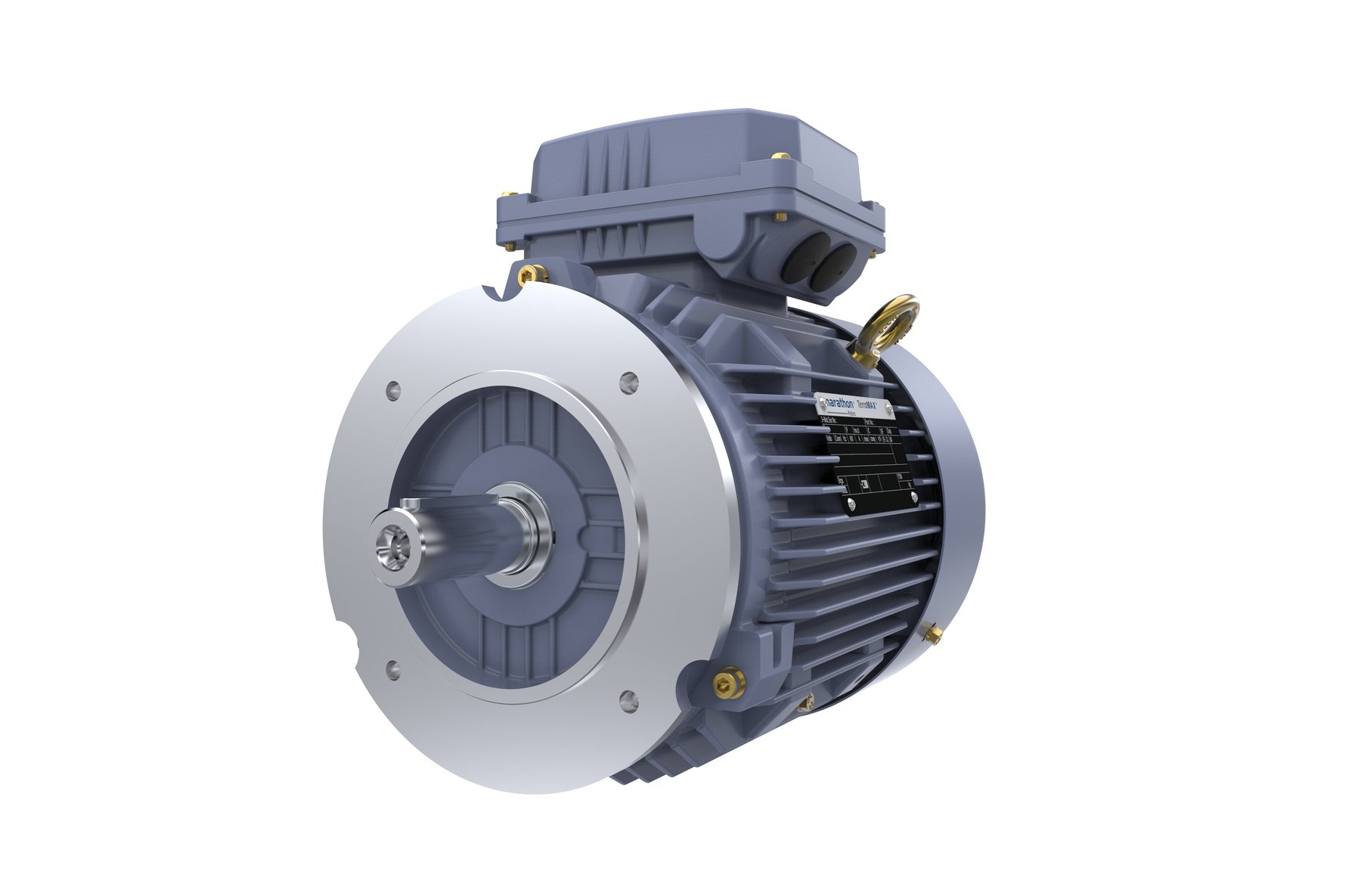

The photo shows the Y2AE 90S6 from the same series. Source: https://www.marathonelectric.in/category/low-voltage-iec-mot

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The EMT Y2AE 90L6 is a three-phase induction motor. The rated output is 1.1 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The rated voltage is 400 V. The housing is frame size 90 L in foot-mounted form. The protection class is IP55 and IP56. The efficiency is 79.9 per cent at full load, 78.7 per cent at 75 per cent load and 74.8 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B14, B34, B35, V1, V3 and V5. The motor is built in China. The data is based on the Australian MEPS registration under the GEMS Determination 2019; measured to IEC 61972. Rated output across the EMT range ranges from 0.75 to 160 kW; the Y2AE 90L6 sits at the bottom of that range with 1.1 kW. Its immediate neighbours are the Y2E 90S6 below it with 0.75 kW and the e-Drive AHE 100L6 above it with 1.5 kW. 274 EMT models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output1.1 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles6correct
Protection classIP55, IP56correct
Frame size90 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B14, B34, B35, V1, V3, V5correct
Efficiency at full load79.9 %correct
Efficiency at 75 % load78.7 %correct
Efficiency at half load74.8 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 61972correct

Frequently asked questions

How much power does the EMT Y2AE 90L6 have?

The EMT Y2AE 90L6 delivers 1.1 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
