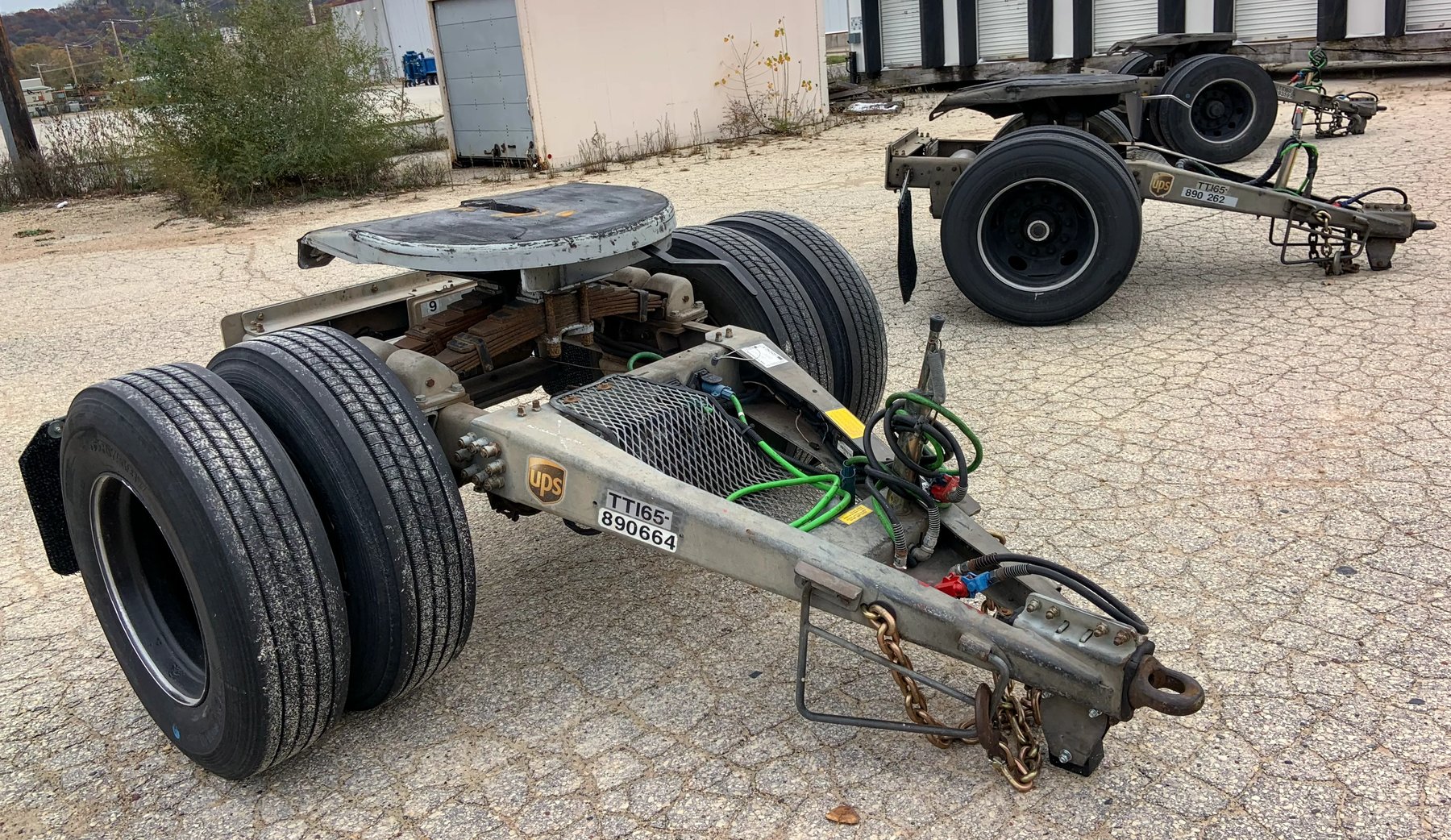

Elenbaas DOLLY D18
Built: 2023-2025 · Series: Other models
More machines from model year 2023
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Elenbaas – other models: trailers and semi-trailers outside the named ranges, three-axle semi-trailer at 43 t, Dolly and TKS types, unladen weight 720 to 11,740 kg
This page gathers the trailers and semi-trailers listed in the vehicle register under the name Elenbaas that could not be assigned to a named range. The model list runs from the three-axle semi-trailer, entered in the Dutch registration data literally as 3 assige oplegger, through the Dolly D18 – a converter axle unit that turns a semi-trailer into a trailer towable by a rigid truck without a fifth wheel – to the TKS types with suffixes such as 1TRI ZW and ITRI2W and the ZPRAH and ZTKA ranges.
Read on 3 more paragraphs
The register lists here 15 versions with unladen weights from 720 to 11,740 kg, gross weights from 1,300 to 43,000 kg, lengths from 5,860 to 14,030 mm and widths from 1,800 to 2,600 mm.
The span thus runs from light class-O2 trailers to a heavy three-axle class-O4 semi-trailer, as used in combined transport and general long-haul transport of parcels, containers or swap bodies; the dolly extends the range with the option of running a semi-trailer as a drawbar combination without a fifth-wheel tractor.
When buying used, light trailers call for checking the drawbar, overrun brake device and brake linkage, the semi-trailer for checking axles, brakes, air suspension, kingpin and fifth-wheel plate, and the dolly additionally for the coupling, tow eye and condition of the converter axle; rust on the frame and underrun guard should be checked on all types.
Sources: SpecCodex register, model data: Elenbaas (weitere Modelle), Zulassungsdaten RDW (Niederlande)
Technical data
Dimensions and weights
| Length | 5,860 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Wheelbase | 4,990 mmcorrect |
| Unladen weight | 2,790 kgcorrect |
| Gross vehicle weight | 19,000 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Elenbaas DOLLY D18 weigh?
The unladen weight is 2,790 kg.
What is the gross vehicle weight of the Elenbaas DOLLY D18?
19,000 kg.
Up to what speed is the Elenbaas DOLLY D18 approved?
Approved up to 100 km/h.
What are the dimensions of the Elenbaas DOLLY D18?
5,860 mm × 2,500 mm.
When was the Elenbaas DOLLY D18 built?
Production years: 2023-2025.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
