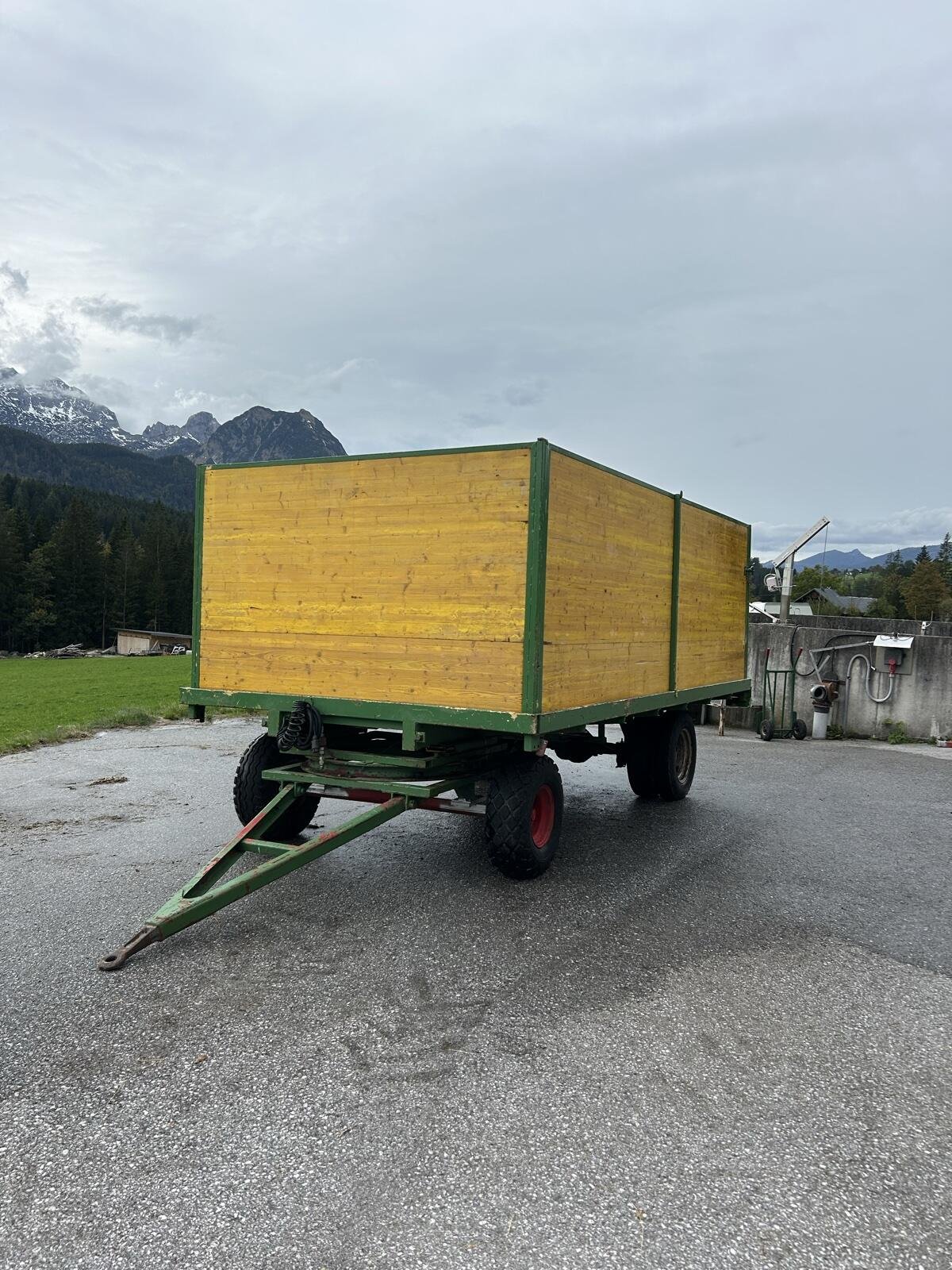

Self-build (Eigenbouw) AHW 16
Built: 1976-1994 · Series: AHW
More machines from model year 1976
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Eigenbouw AHW – self-built heavy trailers from the Dutch RDW register: AHW as abbreviation for aanhangwagen, the numbers as axle loads in tonnes (AHW 10-10, AHW 6-6)
Eigenbouw is Dutch for “self-build” and not a manufacturer but the entry of the registration authority RDW for trailers that a business or keeper built themselves and registered through an individual inspection. AHW is the abbreviation customary in the Dutch registration certificate for aanhangwagen, the drawbar trailer – as opposed to oplegger, the semi-trailer. The numbers after it give the axle loads or axle groups in tonnes: AHW 10-10 is a two-axle trailer with ten tonnes each, AHW 6-6 one with six each, AHW 10L-18L denotes air-suspended axles (L for luchtvering), AHW 3-3 and AHW 4-4 the light turntable trailers of agriculture. Behind them are chassis that farmers, contractors, showmen and hauliers assembled from bought-in axles, brakes and frame sections or converted from old series trailers; the RDW checks braking system, lighting, dimensions and axle loads, the design remains the builder's affair.
Read on 3 more paragraphs
The register lists 31 versions with kerb weights from 2,160 to 24,120 kg, gross weights from 3,500 to 28,000 kg, lengths up to 14,690 mm and widths from 2,050 to 2,900 mm.
These trailers run in the Netherlands behind tractors, trucks and the showmen's tractor units: bale and beet wagons, machinery transporters, fairground and living wagons that, once approved, stay in the fleet for decades.
Anyone taking over such a trailer checks the registration certificate with registered axle loads and inspection deadlines, frame and welds, turntable or drawbar, axles, suspension and braking system, lighting and tyres; wear parts usually come from BPW, SAF or Knott.
Sources: SpecCodex register, model data: Eigenbouw AHW, Zulassungsdaten RDW (Niederlande), Herstellerfeld eigenbouw, RDW (niederländische Zulassungsbehörde)
Technical data
Dimensions and weights
| Length | 11,080 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 7,380 mmcorrect |
| Unladen weight | 10,400 kgcorrect |
| Gross vehicle weight | 16,480 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Eigenbouw AHW 16 weigh?
The unladen weight is 10,400 kg.
What is the gross vehicle weight of the Eigenbouw AHW 16?
16,480 kg.
Up to what speed is the Eigenbouw AHW 16 approved?
Approved up to 100 km/h.
What are the dimensions of the Eigenbouw AHW 16?
11,080 mm × 2,550 mm.
When was the Eigenbouw AHW 16 built?
Production years: 1976-1994.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: RDW — Dutch national vehicle register (retrieved August 2026) · How we check the data
