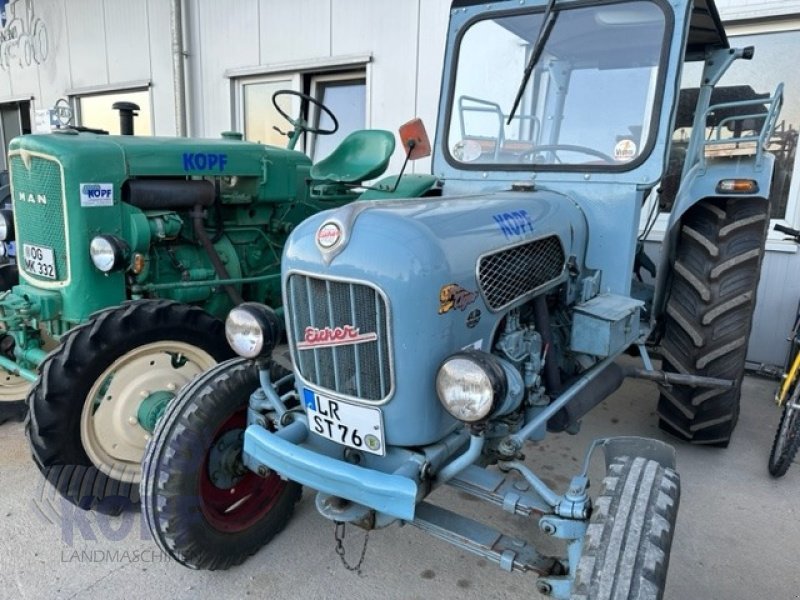

Eicher EM 300 Königstiger
Built: 1959–1968 · Series: EM //Raubtierserie
More machines from model year 1959
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Eicher EM 300 Königstiger (Raubtierserie, EM, 1959–1968): air-cooled three-cylinder diesel with 2,944 cm³, 25.6 kW and a 1,410 mm overall height
In the Raubtierserie of the EM range too, Eicher used the name Königstiger, here for a version fitted with three cylinders. The EM 300 Königstiger was built from 1959 to 1968. Such three-cylinder versions of the Raubtierserie targeted farms that needed more power than the small two-cylinder models but not yet a large-displacement six-cylinder.
Read on 3 more paragraphs
The Eicher EM 300 Königstiger carries an air-cooled three-cylinder diesel engine with 2,944 cm³ of displacement, producing 35 hp, or 25.6 kW, at 2,000 rpm. At 1,810 kg, 3,244 mm long, 1,410 mm high, 1,502 mm wide and with a 2,050 mm wheelbase, the machine reaches a top speed of 18.2 km/h.
At 25.6 kW from an air-cooled three-cylinder engine and an overall height of just 1,410 mm, the EM 300 Königstiger ranks among the low-built versions of the Raubtierserie and was intended for field work on smaller to medium farms. The low build height made it easier to work under low barn roofs and in tight sheds. This compact build height did not come at the cost of ground clearance, which remained adequate for work on uneven terrain.
When buying an air-cooled Eicher three-cylinder engine of this age used, the condition of the cooling fan and cooling fins matters, as these are often dirty or damaged after decades. Also worth checking are the injection pump, the condition of the clutch, and corrosion damage to the frame and sheet-metal parts, widespread on tractors of this age.
Sources: SpecCodex-Register: Kennwerte des Modells Eicher EM 300 Königstiger, Eicher (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 35 hp (25.6 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,944 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,244 mmcorrect |
|---|---|
| Width | 1,502 mmcorrect |
| Height | 1,410 mmcorrect |
| Wheelbase | 2,050 mmcorrect |
| Ground clearance | 390 mmcorrect |
| Unladen weight | 1,810 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8/4-Getriebecorrect |
| Forward gears | 8correct |
| Reverse gears | 4correct |
| Front tyres | 6.00-16correct |
| Rear tyres | 9-36, 11-32correct |
| Top speed | 18.2 km/hcorrect |
Working data
| Fuel tank capacity | 38 lcorrect |
|---|
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | 19,422correct |
Where this model stands
Power-to-weight ratio: 14.1 kW/t (26 kW / 1.8 t)
Power class: Compact (< 40 hp)
Stronger than 20% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Eicher EM 300 Königstiger have?
The Eicher EM 300 Königstiger delivers 35 hp.
How much does the Eicher EM 300 Königstiger weigh?
The unladen weight is 1,810 kg.
What engine does the Eicher EM 300 Königstiger have?
3 cylinders, 2,944 cm³ displacement, Diesel.
How fast does the Eicher EM 300 Königstiger go?
Top speed is 18.2 km/h.
What are the dimensions of the Eicher EM 300 Königstiger?
3,244 mm × 1,502 mm × 1,410 mm.
When was the Eicher EM 300 Königstiger built?
Production years: 1959–1968.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
