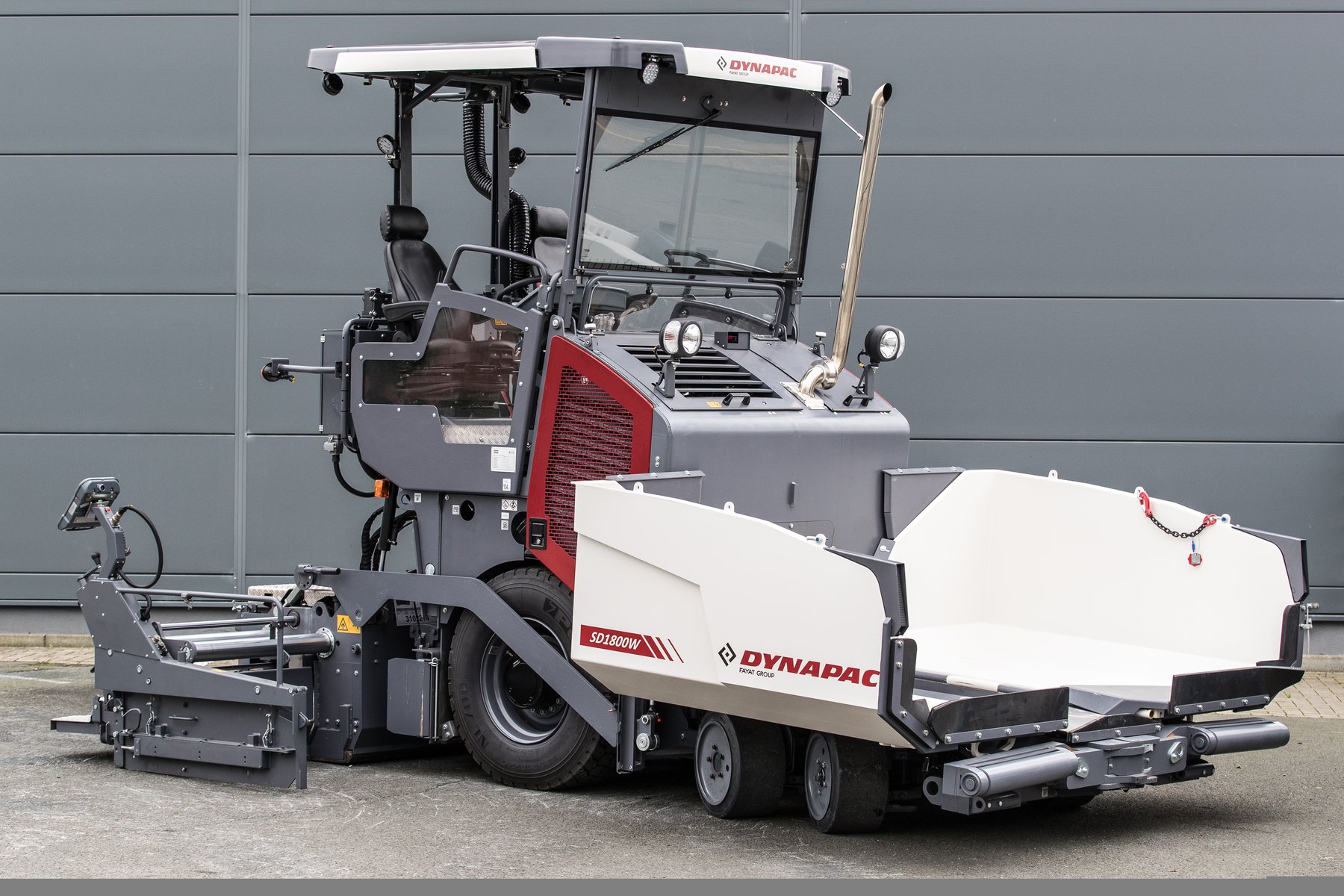

Dynapac SD1800W

Series: Dynapac Asphalt Paver

Source: https://commons.wikimedia.org/w/index.php?curid=68072815

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Dynapac SD1800W is a model in the Dynapac Asphalt Paver series. The engine delivers 73.5 hp (54.1 kW), has 4 cylinders, with a displacement of 2,900.5 cm³. The engine comes from Deutz. Rated speed is 2,200 rpm. The wheelbase measures 1,600.2 mm. Ground clearance is 105.2 mm. The tank holds 73.1 litres. The electrical system runs on 24 V. The Dynapac Asphalt Paver series covers 26 models. Rated output within it ranges from 38.5 to 263.8 hp; the SD1800W sits in the lower part of that range with 73.5 hp. Its immediate neighbours are the F1200CS below it with 73 hp and the FC1600C above it with 100.4 hp. 206 Dynapac models across 7 series are on record. The model is listed under Road construction. 11 verified figures from 1 source are on file.

Technical data

Engine

Engine makeDeutzcorrect
Power73.5 hp (54.1 kW)correct
Rated speed2,200 rpmcorrect
Cylinders4correct
Displacement2,900.5 cm³correct

Dimensions and weights

Length5,020.1correct
Wheelbase1,600.2correct
Ground clearance105.2correct

Drivetrain and chassis

System voltage24 Vcorrect

Working data

Fuel tank capacity73.1 lcorrect

Frequently asked questions

How much power does the Dynapac SD1800W have?

The Dynapac SD1800W delivers 73.5 hp.

What engine does the Dynapac SD1800W have?

4 cylinders, 2,900 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
